Assembly
To Tractor Battery
DICKEY-john® Monitor
Installation

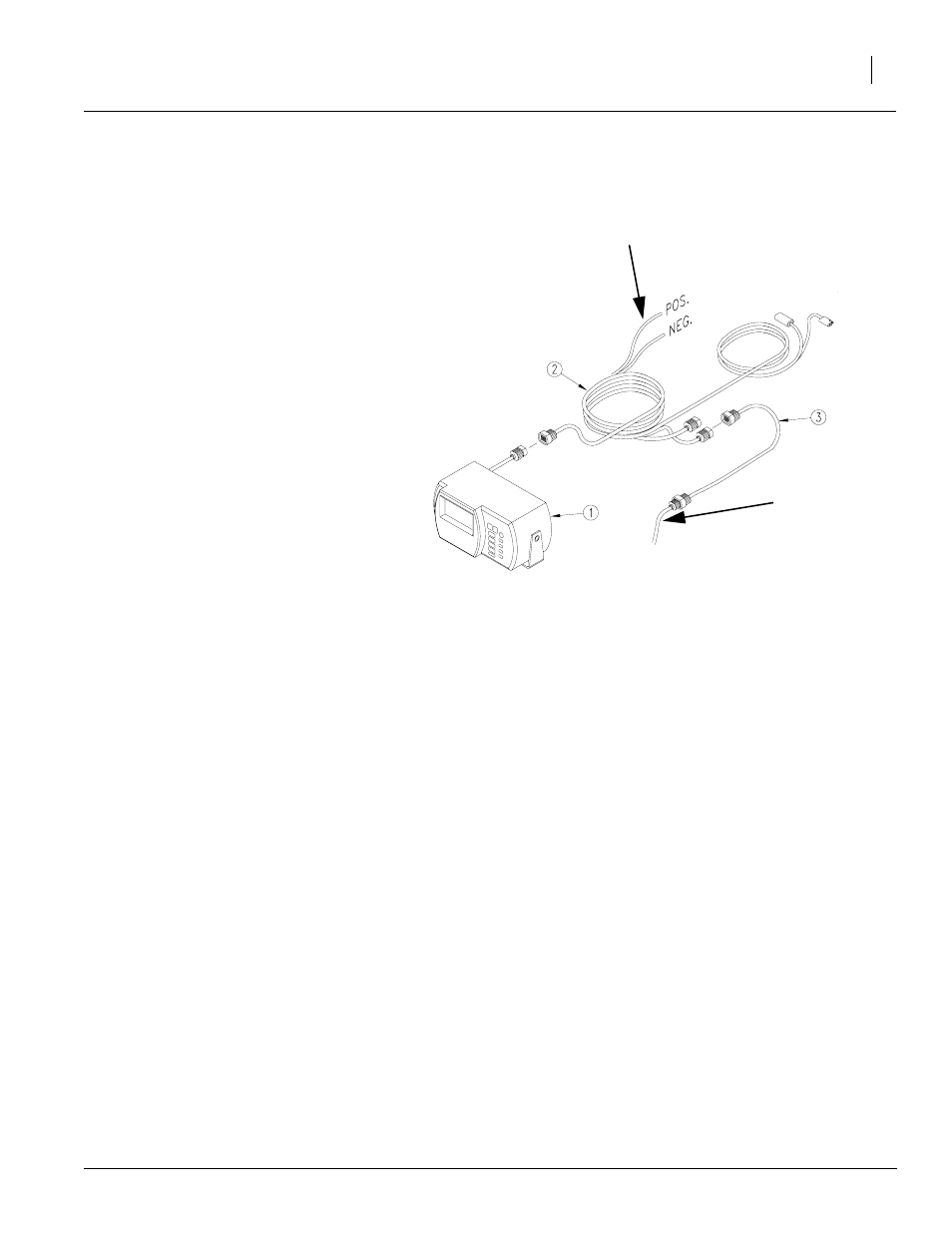

Refer to Figure 20
1.
If not done, attach DICKEY-john® moni-
tor console (1) to primary wire harness
(2).
2.
Connect lead in right-hand pullbar (3) to
primary wire harness (2).
NOTE: Optional 82 bu. and 150 bu. hop-
pers are equipped with an extra bin level
sensor. Place this sensor at the
level that suits your operation.
To use extra bin level sensor,
disconnect sensor in manifold
and attach lead to extra sensor.
WHEN REMOVING HOPPER, BE
SURE TO DISCONNECT SEN-
SOR IN HOPPER FROM HAR-
NESS BEFORE REMOVING
HOPPER.
3.
Attach power leads from pri-
mary harness (2) to tractor’s
battery.
Figure 20
DJ Monitor
25014
To Planter
