Power Beyond Adaptors & Couplers

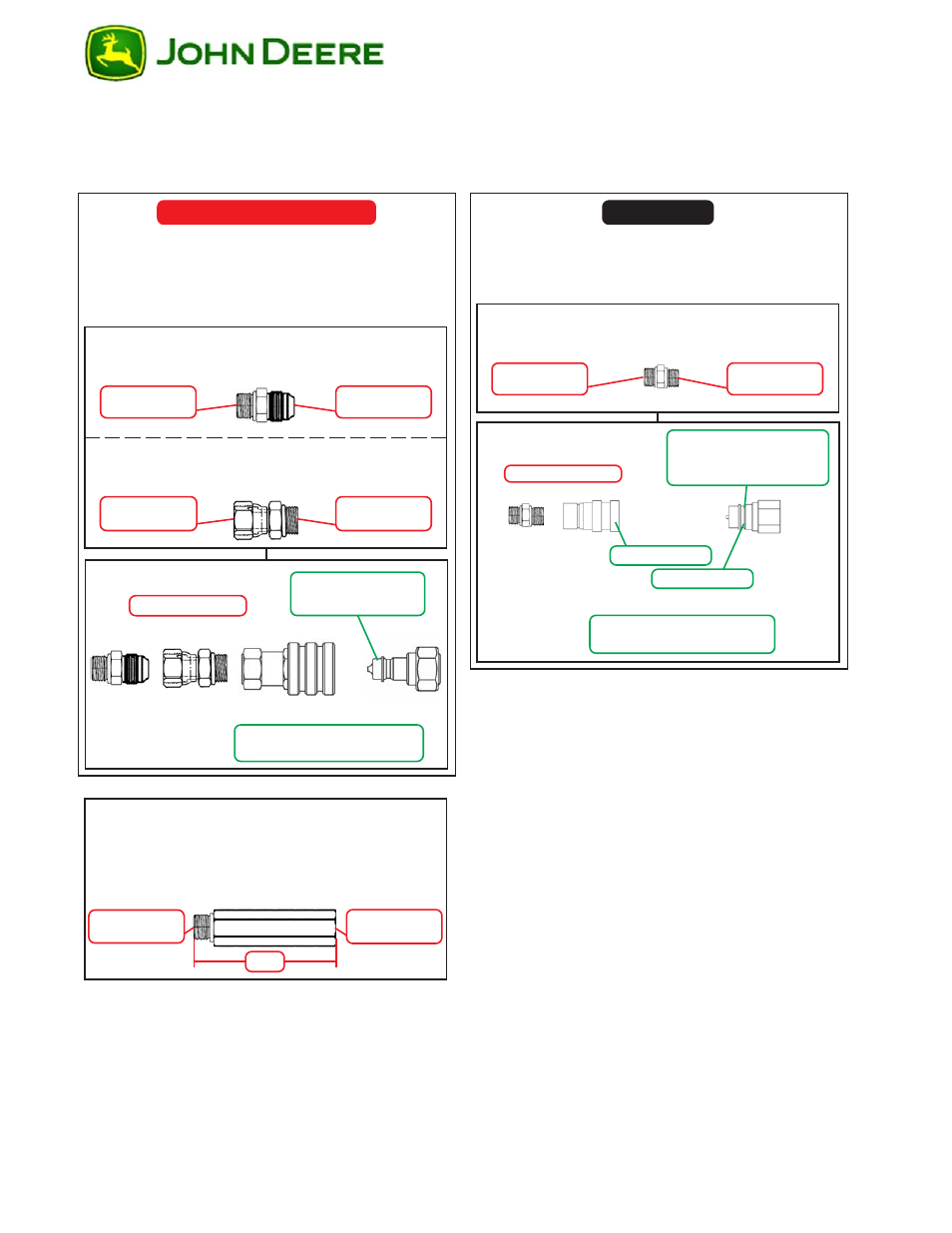

The parts shown for case drain, motor return, power beyond pressure, and load sense apply
to all John Deere tractors listed in this guide.
1-1/16-12
FJIC
1-1/16-12
MORB
Load Sense
If the tractor is not equipped with 1/4” body
size female load sense coupler, then order
and install the following parts:
Eaton Aeroquip P/N GG108-NP12-22
Parker P/N 12M22F8OMXS
Eaton Aeroquip P/N 2266-12-12
Parker P/N 12F65OMXS
connected to fan
motor return hose
from Great Plains
M22 x 1.5
MORB
1-1/16-12
MJIC
}
supplied from Great Plains
(p/n 811-069C for pair)
}
connect to tractor
Power Beyond Pressure
If the tractor is not equipped with a 3/4” body
size, ISO 7241-1 Series A, female power
beyond pressure coupler, then order and
install the following parts:
Eaton Aeroquip P/N GG108-NP-06-14
Parker P/N 6M14F8OMXS
load sense coupler
connected to load sense
hose from Great Plains
}
connect to tractor
M14 x 1.5
MORB
9/16-18
MORB
}
supplied from Great Plains
(p/n 841-457C for pair)
p/n 841-467C
p/n 841-466C
John Deere P/N RE248312
M22 x 1.5
MORB
M22 x 1.5
FORB
5.7”
NOTE: Can use John Deere P/N RE248312 to
extend power beyond pressure coupler out from
rear of tractor if needed.
IMPORTANT: Tractor must be turned off before
connecting power beyond pressure and load
sense lines.
