4 Simba X-Press
601-338P
2013-09-20
Parts
Using This Manual
This manual is divided into sections. The
first section contains General Information,
a Table of Contents and an Alphabetical
Page Index. The remaining sections divide
the machine into segments (i.e. Frames,
Hydraulics, etc.) which illustrate and list all
parts.
The Great Plains parts in this manual are
specially designed for this machine and
should be replaced with Great Plains parts
only.
The information in this manual is current
at printing. Some parts may change to
assure top performance.
Right-hand and left-hand as used in this
manual are determined by facing the
direction the machine will travel while in
use.

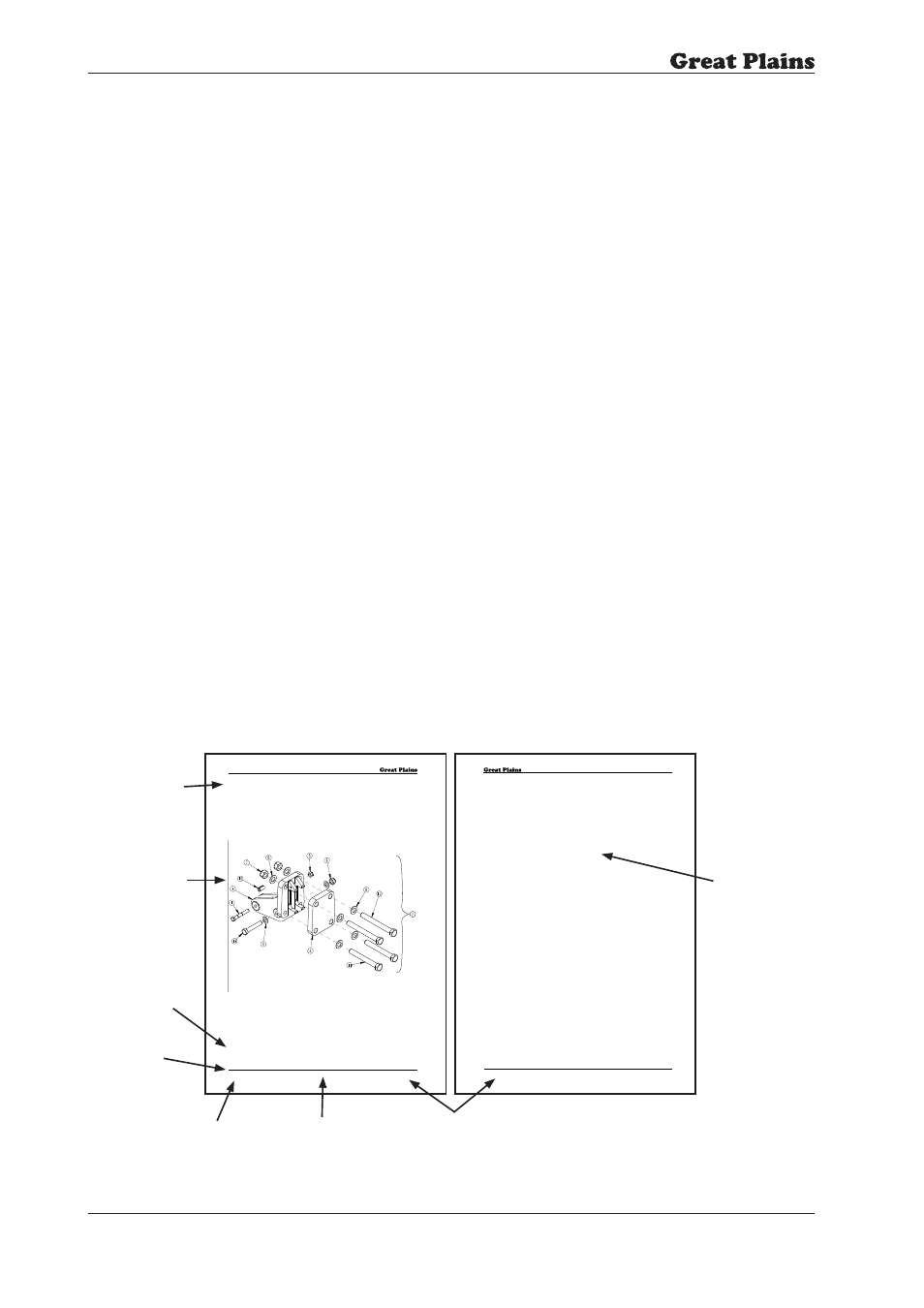

Below is an example of two facing pages
from a parts manual. Familiarize yourself
with the contents of these pages.
Manual Replacement
Replacement manuals are available. Refer
to your dealer for additional information.
Manual Revisions
When this manual is revised, the
modification date is printed on the front
cover and on the revised page(s).
Touch-up Paint
Repaint parts where paint is worn or
scratched to prevent rust. Aerosol touch-
up paint is available. To order use Great
Plains parts numbers below:
GP Green 821-001C
GP Black 821-002C
10 Simba ST-Bar
606-037P
2013-08-21
Parts
Tine Mount - Shear Bolt
45007
11 Simba ST-Bar
606-037P
2013-08-21
Parts
Item Part No. Part Description Comments
Tine Mount - Shear Bolt
1 604-309D HHCS M12X1.75X85 GR10.9 SPTHD
2 606-038A SHEAR BOLT UNIT C/W C/PLATE COMPLETE UNIT AS SHOWN
3 606-041H TINE SHEAR CLAMP
4 606-078D PLATE 25MM
5 803-281C NUT HEX NYLOCK M12X1.75 PLT
6 803-282C NUT HEX M16X2.00 NYLON INSERT
7 803-393C NUT HEX NYLOCK M20X2.5
8 804-244C WASHER FLAT M20 PLT
9 804-247C WASHER FLAT M16 PLT
10 827-143C BUSH SPRUNG -Ø16.5XØ13.5X26.15
11 842-050C HHCS M20X2.5X160 GR8.8
12 842-051C HHCS M20X2.5X180 GR8.8
13 842-098C HHCS M16X2X90 GR8.8 SPTHD
Illustration
Illustration
Number
Page
number
Manual Part
Number
Machine
Modification
Date
Parts List
Illustration
Title
