Page 17

Great Plains Mfg., Inc.
Section 1: Assembly
1/17/2005
Series VII 6113-6328 Field Cultivator, Floating Hitch 560-204M
15
6113 & 6116 Wing Frame Assembly

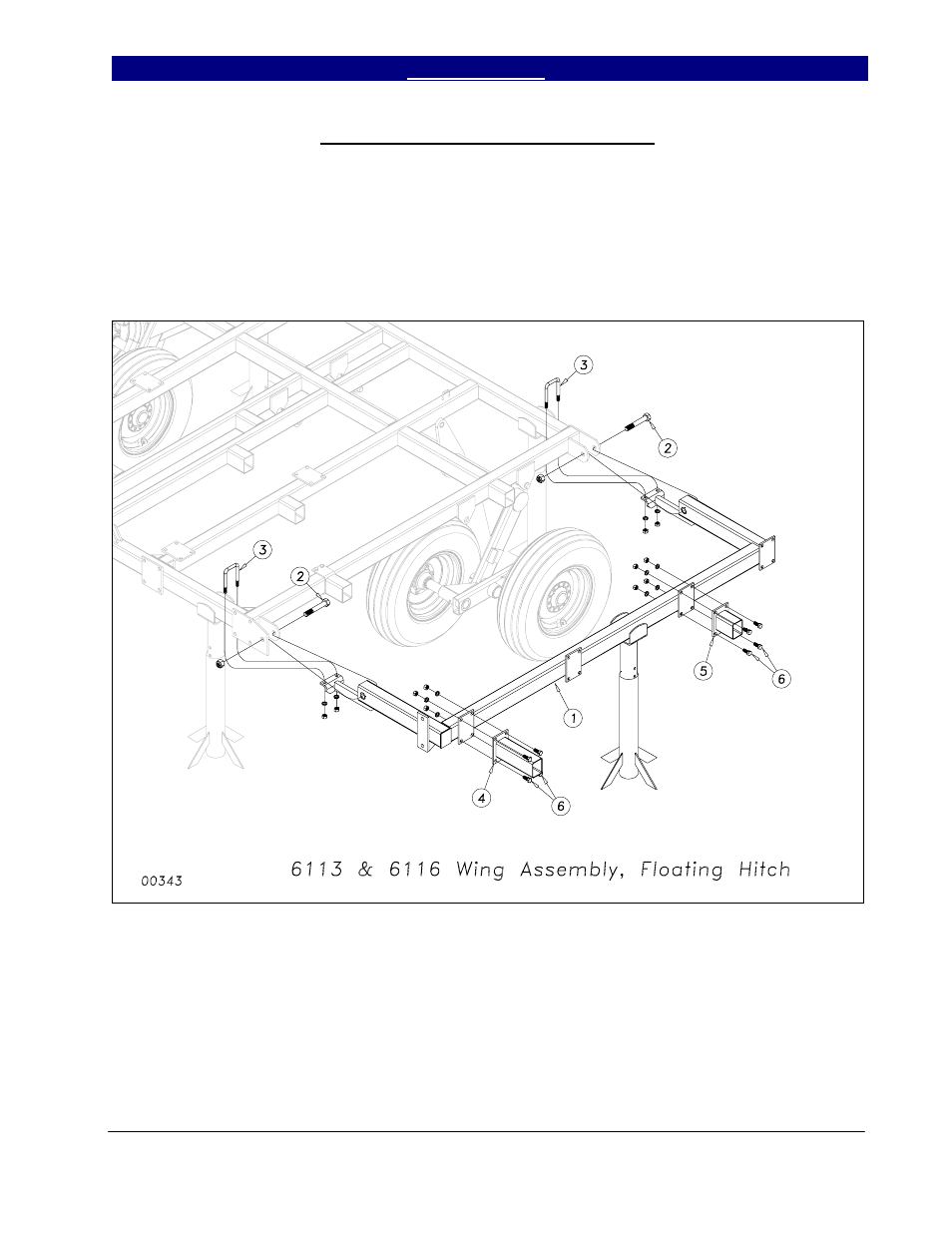

Bolt the wing frame (1), Figure 2, to
the center frame with two 1 x 6 hex bolts (2)
with nylon lock nuts. Install the 5/8 x 3 x 5
1/2 u-bolts (3) to secure the wing frame rigid.
Use lock washers and hex nuts. On model
6116, bolt the 11” bolt on stub (4) and the 5”
bolt on stub (5) to the wing frame using 5/8 x
1 1/2 hex bolts (6), using lock washers and
hex nuts.
Figure 2
