Great Plains PL8030 User Manual
Before you start, General information, Assembly instructions
This manual is related to the following products:
Table of contents
Document Outline
- 407-017A Liquid Fertilizer 6-30 Vantage I
- 407-018A Liquid Fertilizer 8-30 Vantage I
- 15745
- 15746
- Figure 4
- Figure 5
- Figure 6
- Figure 1

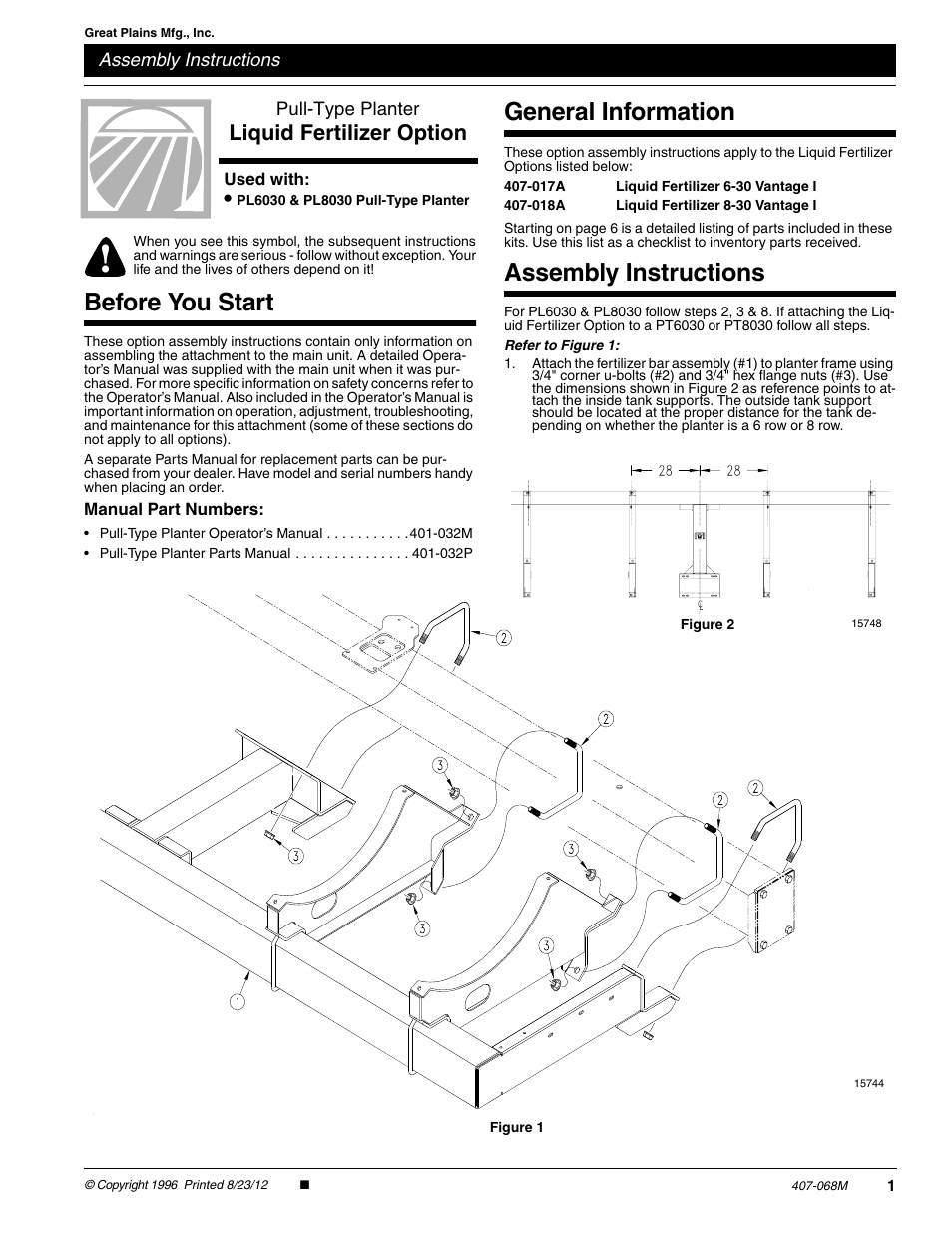

- Before You Start
- General Information
- Assembly Instructions
- 15748
- 2. Place saddle (#4) on tank supports and attach with 1/2" x 1 1/4" long hex bolts (#5) and 1/2" hex flange nuts (#6). Be sure the chemical warning decal (#7) is attached to saddle.
- 3. Hold tank (#8) in place by fastening tank shield weldment (#9) to saddle with 3/8" x 2 1/2" long hex bolts (#10), 3/8" x 3/4" long hex bolts (#11) and 3/8" hex flange lock nuts (#12).
- 4. Attach right hand pump mount (#13) and left hand pump mount (#14) to mounts (#15) using 3/8" x 2 3/4" long hex bolts (#16) an...
- 5. Mount the squeeze pump assembly (#20) to pump mounts with 3/8" x 1" long hex bolts (#21), 3/8" flat washers (#22) and 3/8" hex nuts (#23). Attach fertilizer case (#24) to the right hand pump mount.
- 6. Attach fertilizer cover (#25) to fertilizer case with knob (#26).
- 7. For 8-row planters attach counter shaft (#28) using couplers (#27) & (#29).
- 8. Assemble plumbing as shown in Figure 6 with the parts listings on page 4. Be sure to use Rectorseal (#12) on all fittings. Cut to length 3/8" diameter hose to fit your coulter option.
