2 Pull-Type Planter Liquid Fertilizer Option 407-068M 8/23/12
Great Plains Mfg., Inc.
Assembly Instructions
15745
Figure 3
mount (#14) to mounts (#15) using 3/8" x 2 3/4" long hex
bolts (#16) and 3/8" hex flange lock nuts (#17). Mount these
assemblies to planter frame with 3/4" x 3 3/4" long hex bolts
(#18) and 3/4" hex flange lock nuts (#19).
5. Mount the squeeze pump assembly (#20) to pump mounts
with 3/8" x 1" long hex bolts (#21), 3/8" flat washers (#22)
and 3/8" hex nuts (#23). Attach fertilizer case (#24) to the
right hand pump mount.
Refer to Figure 5:
6.
Attach fertilizer cover (#25) to fertilizer case with knob (#26).
7. For 8-row planters attach counter shaft (#28) using couplers
(#27) & (#29).
8. Assemble plumbing as shown in Figure 6 with the parts list-
ings on page 4. Be sure to use Rectorseal (#12) on all fit-
tings. Cut to length 3/8" diameter hose to fit your coulter
option.
■

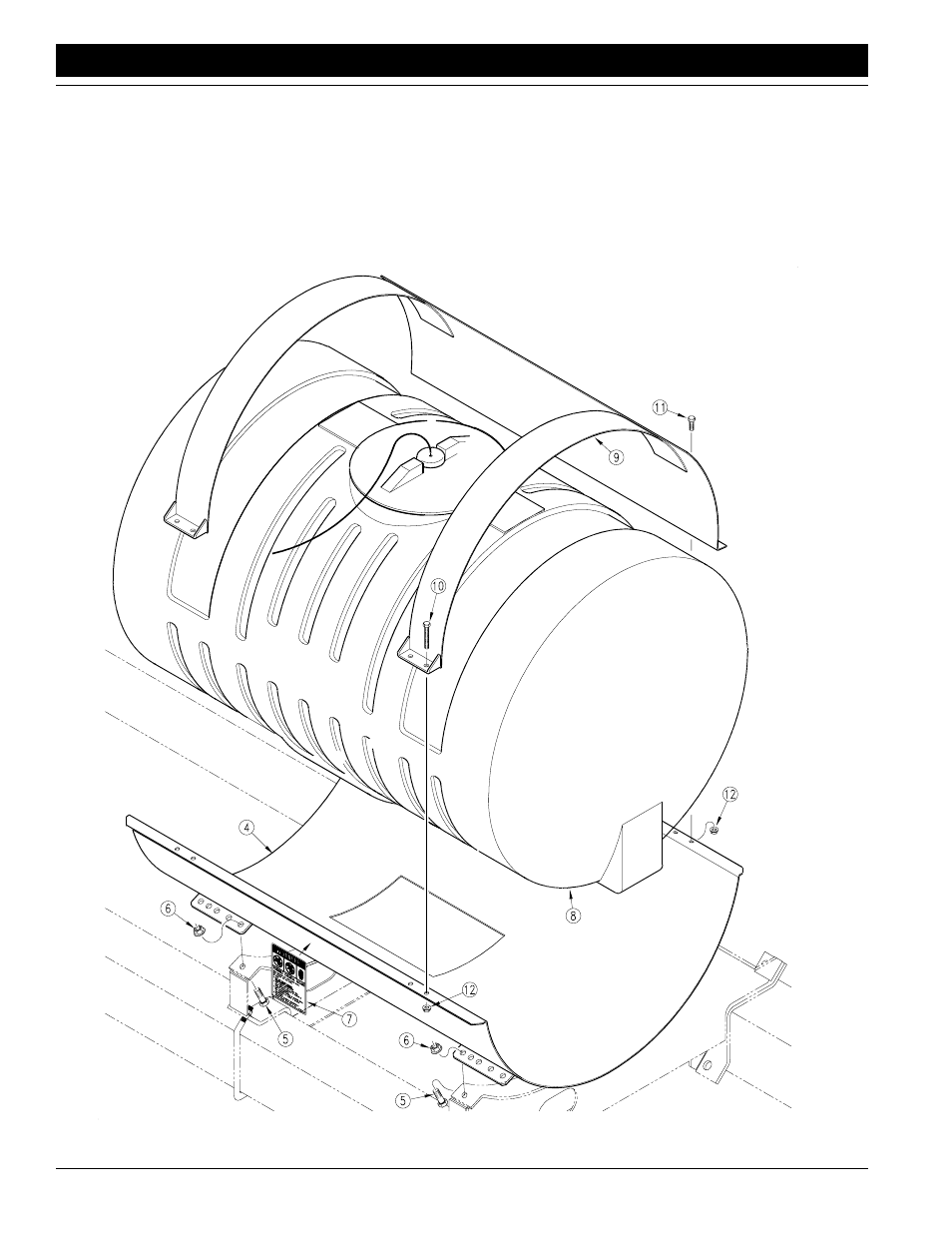

Refer to Figure 3:
2.
Place saddle (#4) on tank supports and attach with
1/2" x 1 1/4" long hex bolts (#5) and 1/2" hex flange nuts
(#6). Be sure the chemical warning decal (#7) is attached to
saddle.
3. Hold tank (#8) in place by fastening tank shield weldment
(#9) to saddle with 3/8" x 2 1/2" long hex bolts (#10), 3/8" x
3/4" long hex bolts (#11) and 3/8" hex flange lock nuts (#12).
Refer to Figure 4:
4.
Attach right hand pump mount (#13) and left hand pump
