Great Plains PD8070 - Manual (Page 2)

Great Plains Mfg., Inc.
2 Update Kit
402-231M 02/02/2007
Ground Drive Sensor Installation
Remove Components from Work Area

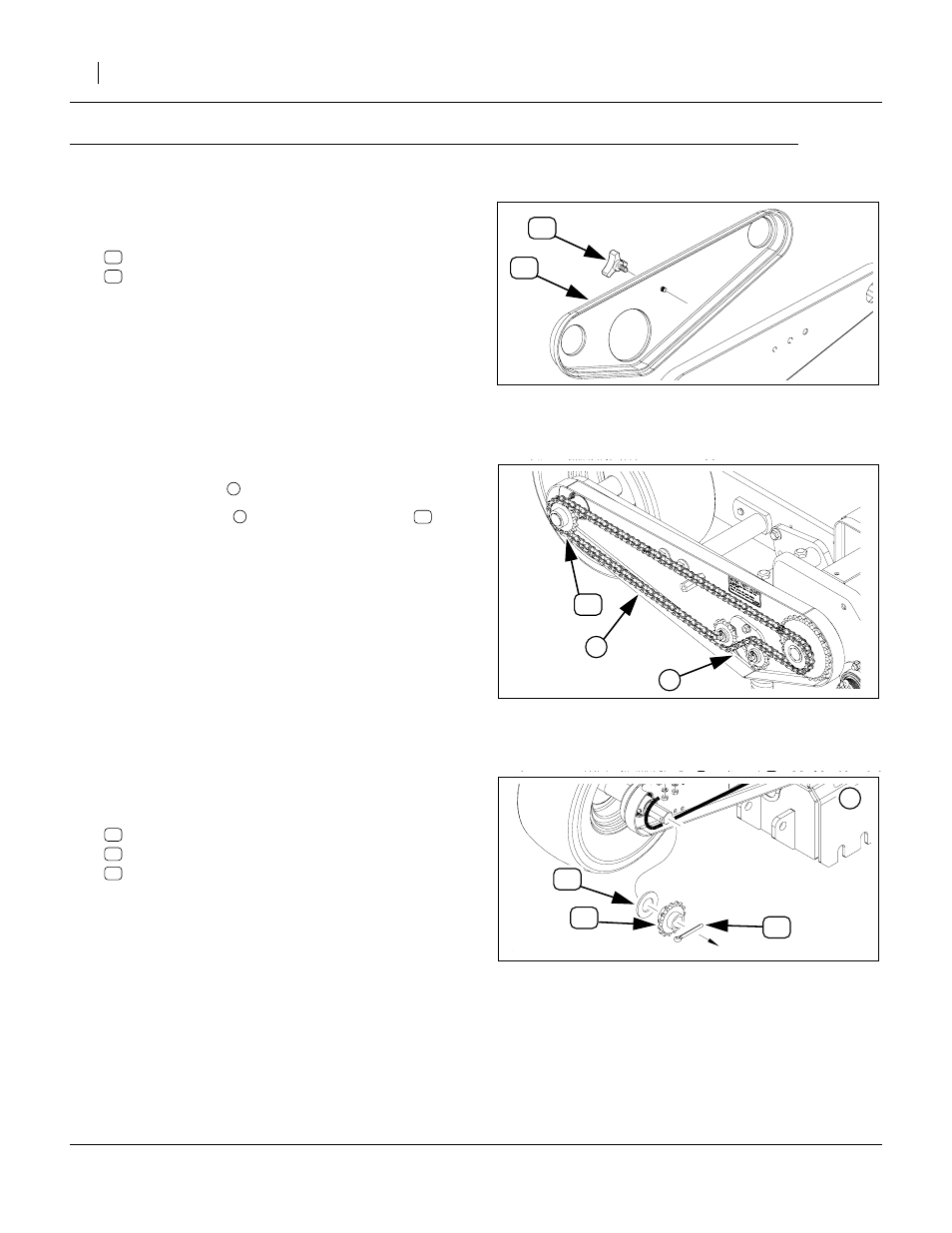

Refer to Figure 2
4. On the left hand contact drive, gain access to the
area to be updated by, removing and saving the:
KNOB, TRANS. SHIELD
LH CONTACT DRIVE CHAIN COVER
Refer to Figure 3
5. Loosen the idlers .
6. Remove the chain from the drive sprocket
and let it hang toward the idlers.
Refer to Figure 4
7. At the contact wheel shaft, remove and save one
each of these existing parts:
PIN COTTER 1/4 X 2 PLT
SPKT 40C15 X 7/8 HEX BORE
WASHER FLAT SAE 1
Figure 2
Remove Cover
26002
60
62
60
62
Figure 3
Dismount Sprocket & Washer
16863
59
1
2
1
2 59
Figure 4
Dismount Sprocket & Washer
25493
57
59
58
1
58
59
57
