Great Plains NTA 2000 export model Assembly Instructions - Manual (Page 2)

148-679M 5/9/2007
Great Plains Mfg., Inc.
Small Seeds Option 2
Assembly Instructions
Refer to Figure 1
1. Remove the bolts which hold the short hand-
rail brackets (1) and long handrail brackets (2)
and discard brackets (1) and (2).
2. Remove the bolts which hold the platform
handrails (3) on the upper platform and dis-
card handrails (3).
Note: Save bolts, nuts and washers for installation
of new handrails.
Refer to Figure 2
3. On the rear of the main seed box measure 14
29/32" (37.90 cm) from the right-hand side of
the box and up from the mounting surface
12 5/8" (33.53 cm) and mark. From this mark
measure to the left 82 15/16" (210.68 cm) and
up from the mounting surface of the box
12 5/8" (33.53 cm) and mark.
4. Drill a 13/32" (1.03 cm) hole at each of the
spots marked in step 3.
5. Align the center hole on each end of the small
seeds box with the holes drilled in step 4. Se-
cure small seeds box with 3/8" bolts, 3/8" lock
washers and 3/8" nuts.
6. Use the small seeds box as a template and
drill the remaining four holes and secure box
with 3/8" bolts, 3/8" lock washers and 3/8"
nuts.

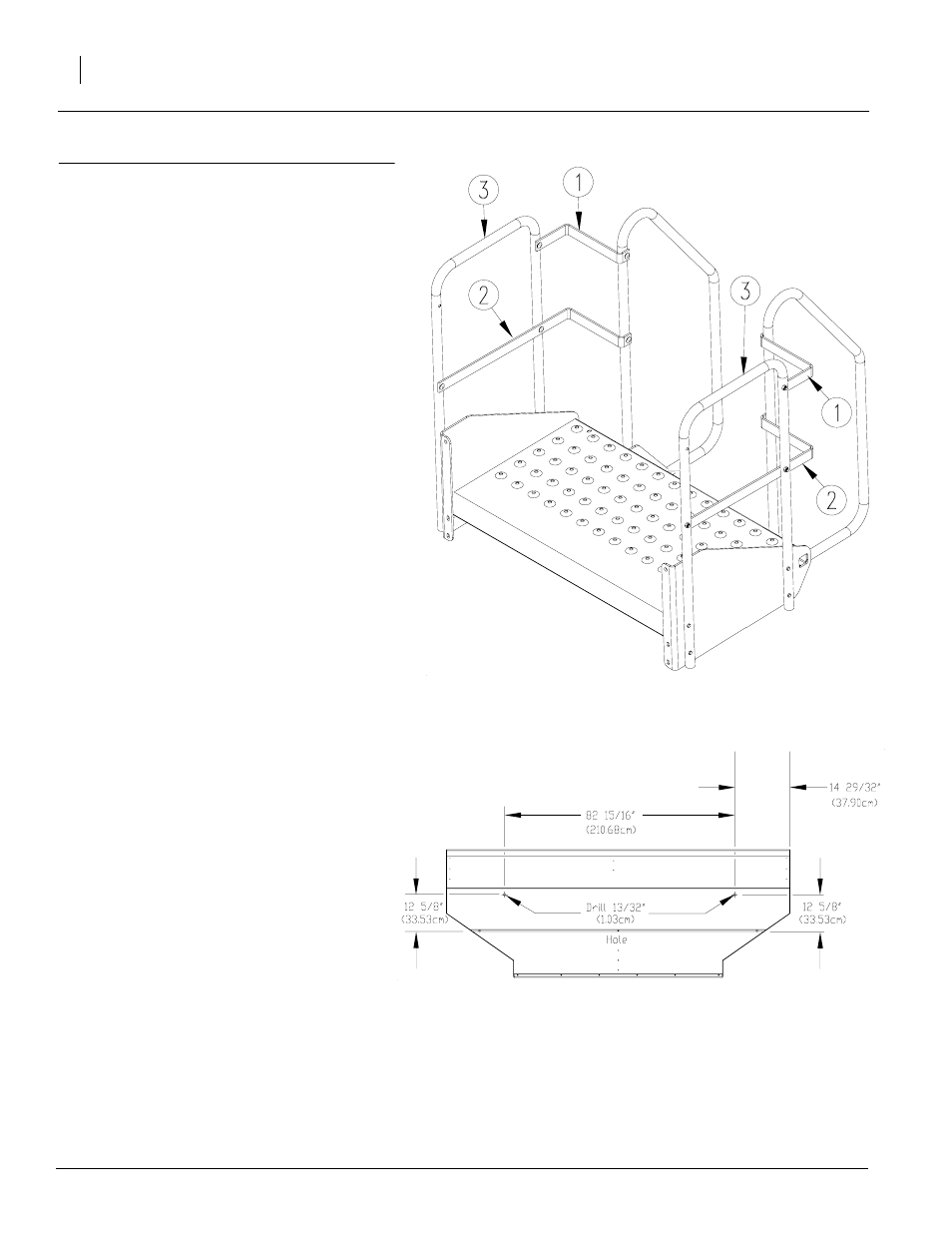

Figure 1
Removing Handrail
20199
Figure 2
Marking the Holes
20203
