Refer to Figure 6
9. Assemble jack (1) by inserting jack (1)
through upper jack mount plate (2) located on
gauge wheel mount (3). Secure plate (2) to
jack (1) with three 7/16-14 x 1 1/4 bolts (4)
and nut hex flange locs (5).
10. Secure jack (1) to gauge wheel jack lower
mount (6) with 7/16-14 x 2 3/4 bolt (7) and nut
hex lock (8).
11. Repeat steps 9 and 10 on opposite side of in-
line ripper frame.
NOTE: The jacks should only be used to help
raise and lower the gauge wheels. The cross pin
still needs to be used in order to avoid overloading
the jack.

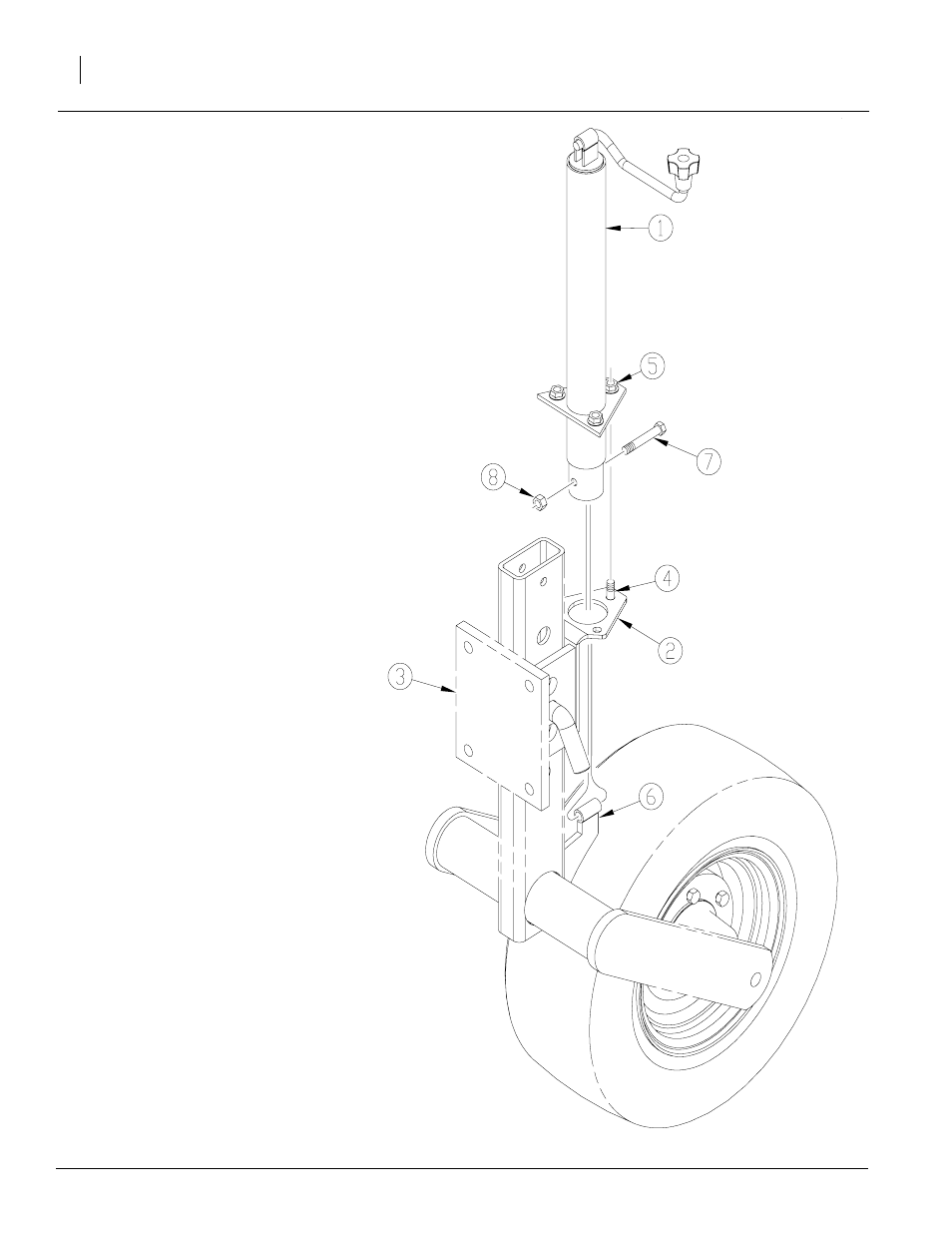

Figure 6 23178
