Great Plains Inline Ripper Gauge Wheel Jack Kit User Manual
Page 5

5/4/2005
596-158M
Great Plains Mfg., Inc.
5
Installation Instructions
Refer to Figure 5
5.
Grind paint on bottom portion of back of the gauge
wheel arm (2).
6.
Center and align gauge wheel jack lower mount (1) flush
with the bottom of the gauge wheel arm (2). Weld mount
(1) on arm (2).
7.
Grind paint on the gauge wheel mount (3). Center and
align upper jack mount plate (4) flush with the bottom of
the gauge wheel mount (3). Weld plate (4) on gauge
wheel mount (3).
8.
Repeat steps 5-7 on opposite side of inline ripper frame.
Paint new parts with Great Plains Green available from
the nearest authorized Great Plains dealer.

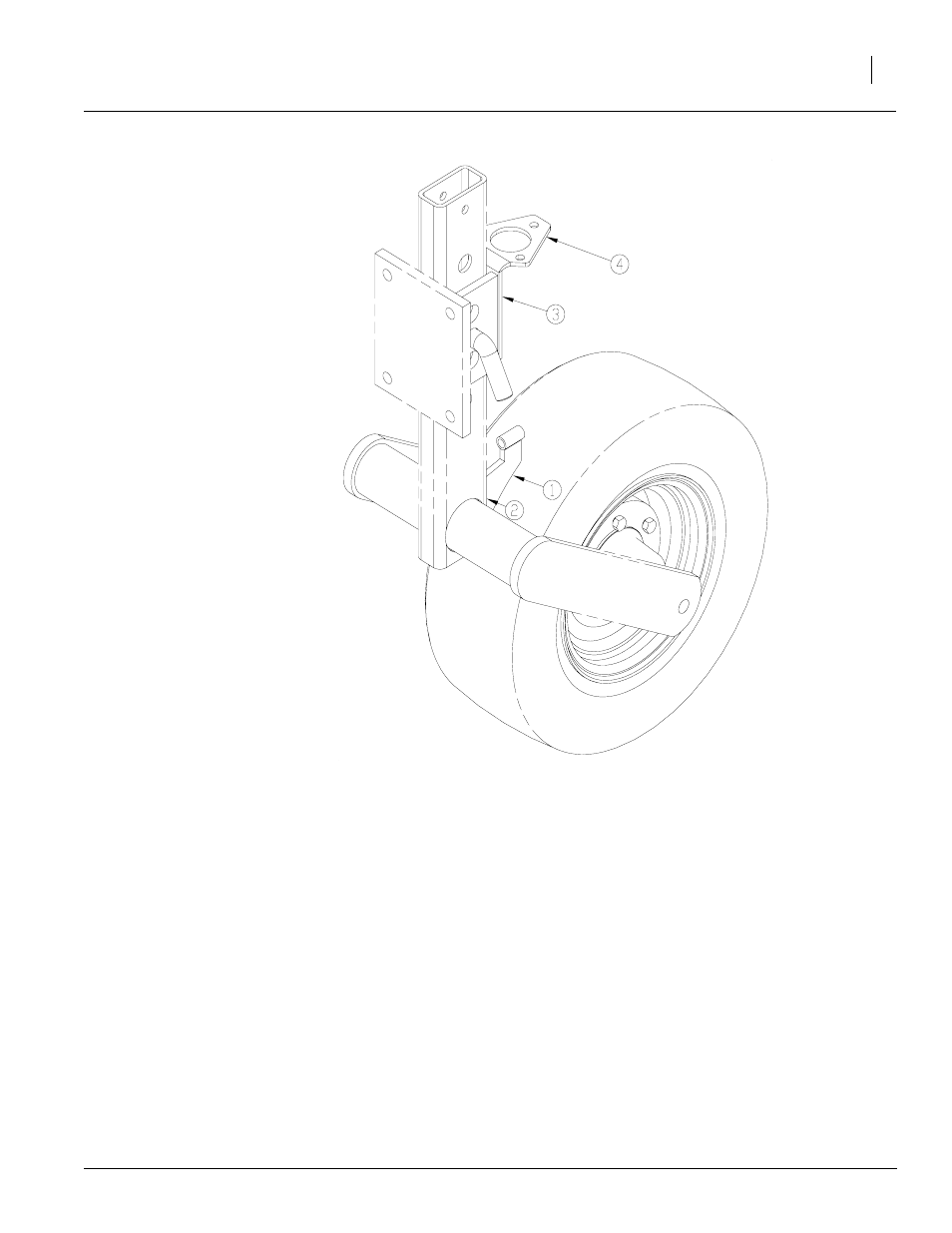

Figure 5
23174
