Seed Box Mounting
Refer to Figure 5
If you have a late model drill, you may already have a
Small Seeds-ready main seed box, with mounting holes
present, and occupied by fasteners.
16. Inspect the back of the main seed box. If there are
fasteners at the hole positions in Figure 5,
remove them (they are not re-used), and
continue at “Mount Small Seeds Box” on page 8.
Mark Holes for Drilling Box
17. Use the dimensions from Figure 5 to mark hole posi-
tions on the main box. If three people are available,
confirm hole locations by having two people hold
the Small Seeds box against the main seed box,
and verifying marks at the Small Seeds mounting
holes.
18. Drill eight
3
⁄
8
in holes in the main seed box at the
marked locations.

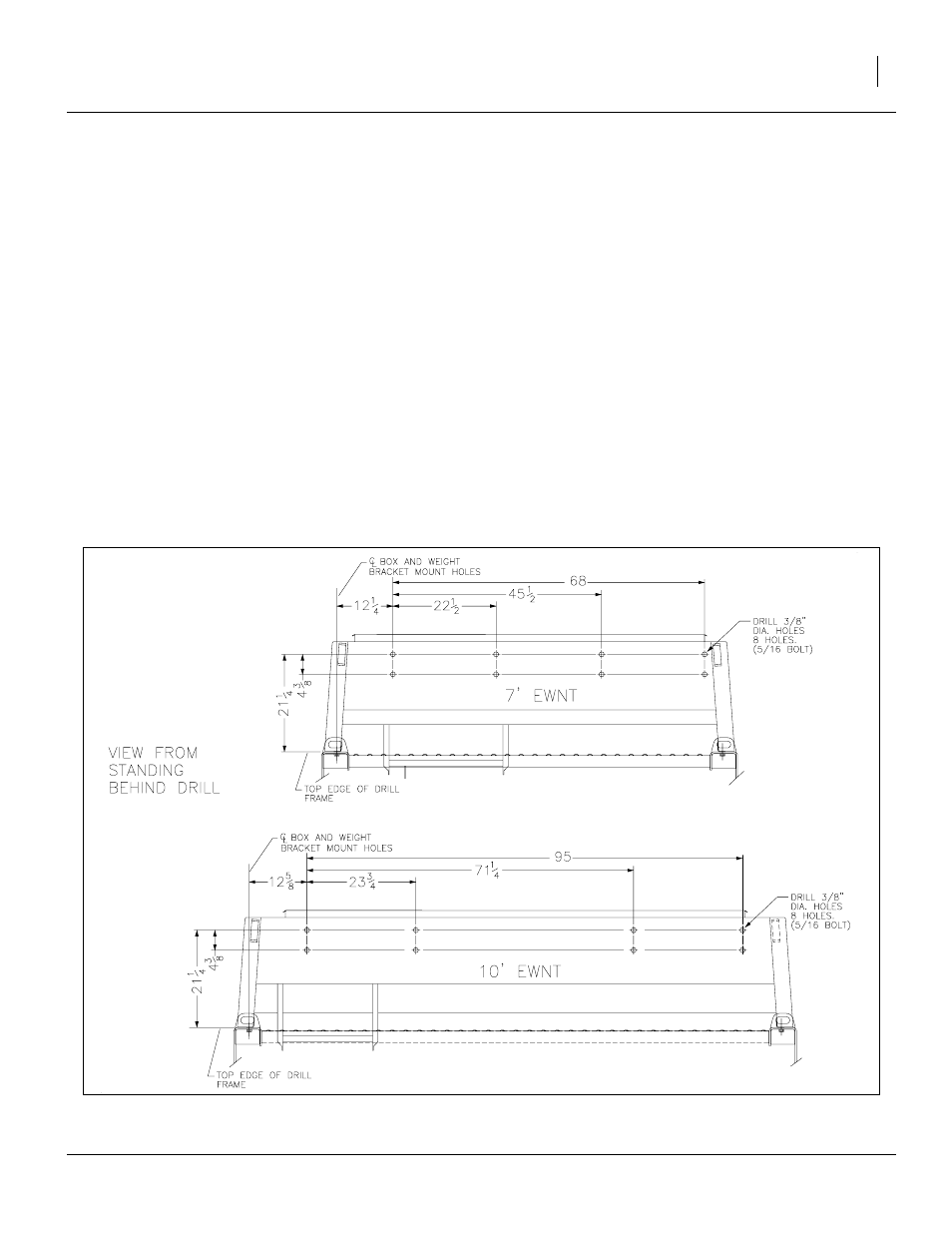

Figure 5
Small Seeds Box Mounting Holes
10912
