Mount Small Seeds Box
Refer to Figure 6
19. Select the box assembly
, which is one of:
At least two people are needed to mount this.
20. Select two:
and four sets of:
802-159C HHCS 5/16-18X1 GR5
804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT
21. Loosely attach the outside ends of the Small Seeds
box
to the main seed box with the 1in bolts
Use a backing plate
under the lock washer
and nut
22. Select two more:
and four sets of:
23. Insert the bolts
through the backing plates
from the inside of the main seed box, then through
the spacers
and into the Small Seeds box
Secure with lock washers
and nuts
24. Tighten all mounting fasteners to torque specifica-
tions.

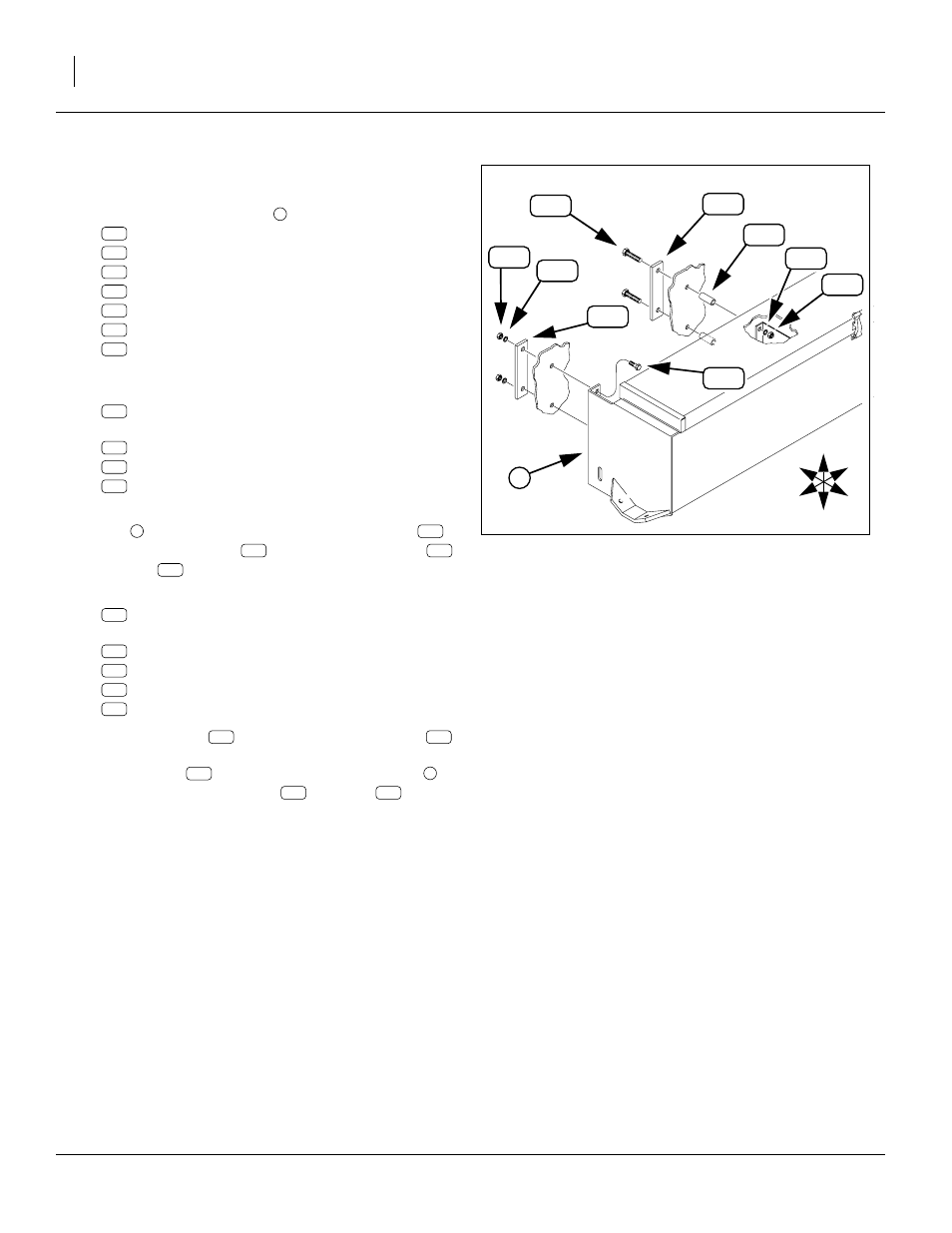

Figure 6
Mount Small Seeds Box
27498
