Base Update 2005 Kit 6
Refer to Figure 8
5. Remove level sensor (1) and shroud (2) from
old top manifold weldment. Keep sensor (1),
shroud (2), and hardware for reuse. Discard
old top manifold weldment.
Refer to Figure 9
6. Remove gates (1) from rear part of in-
side manifold. Keep all hardware for re-
use. Discard gates (1).
7. Replace gates with left and right-hand
seed chamber dividers (2). Note orienta-
tion of dividers (2) with tabs to bottom.
NOTE: Seed chamber dividers (2) come
in a pair of left and right-hand dividers.
With the dividers properly oriented in the
manifold, the end with the long tab will be
toward the center and the tabs will line up
with the outlets. If the tabs do not correct-
ly line up with outlets, the dividers are not
properly oriented in manifold.
8. Secure seed chamber dividers (2) using
hardware removed from gates.

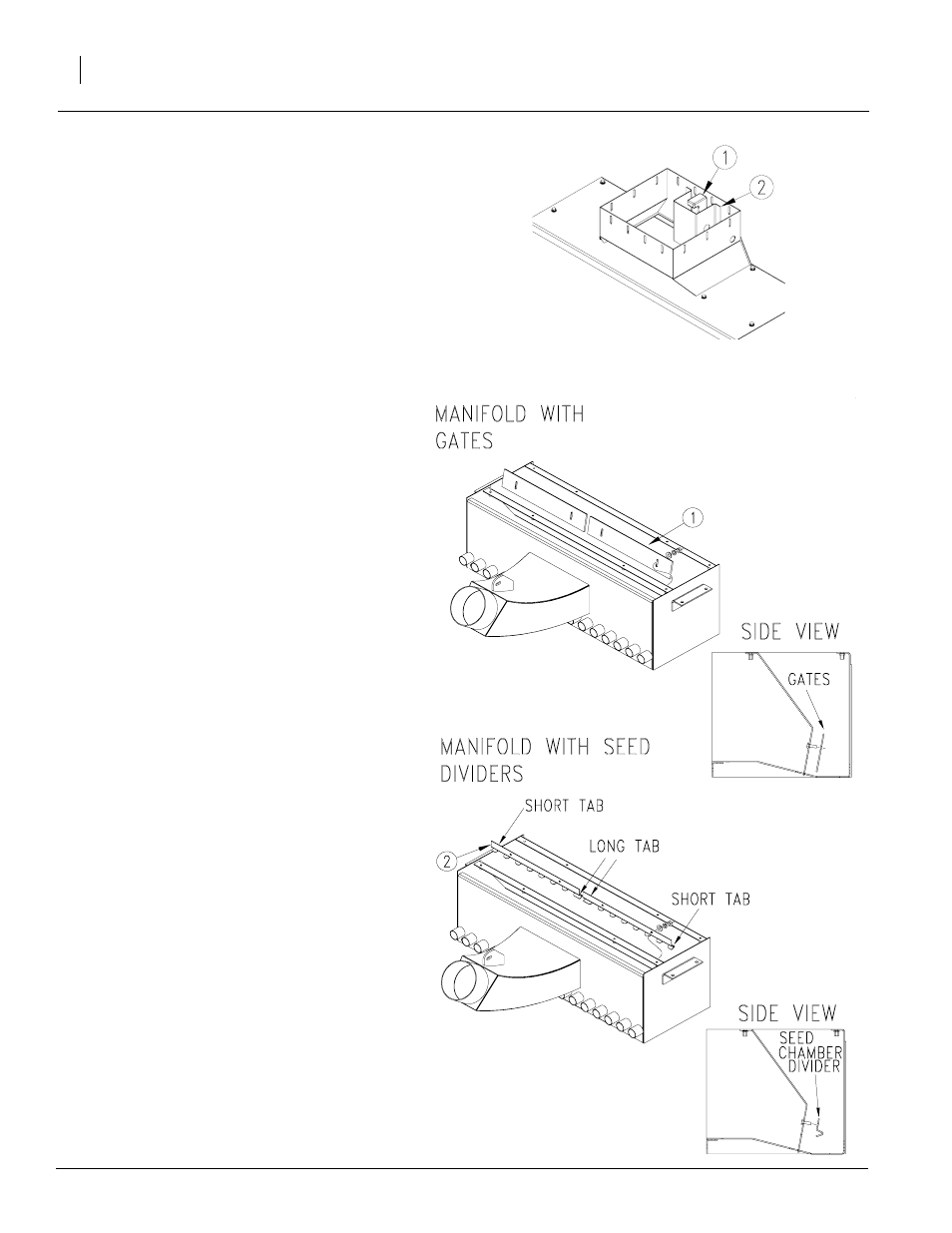

Figure 8
Manifold Shroud
23415
23465
Figure 9
Manifold Seed Chamber Dividers
