Great Plains Yield-Pro 1625 Planter 2004 User Manual
Page 12
402-188M
12/12/2005
Great Plains Mfg., Inc.
Base Update 2005 Kit
12
23424
Cut Hose
Here
Replace Upper Sight Glass Fitting and Add
Decal
Refer to Figure 2
1.
Remove hose from top, upper sight glass fit-
ting by cutting hose at end of old hose barb.
NOTE: New fitting is longer and will make
up cut off length.
2.
Unscrew elbow fitting and hose barb from top
of tank only. Replace sight glass fitting with
stainless steel elbow and hose barb fitting.
3.
Reattach hose to new fitting.
Refer to Figure 5
4.
Install level decal to front of tank as
shown. To simplify installation 4 inches
may be cut from decal. Cut 1 1/2" below
the 50 gallon mark. Make the second cut
5 1/2" below the 50 gallon mark. Then in-
stall decal above and below frame tube
so that 50 gallon mark is 1 1/2" upslope
from top of frame tube as shown.

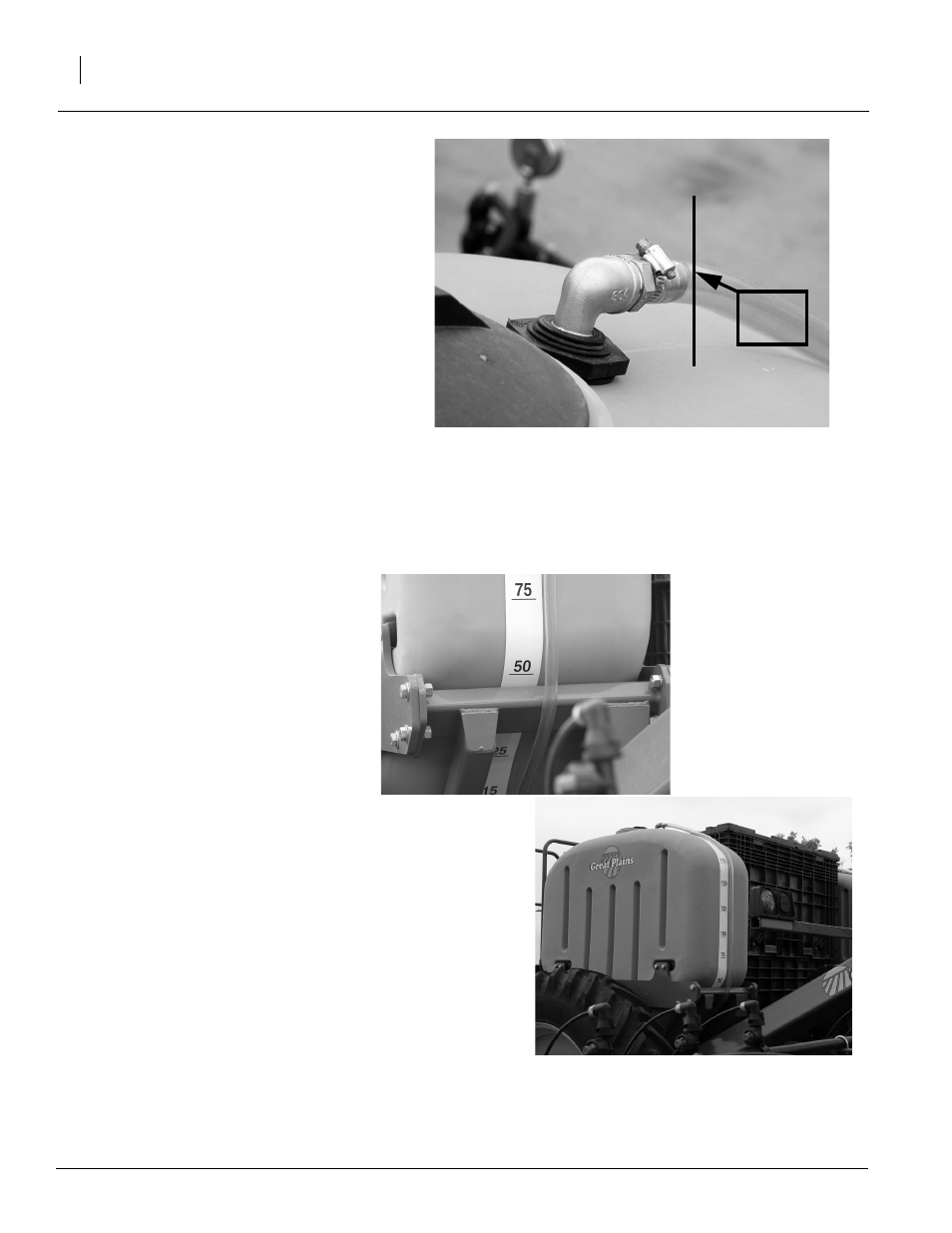

Figure 2
Sight Glass Fittings
23425
23426
Figure 3
Fertilizer Tank
