117-055P
LS10 and LS12 Levee Seeder 1-1
Table of Contents Parts Number Index
175-083P
New or Modification
Date
7/1/99
1. 177-001H 13' END WHEEL TONGUE WELDMENT
2. 177-004H PULL BAR WELDMENT LH
2 177-005H PULL BAR WELDMENT RH
3. 806-032C U-BOLT 5/8-11 X 3 17/32 UNEVEN
4. 804-022C WASHER LOCK SPRING 5/8 PLT
5. 803-021C NUT HEX 5/8-11 PLT
6. 802-183C RHSNB 1/2-13X1 GR5
7. 802-083C HFSS 1/2-13X1 1/4 GR8
8. 804-015C WASHER LOCK SPRING 1/2 PLT
9. 803-020C NUT HEX 1/2-13 PLT
10. 177-587D SAFETY CHAIN WASHER
11. 807-023C SPRING HOSE LOOP
12. 801-026C SCREW HEX 3/8-16X1 TYPE F
13. 804-013C WASHER LOCK SPRING 3/8 PLT
14. 804-012C WASHER FLAT 3/8 SAE PLT
15. 177-009D CLEVIS HITCH TOP HALF
16. 177-008D CLEVIS HITCH BOTTOM HALF
17. 802-177C RHSNB 3/4-10X2 1/2 GR5
18. 804-023C WASHER LOCK SPRING 3/4 PLT
19. 803-027C NUT HEX 3/4-10 PLT
20. 803-037C NUT HEX WHIZ 1/2-13 PLT
21. 806-028C U-BOLT 1/2-13 X 3 17/32 X4 3/4
22. 890-118C SCREW JACK 2000#
23. 802-299C RHSNB 3/4-10X3 GR5
24. 890-182C SAFETY CHAIN 10000 LB
175-083P 7/1/98
2-1 CF500 and CF600
Tongue & Pull Bar (S/N 00000-)
2-2
Tongue & Pull Bar (S/N 00000-)
10207
Illustration
Heading
Illustration
Parts List
Page
Number
Illustration
Page
Parts
Page
Manual
Number
Illustration
Number
Serial
Number Break
Frames
Manual
Name
Section
Name
2
Section
Number
LS10 and LS12 Levee Seeder
5/15/2000
117-055P
Section 1 Introduction
General Information
Using This Manual
This manual is divided into sections. The first section con-
tains General Information, a Table of Contents, an
Alphabetical Page Index, and a Part Number Index. The
remaining sections divide the machine into segments (i.e.
Frames, Drives, Hydraulics, etc.) which illustrate and list
all parts.
The Great Plains parts in this manual are specially de-
signed for this machine and should be replaced with Great
Plains parts only.
The information in this manual is current at printing. Some
parts may change to assure top performance.
Right-hand and left-hand as used in this manual are deter-
mined by facing the direction the machine will travel while
in use.

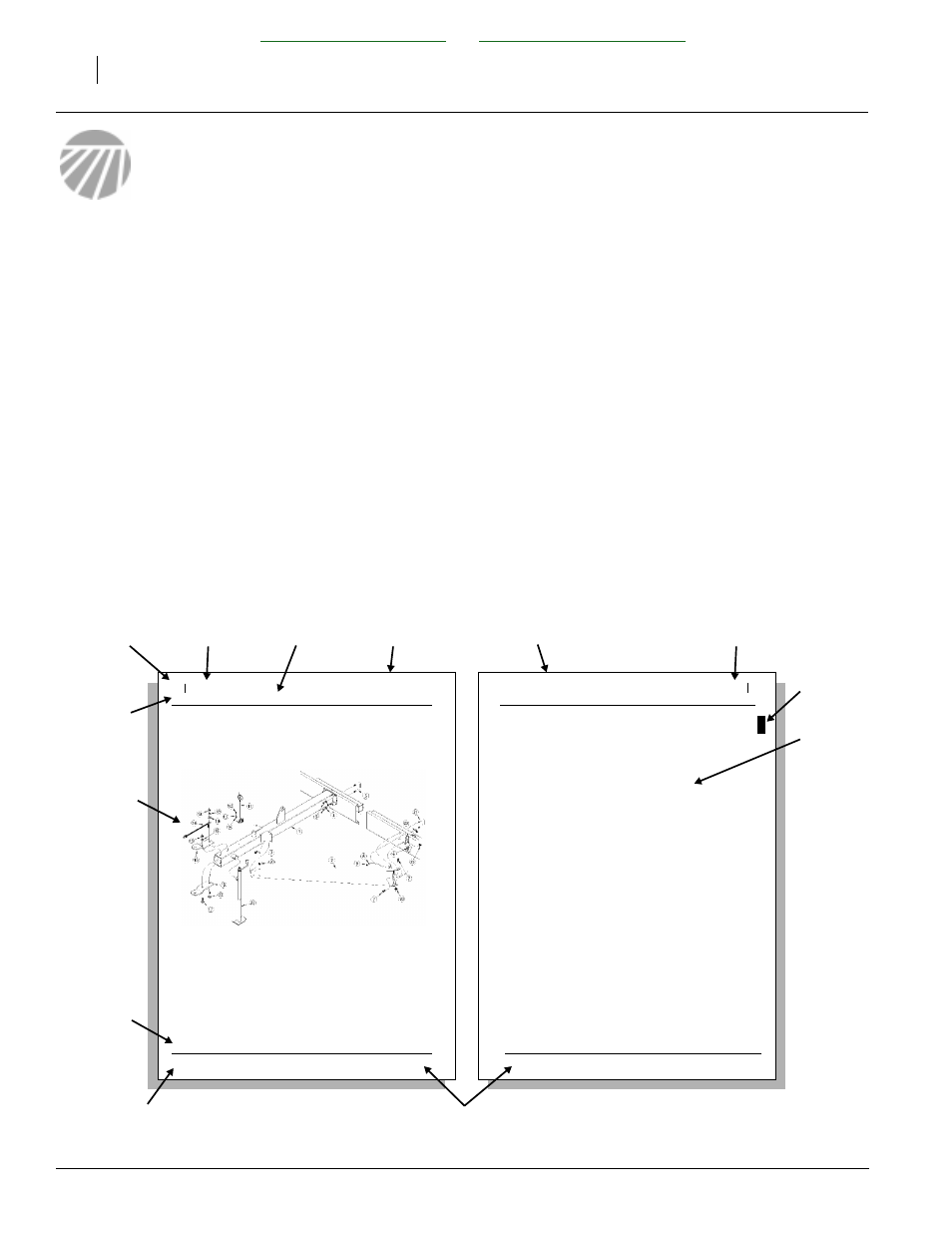

Below is an example of two facing pages from a parts
manual. Familiarize yourself with the contents of these
pages.
Manual Replacement Information
Replacement manuals are available. Refer to your dealer
or the Great Plains Publications Catalog for additional
information.
Manual Revisions
When this manual is revised, the modification date is print-
ed on the front cover and on the revised page(s).
Touch-up Paint
Repaint parts where paint is worn or scratched to prevent
rust. Aerosol touch-up paint is available. To order use
Great Plains parts numbers below:
GP Green . . . . . . . . . . . . . . . . 821-001C
GP Black . . . . . . . . . . . . . . . . 821-002C
GP Beige . . . . . . . . . . . . . . . . 821-003C
GP Buckskin . . . . . . . . . . . . . . 821-004C
