Introduction
The Turbo-Till has been designed with care and built by
skilled workers using quality materials. Proper setup,
maintenance, and safe operating practices will help the
customer get years of satisfactory use from the machine.
Description of Unit
The Series II 1200-4000TT Turbo-Till is a one, three or
five section “vertical” tillage tool. Working width ranges
from 12 to 40 feet. The implement is designed to cut and
size residue, till soil for faster seedbed warming, break up
soil crust on hard dried fields while eliminating compaction
layers.Various finishing attachments are also available to
further smooth, redistribute residue, kill weeds, and break
clods
Models Covered
Document Family
Tools Required
• Basic Hand Tools
• Torque Wrench
• Fork Truck, Overhead Hoist or Loader
Pre-assembly Checklist
1. Before assembling, read and understand “Important
Safety Information” in front part of this manual.
2. Have at least two people on hand while assembling.
3. Make sure area is level and free of obstructions (pref-
erably an open concrete area).
4. Have all major componets
5. Have all fasteners and pins shipped with machine.
1200TT 12’ (10in) spacing
1500TT 15’ (10in) spacing
1800TT 18’ (10in) spacing
2400TT 24’ (10in) spacing
3000TT 30’ (10in) spacing
4000TT 40’ (10in) spacing
586-201Q Pre-Delivery Manual (this document)
586-201M Operator Manual
586-201P Parts Manual

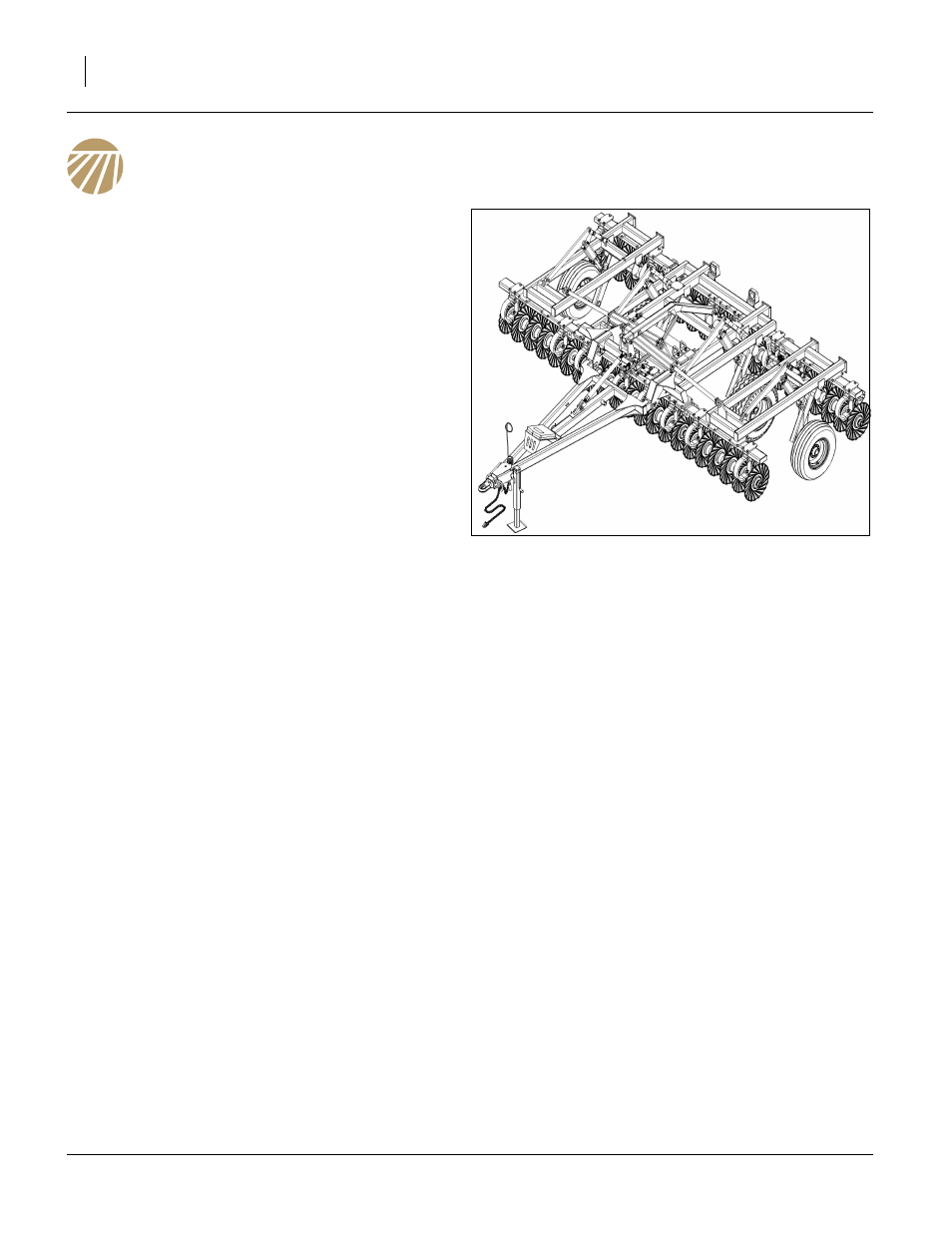

Figure 1
1800 Turbo-Till
41478
