Rear Stand
Refer to Figure 21
If machine is equipped with a rear attachment, be sure you install
the rear jack stand so machine doesn’t tip backwards when unhook-
ing machine from tractor.
84. Attach the rear stand bracket to the center of, the rear
tube of the drag frame with 5/8 x 3 x 4 1/2 u-bolts , 5/8
lock washers and 5/8 nuts.
85. Tightened u-bolts.
86. Slide the rear stand through the rear stand bracket ,
secure with the 3/4 x 4 1/2 pin rear stand bracket and
retainer.
87. Once the options are installed, fold the Turbo-Till to
check for clearance and interferences, also watch that
hoses do not get pinched.
Note: Double check that all bolts are tightened to specs, See
“Torque Values Chart” on page 23.Consult the “Oper-
ator’s Manual”, for the first time field adjustments before
going to the field.
4

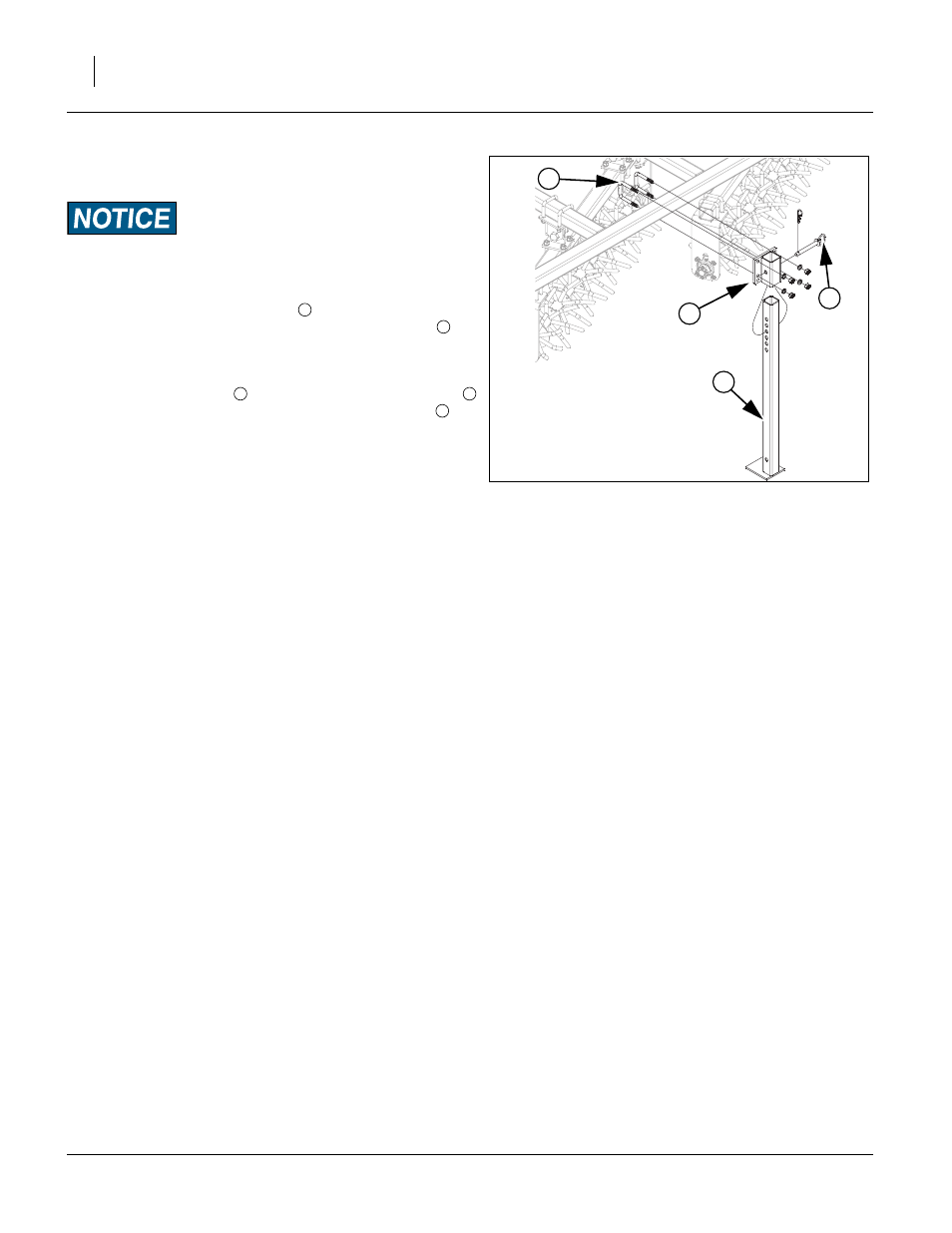

Figure 21
