4000 Outer Wing Assembly
Refer to Figure 6
Note: The outer wings will come pre-assembled. Place outer
wing frame assemblies on stands next to center
frame.
28. Remove 1 x 6 bolts Gr. 8 special thread bolts from
center frame hinge. Bolt outer wing frame assemblies
to inner wing frame hinge
with the 1 x 6 bolts Gr. 8
special thread bolts and 1 top lock nuts. Tighten bolts
snug, do not torque, as the wing must pivot freely.
29. Bolt the rocker link on outer wing, rod end of fold cylin-
ders to inside wing fold link with 1 x 7 Gr. 8 special
thread bolts , four, 1 flat washers and 1 top lock nuts.
Tighten bolts snug, do not torque, as the cylinder must
pivot freely.
Note: Do not hook up rod end of fold cylinder until system
purged of air. See “Purging Hydraulic System” on
page 15.
Hitch Hose & Light Harness Assembly
Refer to Figure 7
Note: The hydraulic hoses and light harness are all attached
to center frame and rolled up for hitch.
30. Un-roll the hoses and route them along right side of hitch
and through spring hose loop as shown. All hoses and
light harness will run through the same double hose
clamps.
31. Fasten hoses to hitch frame with bolts and clamps (pro-
vided) on hitch frame.Attach hose wraps on hoses to
prevent hoses from dragging or getting pinched.
32. See “Attach Hose Clamps and Hose wraps” on
page 14 for proper assembly.

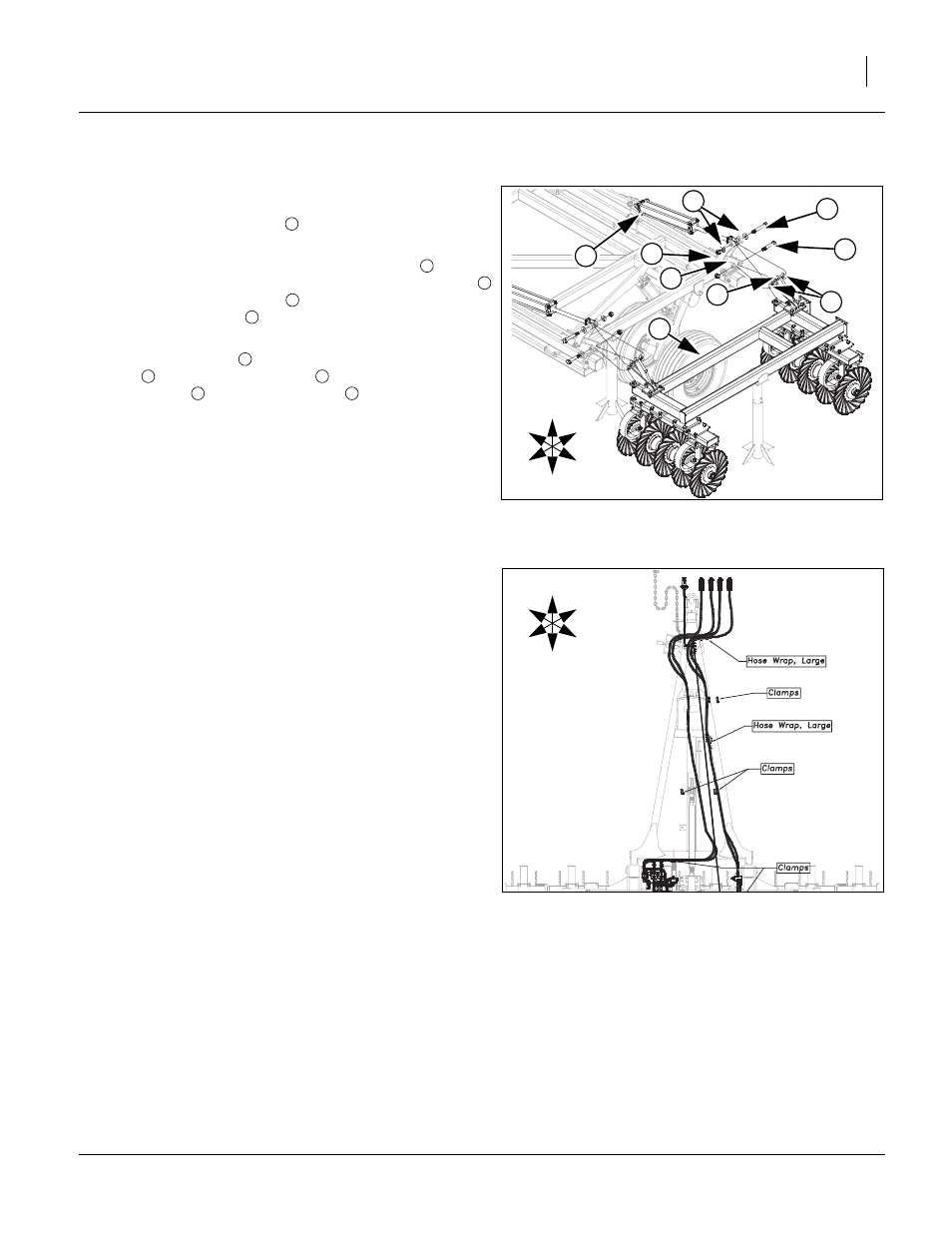

Figure 6
4000 Outer Wing
42074
U
D
F
B
L
R
2
4
8
7
5
1
8
3
6
1
2
1
3
2
4
5 6
7 8
