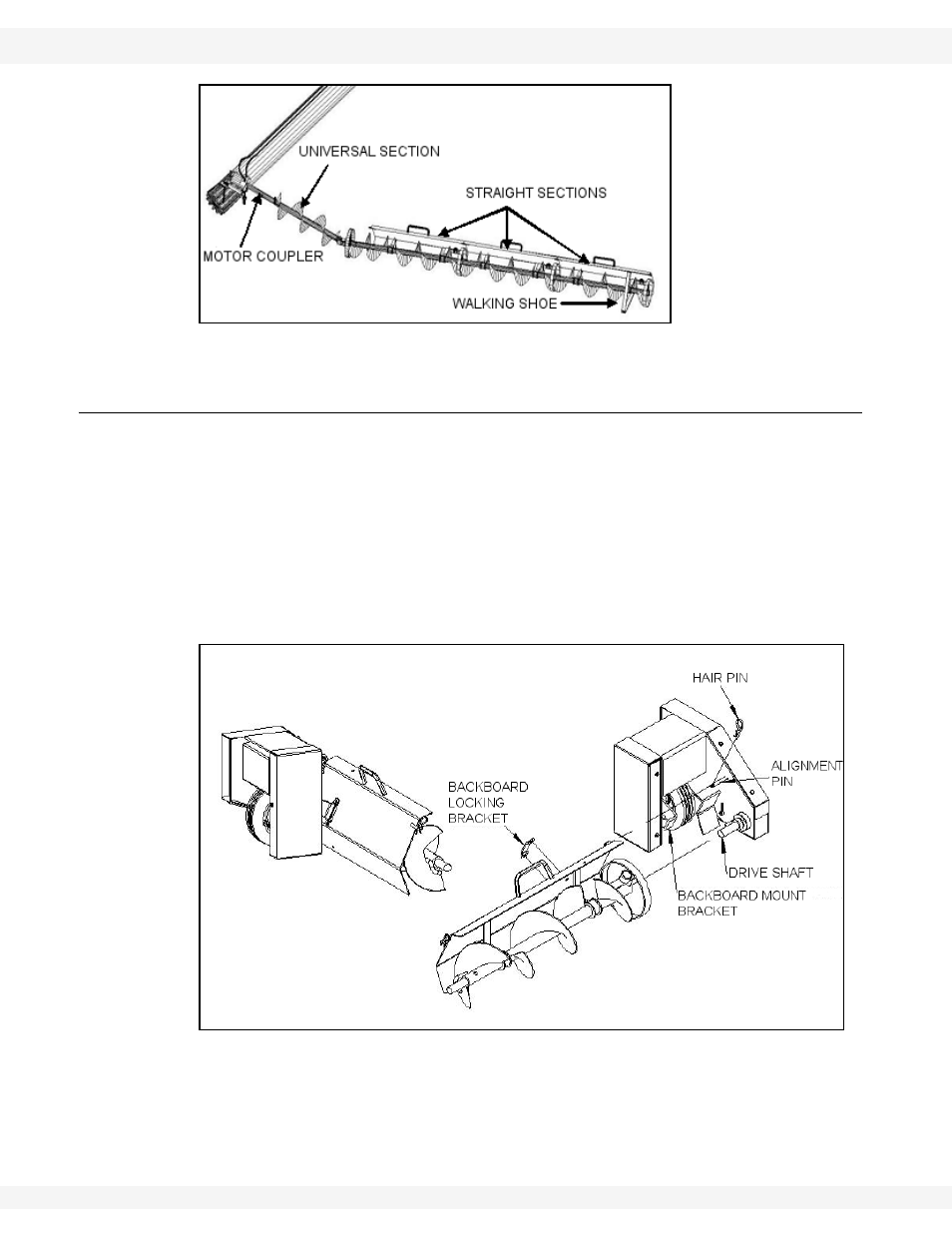

Figure 3.14 Complete Supersweep
3.4. SUPERSWEEP WHEEL MOVE ASSEMBLY (OPTIONAL)
Important: Assemble on a flat surface.
1. Slide the outermost Supersweep backboard over the drivewheel alignment
pin and driveshaft.
2. Insert the hairpin to prevent the backboard from sliding back.
3. Place the backboard locking bracket against the backboard and over the
backboard mount bracket.
4. Mark and drill the hole locations for bolting, or the location for welding the
locking bracket to the backboard.
Figure 3.15
