W HEATHEART - H YDROSTATIC B IN S WEEP 3. A SSEMBLY
S TANDARD , P ORTABLE , T RUCK M OUNT , & S UPER S WEEP 3.3. S UPERSWEEP A SSEMBLY
IM1 R3 21
3.3.2. A
SSEMBLY
1. Attach the special motor coupler to the hydraulic motor.
2. Assemble the u-joint section with the motor coupler.
3. Assemble the straight bin sweep section with the walking shoe at the end.
Add on extra straight sections as needed, making sure all sections are fully
interlocked and pinned, and the flighting sections line up to form one
continuous auger when twisted in place.
Note: In severe cases, extra walking shoes can be added to outer sections to prevent
tipping. If adding more sections, a larger 6.3 hp pump may be required.

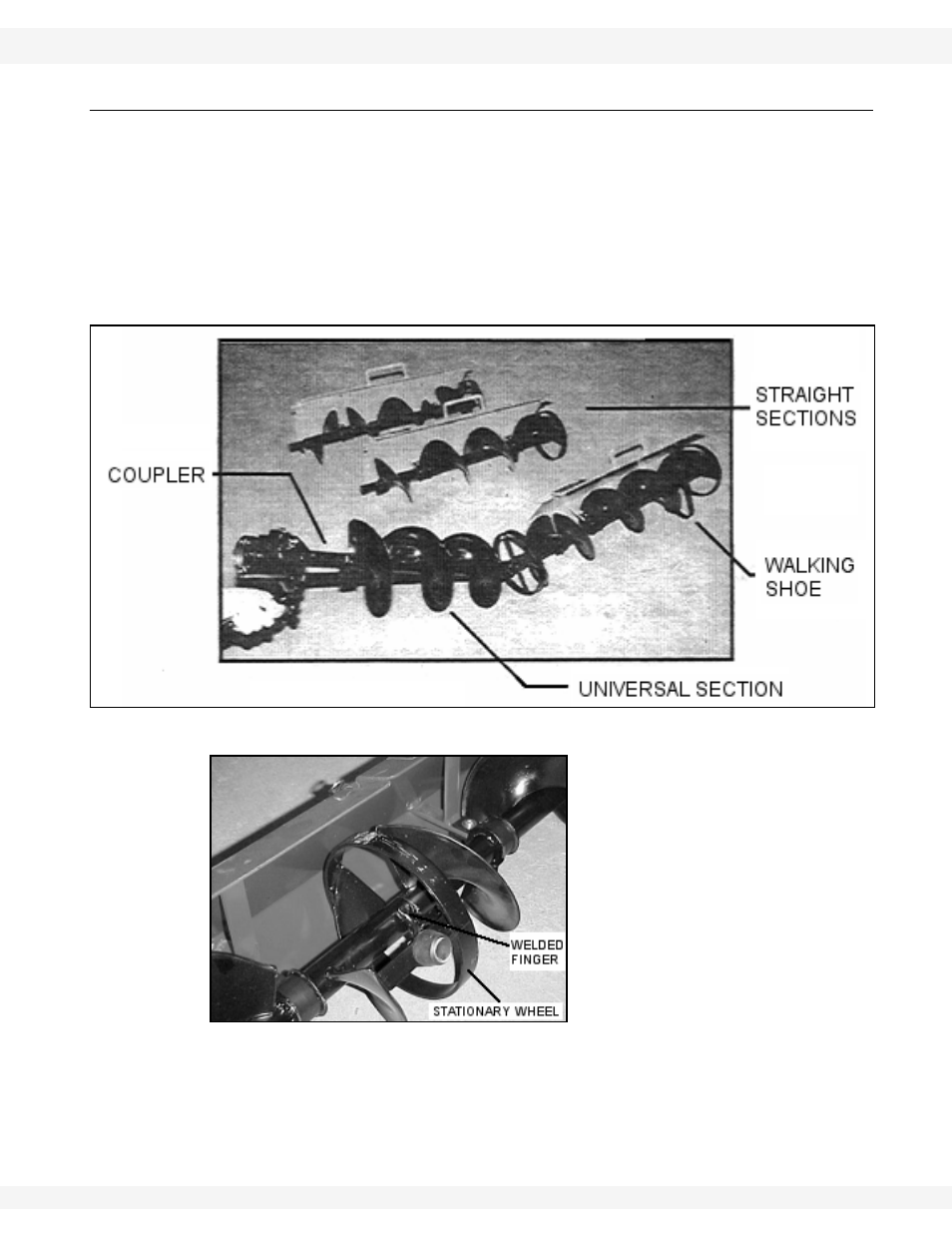

Figure 3.12
Figure 3.13
