3. A SSEMBLY W HEATHEART - H YDROSTATIC B IN S WEEP
3.2. H YDRAULIC P UMP K IT I NSTALLATION (P ORTABLE M ODEL ) S TANDARD , P ORTABLE , T RUCK M OUNT , & S UPER S WEEP
14 IM1 R3
2. Cut 3" off the center rod so that the end of the auger bearing to the center of
the pivot hole measures about 9”. Set the auger at the usual height for
loading trucks. Weld in the pivot bracket, level to the floor. The center of the
motor shaft should be about 3”-4” off the floor. Be careful that the pivot hook
does not touch the auger flighting when inserted. Refer to Figure 3.2.

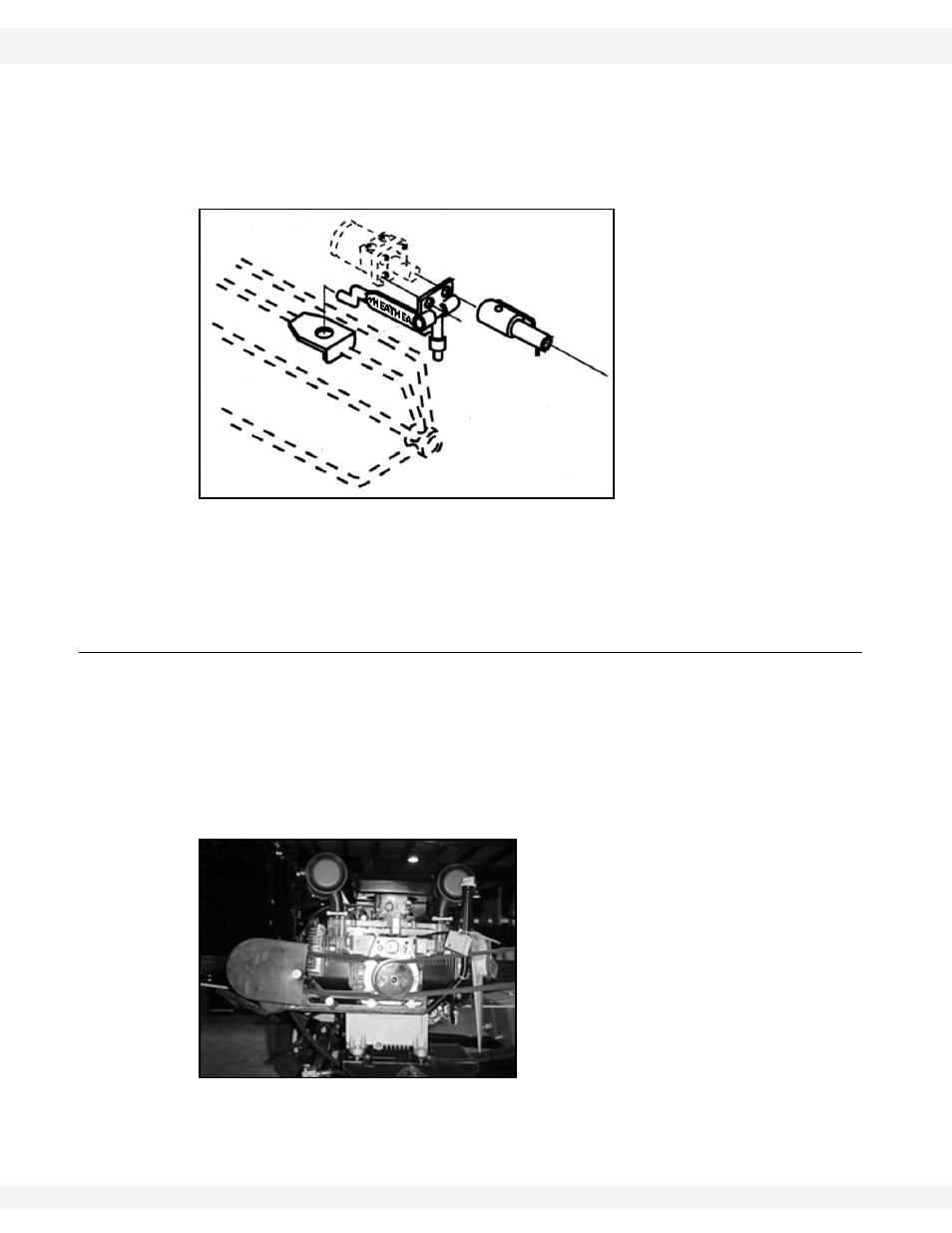

Figure 3.2 Mounting Spider on Center Top Cages
Note: The end of the auger bearing to the center of the pivot hole should measure
approximately 9”.
3.2. HYDRAULIC PUMP KIT INSTALLATION (PORTABLE
MODEL)
1. Place the single groove pulley (supplied) behind the grain auger drive pulley
on the gas/electric engine. In most cases, the pump bracket bolts directly to
the gas engine (see Figure 3.3). If using an electric motor or if otherwise
necessary, L brackets can be supplied to bolt the pump to the grain auger
motor mount.
Important: Pump placement may be changed, but the pump must run in a counterclockwise
direction (when facing the pump) within working speeds of 3000-3500 rpm.
Figure 3.3
