Page 10
Navigator Software User‟s Manual
Page 10 of 20

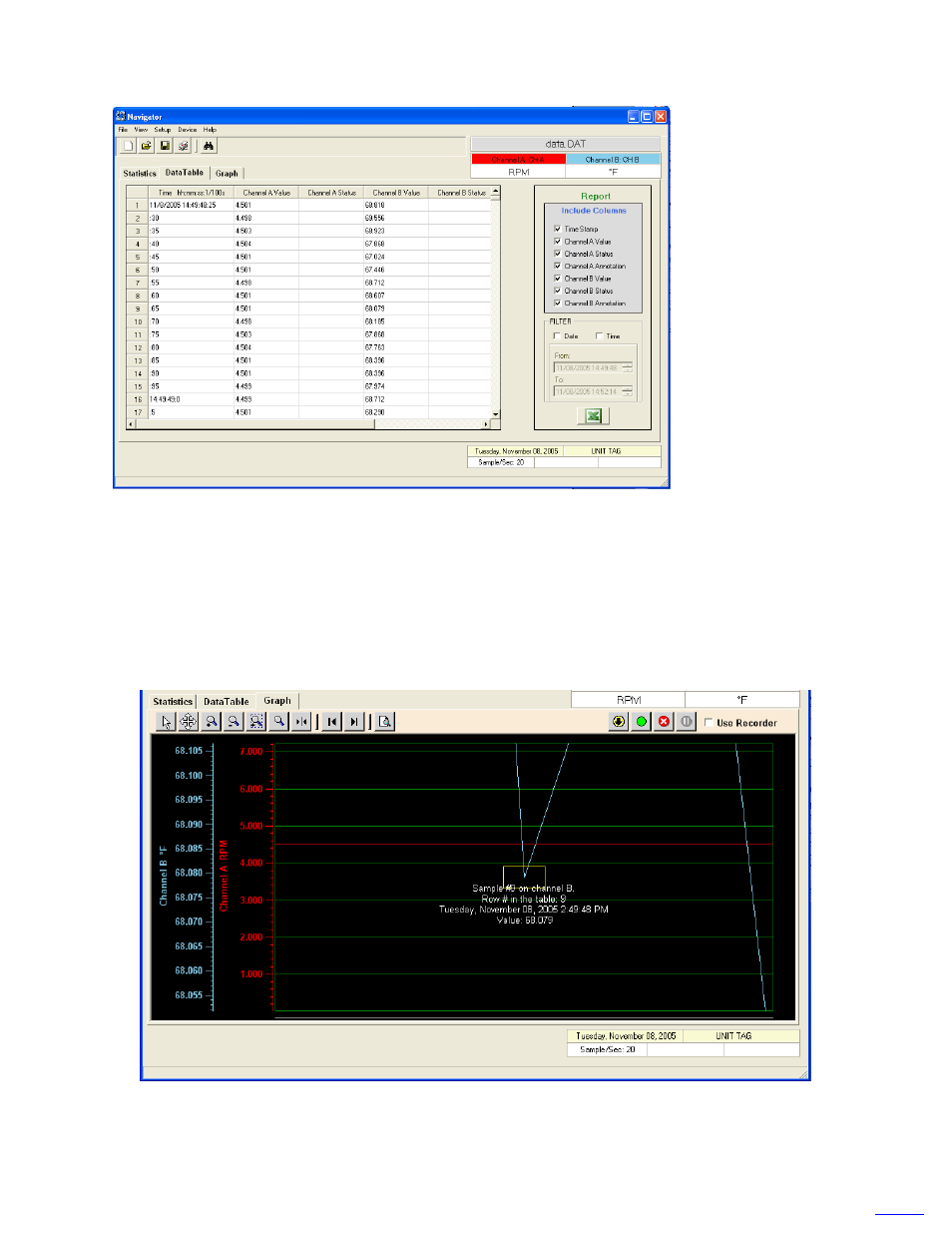

3.4 DATA TABLE WINDOW
The DataTable page shows the time and value of every data sample on each channel and any alarms
associated with them. This window is also used to export data directly into an Excel
TM
spreadsheet and can
be used to highlight a specific point on the graph.
3.4.1
JUMPING TO A SPECIFIC POINT ON THE GRAPH
If you double-click a value in any Channel Value column in the DataTable, the program will highlight that
point in the Graph window. The graph will be automatically scaled to show the unique point highlighted by
a rectangular box as shown below:
.
