Coleman DUAL OVERFL - Manual

Connect Frame to Tent
– Insert one end of main tent pole onto pin of
pin & ring system at tent corner. (illus. 3), (illus. 4)
– Go to opposite end of pole and gradually apply
pressure to the pole forming an arch until you
are able to insert the pin into the pole.
– Repeat for second pole. (illus. 3), (illus. 4)
– Repeat for second tent. (illus. 4)
DUAL OVERFLY XL ™ 10’x7’

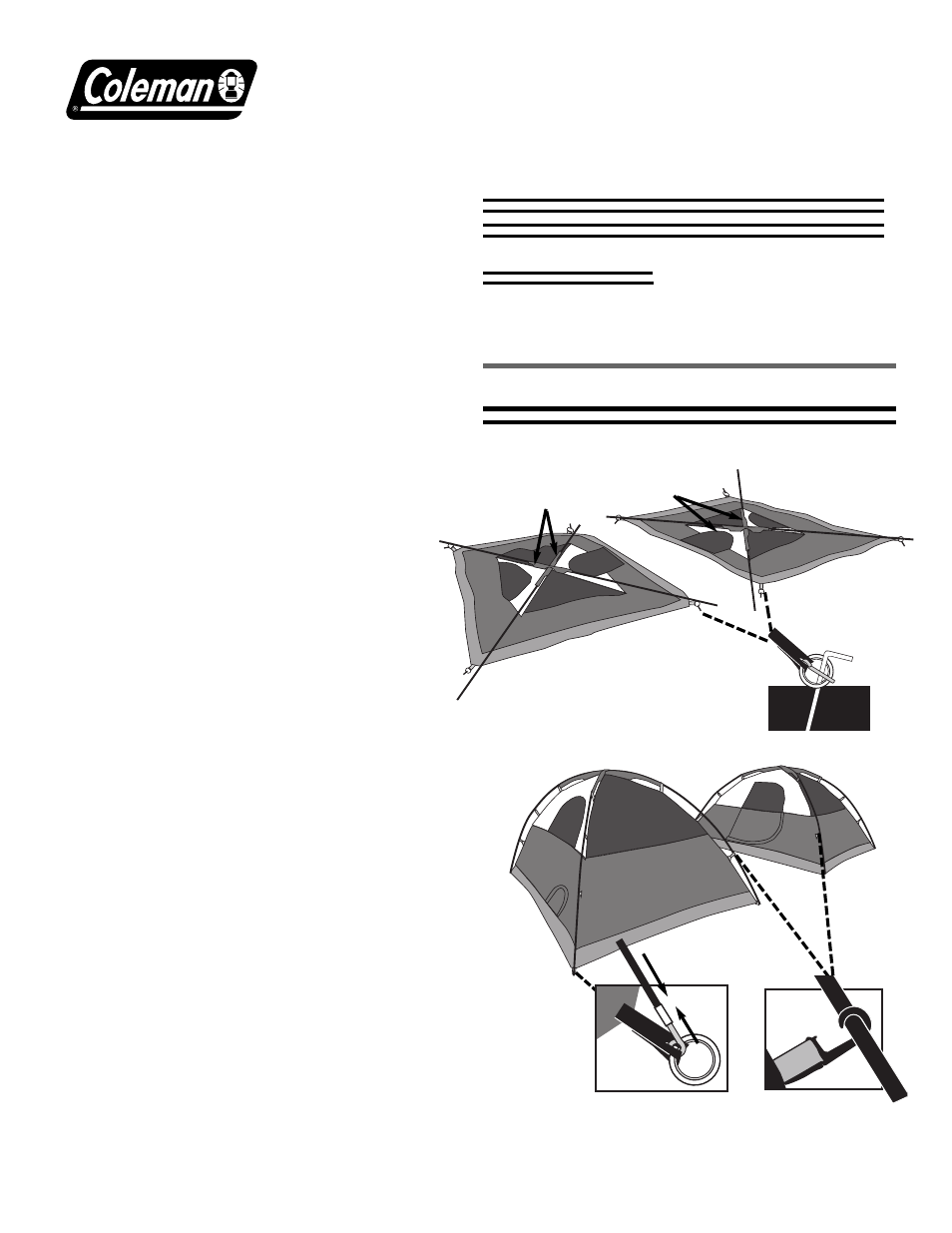

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tents where desired
with doors facing each other. Allow
aproximately 6’ between them.(illus. 1)
– Unzip doors.
– Partially stake down the tents using the rings of
the pin & ring system at the corners of the tent.
Keep the floor taut. (illus. 2) Do not fully stake
down, you may need to make adjustment s later.
– Assemble main tent poles (black) by
interlocking shock-corded poles. This will
make two long poles for each tent.
– Insert the poles diagonally into pole sleeves.
The center of the poles should cross forming an
“X” in the middle of tent. (illus. 1)
2
When You Are Ready To Set
Up Your Tent
–Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.
Center Ridge Pole Connecting Room (Gray)
Assembled black main tent poles
inserted through pole sleeves
Instructions apply to Part Number 9232-107
illus. 2
Tent stake
through ring
on stake loop
illus. 3
Assembled
tents without
rainflys
Part No. 9230-320
Part No. 9232-322
Part No. 9232-324
Part No. 9232-326
Main Tent Poles for 10x7 Dome Tents (Black)
Rainfly Poles for 10x7 Dome Tents (Black)
Side Pole Connecting Room (Black)
Rainfly 10x7 Dome Tents Part No. 9238-328
Doors
Attach Tent to Frame Using
Frame Clips
– Attach frame clips along the edges of tent to
frame poles. (illus. 3), (illus. 5)
– Make any adjustments to the tent corner
stakes that are needed.
3
illus. 5
Frame clips
illus. 4
Insert pin into
pole end
illus. 1
Tents positioned
with poles through
poles sleeves
