Figure 3
12” Rod
with Nipple
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
4of7

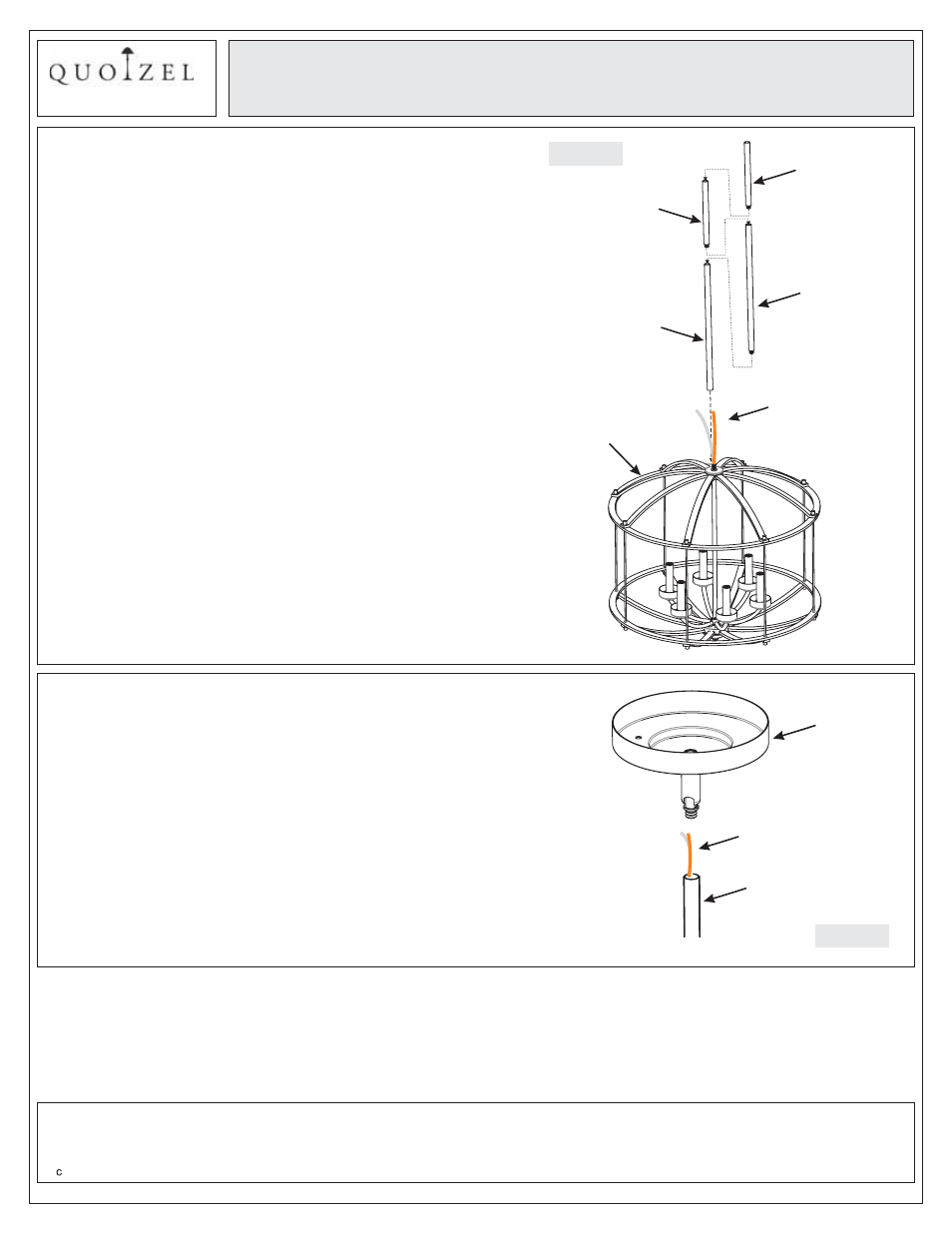

STEP 3 Assemble Rods
-
A. Determine the Rods (J/K/L) to be assembled to the Cage
according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (J/K/L) and then thread the chosen Rods (J/K/L) and
the Cage together. Hand tighten until snug.
6” Rod
6” Rod
12” Rod
Cage
Supply Wire and
Ground Wire
STEP 4 Assemble Ceiling Canopy to Upper
Rod
-
A. Pass Supply Wires and Ground Wire through the Ceiling
Canopy (H) and then thread the Ceiling Canopy (H) and
the Upper Rod together. Hand tighten until snug.
Ceiling
Canopy
Upper Rod
Supply Wire and
Ground Wire
Figure 4
Assembly Instruction Sheet #IS-TRY2824BA
For Style TRY2824BA
October2011
