Quoizel TY8602AN Taylor User Manual

Package contents, Installation instructions, Warnings and cautions

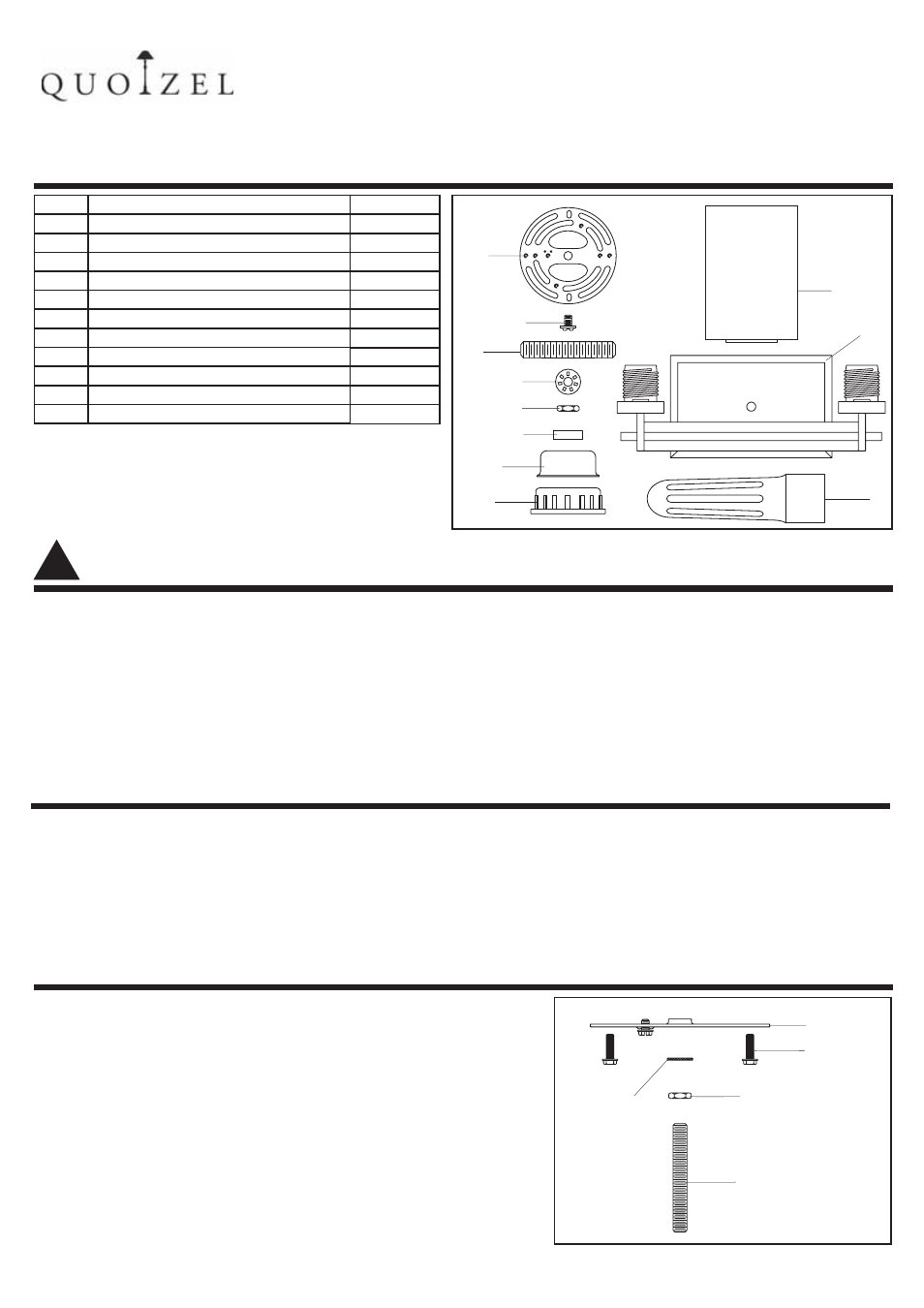

PACKAGE CONTENTS

INSTRUCTION SHEET IS TY8602

STYLE NUMBER TY8602AN,TY8602WT,TY8602C

ISSUED 08-2008

INSTALLATION INSTRUCTIONS

1 OF 2

Crossbar

Outlet Box
Screw

Lock Washer

Hex Nut

Nipple

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

WARNINGS AND CAUTIONS

PREPARATION

WARNING:
● Before beginning the installation, turn off electricity at the circuit breaker box or the main fuse box by
switching off the circuit breaker or removing the fuse.
CAUTIONS:
● These instructions are provided for your safety. It is very important that they are read completely before
the installation of your fixture. We strongly recommend that a professional electrician install the fixture.
● Disconnect fixture from the power source before replacing the bulb(s), making sure the bulb(s) had
sufficient time to cool down. DO NOT subject the lamp to any shock while lit as shattering of lamp may
result.

● Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement part.
● Estimated Assembly Time: 10

20 minutes

● Tools Required for Assembly (not included): Flathead screwdriver Phillips screwdriver, pliers, electrical
tape, wire cutters, safety glasses &2, 100 Watt Type A Medium Base Bulbs.
● Helpful Tools (not included): Wire Strippers.

STEP 1:

a Thread the Hex Nut onto the top end of the Nipple

Place

the Lock Washer over the top end of the Nipple and then
thread the Nipple into the center hole of the Crossbar

b. Adjust the Nipple and make sure there is proper length

extruded for the Fixture Body

c. Using pliers

thread the Hex Nut against the Crossbar and

tighten until snug

d. Secure the Crossbar to the Outlet Box with Outlet Box

Screws

Hand tighten until snug

Part

Description

Crossbar

Green Ground Screw

Nipple

Lock Washer

Hex Nut

Lock Ball

Socket Collar

Steel Collar

Shade

Quantity

1pc

2pcs

Fixture Body

Socket Collar Tool

1pc

Revised 2011-03-08
