Quoizel TRY2824BA Troy - Manual (Page 2)

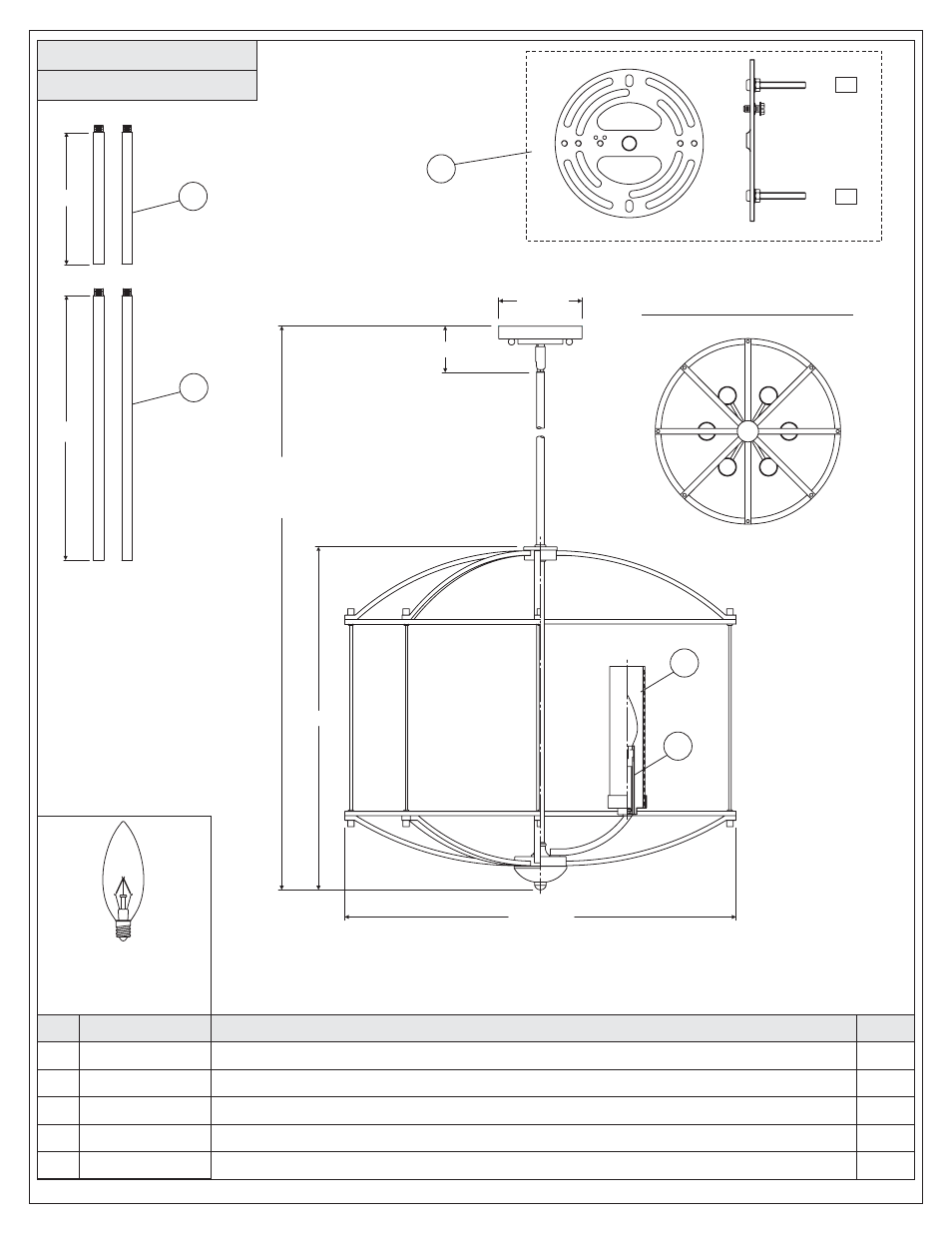

TRY2824BA
FINISH: ROYAL EBONY
PART NUMBER
M2310CCBA
9520KIT
9006EXBA
9 012EXBA
G3239SH
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2 "
REPLACEMENT PART DESCRIPTION
CANDLE COVER ROYAL EBONY 4"H
MTG HDW/CNPY ROYAL EBONY 5"D
ROD EXT ROYAL EBONY 6"L X .5"D
ROD EXT ROYL EBNY 12"L X .5"D
SHADE CLEAR GLS 2"D
REQ.
6
1
2
2
6
NO.
1
2
3
4
5
2of7
60”
OVERALL HEIGHT INCLUDES
(2) 6” AND (2)12” RODS
6”
12”
GND
2.4mm
13Ga
QUOIZEL R
SHADE ORIENTATION
24” Dia.
21”
3”
5” Dia.
(6)60W Candelabra
base bulbs
(not Supplied)
2
1
3
4
5
