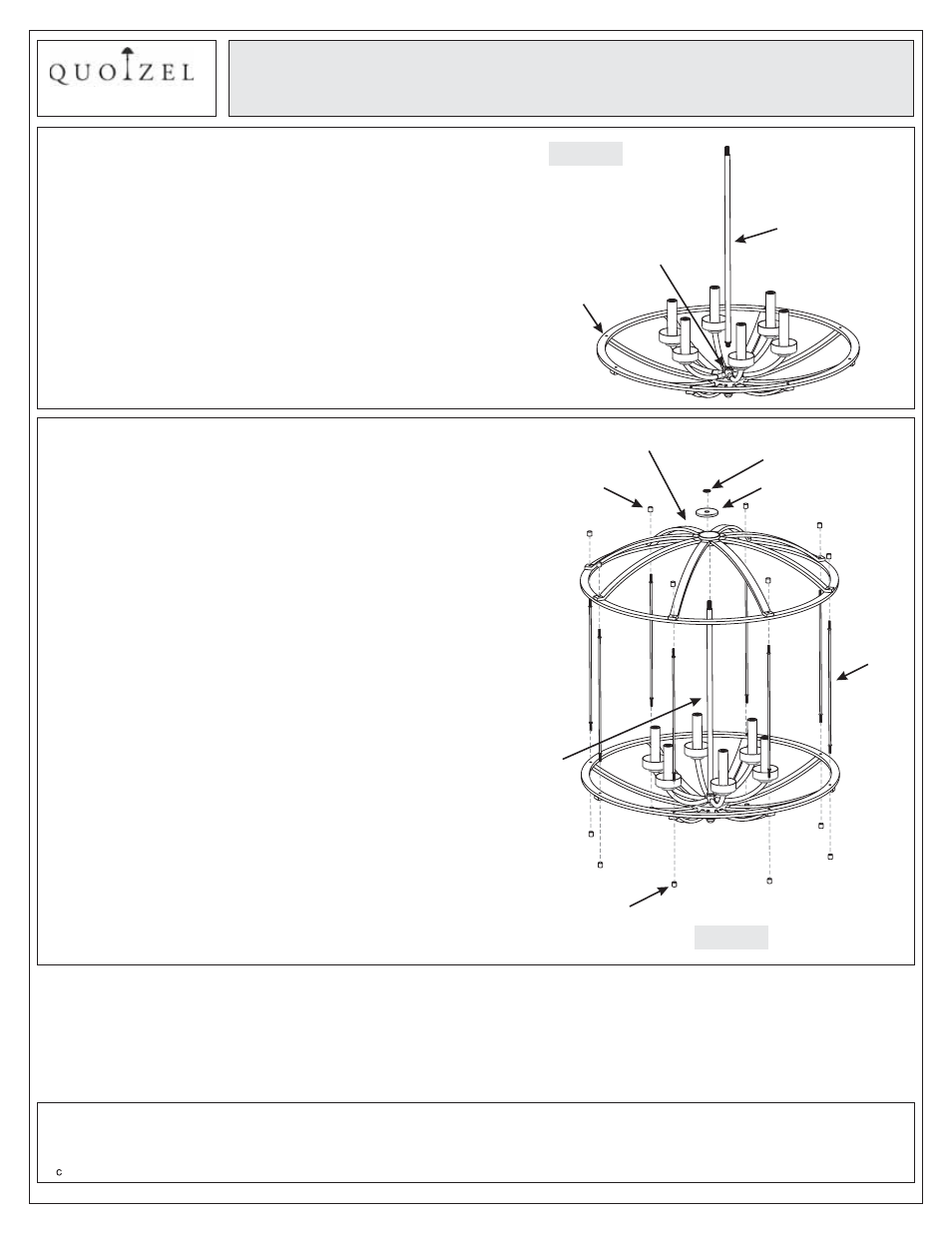

STEP 1 Assemble Center Stem to Socket
Assembly
-
A. Thread the beaded end of the Center Stem (M) into the
Coupling in the center of the Socket Assembly (G). Hand
tighten until snug.
Assembly Instruction Sheet #IS-TRY2824BA
For Style TRY2824BA
Center Stem
Coupling
Socket
Assembly
Figure 2
STEP 2 Assemble Side Rods, Socket
Assembly and Bracket
-
A. Place one end of the Side Rod (N) through the hole on the
edge of the Socket Assembly (G). Thread Mounting Balls
(E) onto the Side Rods (N) and hand tighten until snug as
shown.
B. Place the center hole of the Bracket (F) over the top end
of the Center Stem (M). Pass holes on the edge of the
Bracket (F) over the top ends of Side Rods (N). Secure by
threading Mounting Balls (E) onto the Side Rods (N).
Hand tighten until snug.
C. Pass the Cover (P) over the top end of the Center Stem
(M) and secure with the Lock Ring (O). Hand tighten until
snug.
Lock Ring
Cover
Mounting
Ball
Bracket
Side
Rod
Mounting
Ball
Center
Stem
