INSTALLATION INSTRUCTIONS
STYLE NUMBER: QMC402RL
5 OF 6

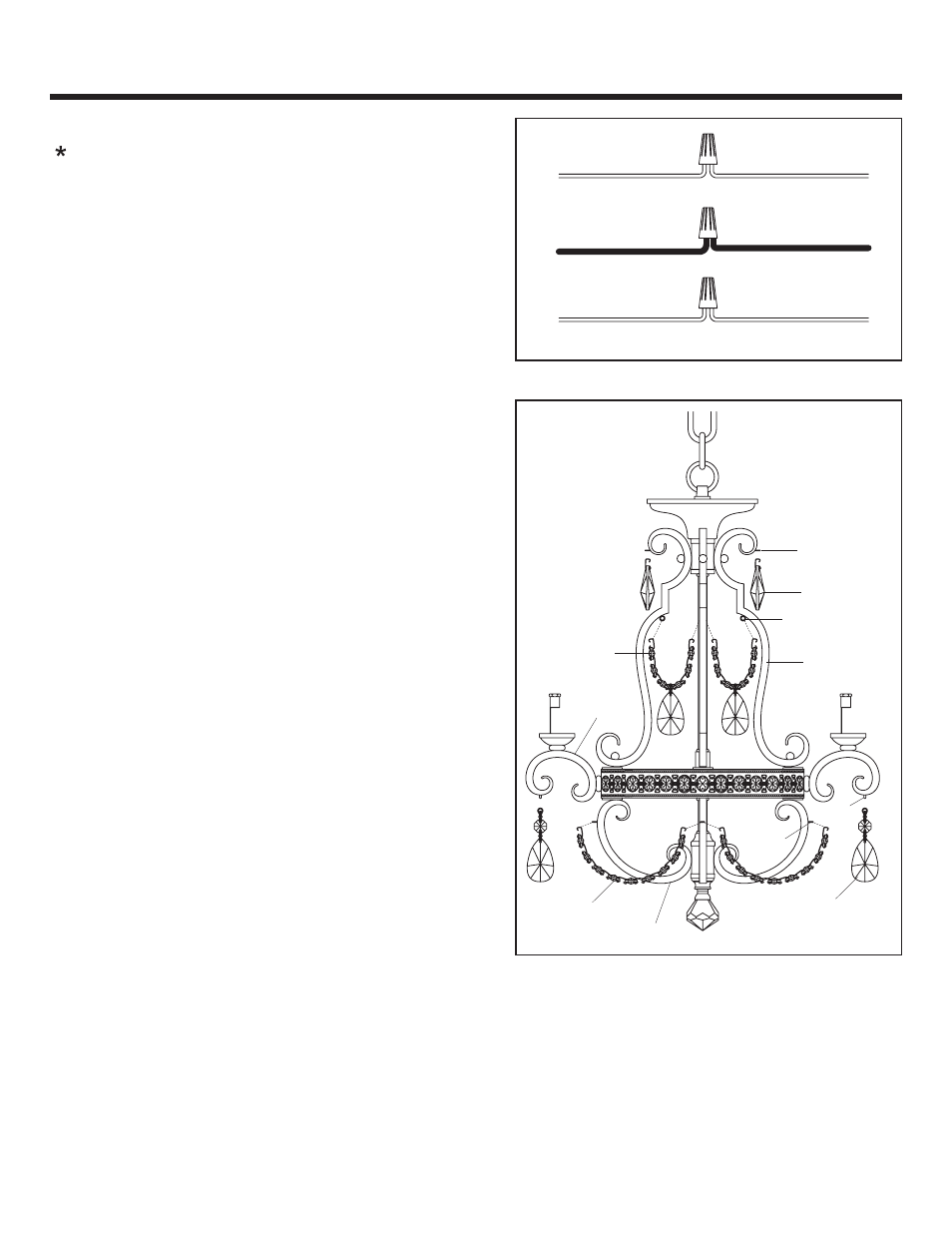

STEP 7:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
STEP 8:
a. Attach one end of the Crystal Cluster with Crystal Drop
to the Hanger on the Side Arm. Attach the another end
of the Crystal Cluster with Crystal Drop to the Hanger
on the next Side Arm.
b.
Bottom
Bottom
c. Attach Crystal Drop A to the Hanger on the top end of
the Side Arm.
d. Attach the Crystal Drop B to the Hanger on the end of
the Support Arm.
Attach one end of the Crystal Cluster to the Hanger on
the
Arm. Attach the another end of the Crystal
Cluster to the Hanger on the next Arm.
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
Use Wire Connectors (not supplied) to connect the
wires.
Crystal Drop A
Hanger
Hanger
Side Arm
Hanger
Hanger
Crystal Cluster
with Crystal Drop
Crystal Cluster
Crystal Drop B
Support
Arm
Bottom Arm
