● Before beginning installation of product, make sure all parts are present. Compare parts with package contents
list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement part.
● Estimated Assembly Time: 30 - 45 minutes
● Tool Required for Assembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers, Electrical tape,
Wire cutter, Safety glasses and (4) 60W B10 candelabra base bulbs
● Helpful Tools (not included): Wire strippers.
.
PREPARATION
STYLE NUMBER: QMC402RL
INSTALLATION INSTRUCTIONS

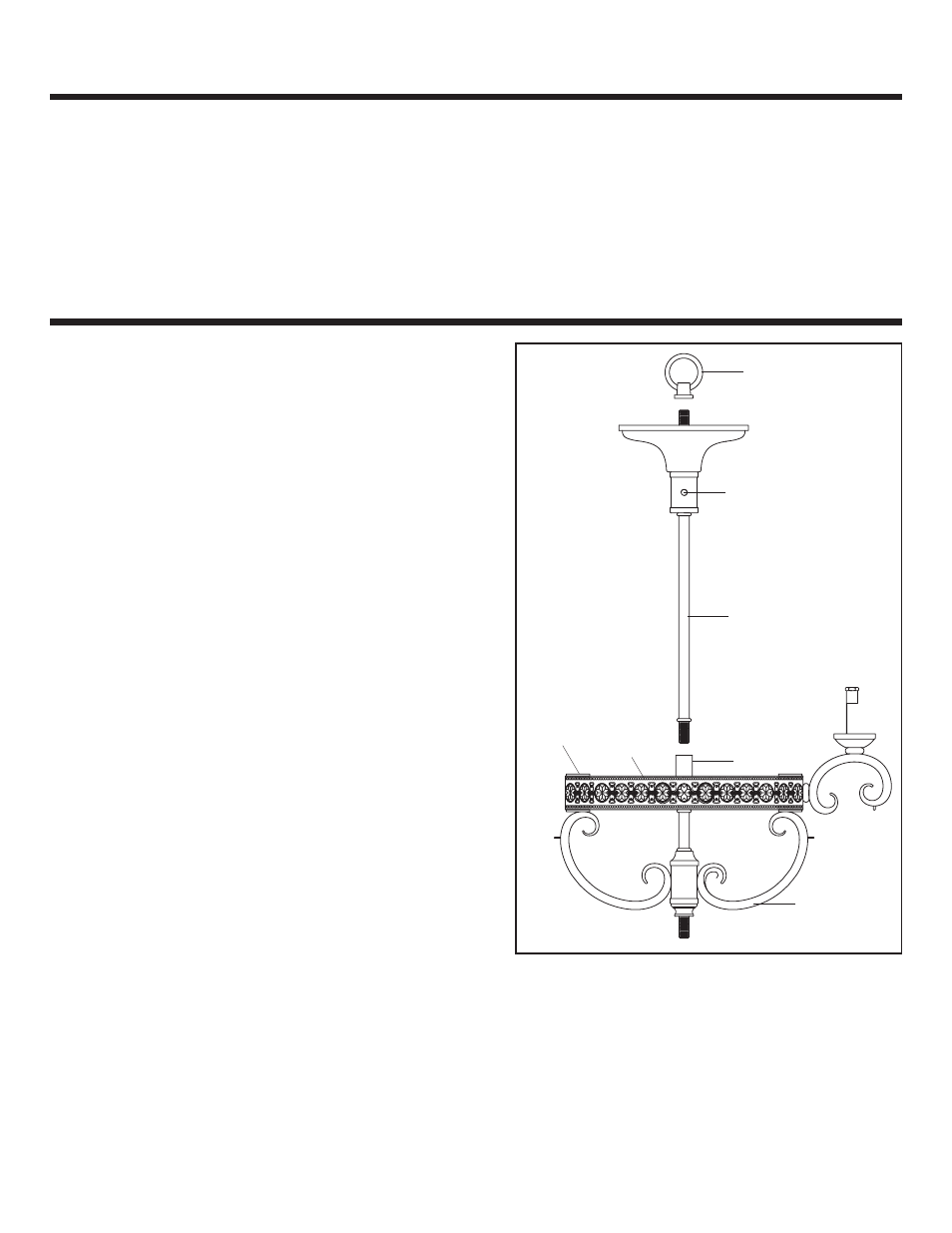

STEP 1:
a. Screw the beaded end of the Center Rod Assembly into
the Coupling on the top center of the Socket Assembly.
Please line up Mounting Holes on the side of the Center
Rod Assembly and the Tabs at the top edge of the Ring
before tighten them together until snug.
b. Thread the Fixture Loop onto the nipple on the top
center of the Center Rod Assembly. Hand-tighten until
snug.
Fixture Loop
Mounting Hole
Center Rod
Assembly
Coupling
Tab
Ring
Socket
Assembly
