4 OF 6
INSTALLATION INSTRUCTIONS

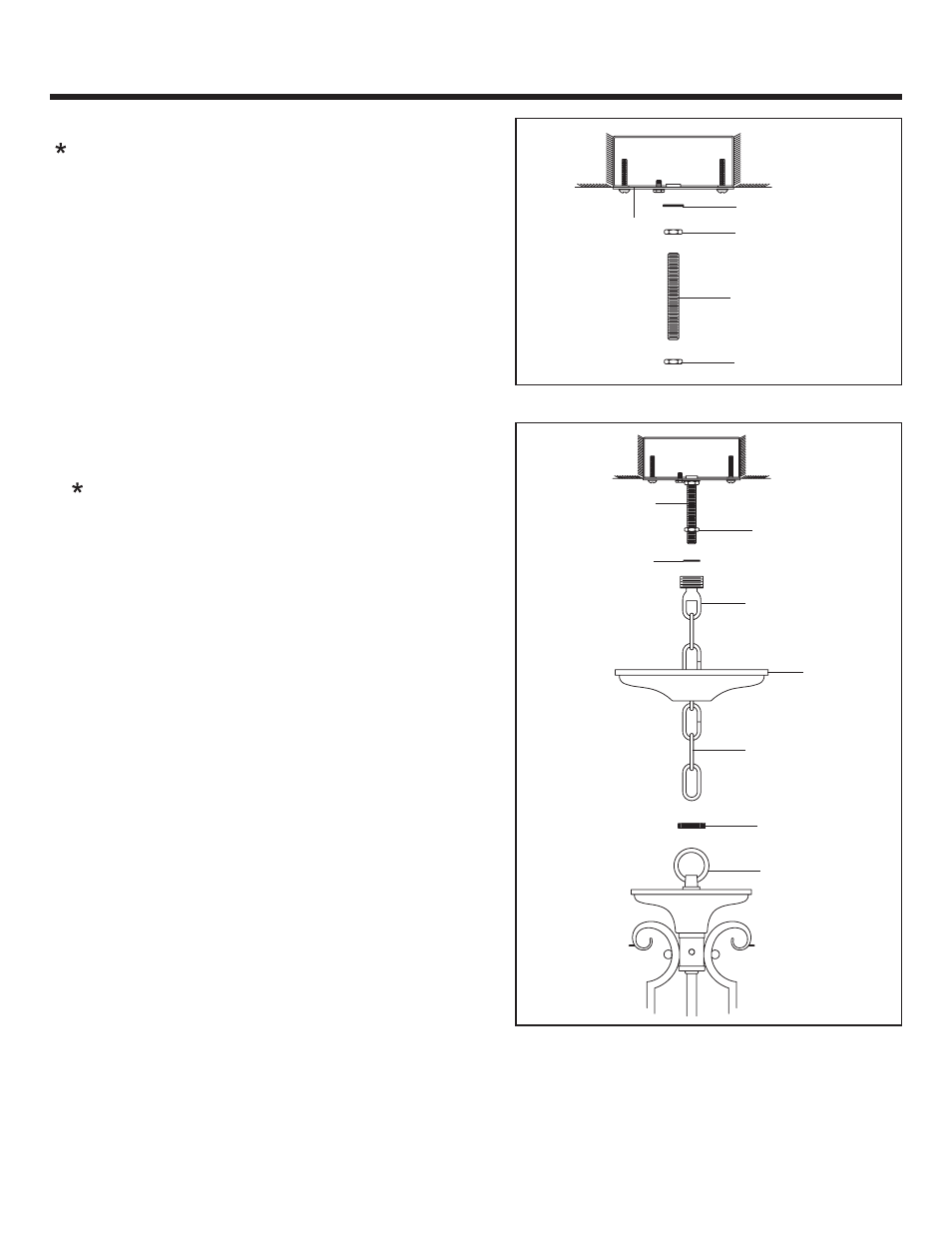

STEP 5:
a. Thread one Hex Nut onto top end of the Nipple.
b. Place one Lock Washer over the top end of the Nipple
and then thread the Nipple into the center lock hole of
the Crossbar.
c. Using pliers, thread the Hex Nut against the Crossbar
and hand-tighten until snug.
d. Thread another Hex Nut onto the bottom end of the
Nipple.
Lock Washer
Crossbar
Hex Nut
Nipple
Hex Nut
Pliers is required on this step.
STYLE NUMBER: QMC402RL
STEP 6:
a. Adjust the Fixture Chain to your desired length by
removing the links if needed.
Please note that depends on chain material
thickness, you might be required to use chain pliers to
spread links open.
b. Pull the supply wires through the Fixture Chain
alternating links. And then pull the wires through the
following components in turn:
Canopy Lock Ring, Ceiling Canopy, Canopy Chain
Loop, Lock Washer, and Nipple.
c. Place Lock Washer over the end of the Nipple and
thread the Canopy Chain Loop onto the end of the
Nipple.
d. Using pliers, thread the Hex Nut against the Canopy
Chain Loop and tighten until snug.
e. Attach one end of the Fixture Chain onto the Fixture
Loop and attach the another end of the chain onto the
Canopy Chain Loop.
f. Refer to STEP 7 - Wire Connections to connect wires.
g. Push the Ceiling Canopy upward over the Outlet Box.
h. Thread the Canopy Lock Ring onto the Canopy Chain
Loop and tighten until snug to secure the Ceiling
Canopy.
Nipple
Lock Washer
Canopy Chain Loop
Ceiling
Canopy
Fixture Chain
Canopy Lock Ring
Hex Nut
Fixture Loop
