Page 3
3 OF 6
INSTALLATION INSTRUCTIONS

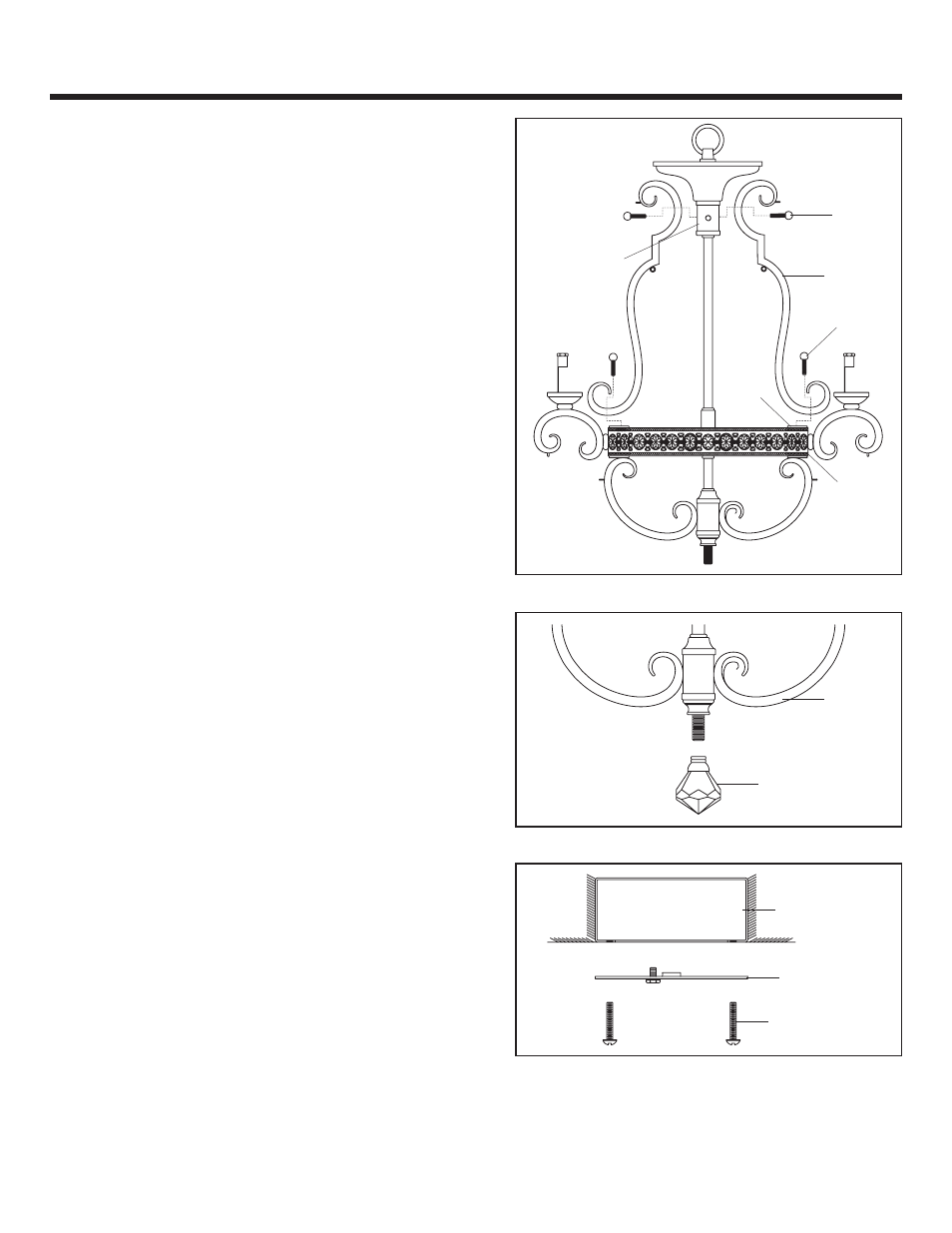

STEP 2:
a. Locate the Side Arms. Line up the holes on the Side
Arm onto the mounting holes on the side of the Center
Rod Assembly and the Tabs at the top edge of the Ring.
Thread the Lock Screws into the mounting holes to
secure it. Hand-tighten until snug.
STEP 3:
a. Thread the Crystal Finial onto the nipple on the bottom
center of the Socket Assembly. Hand-tighten until
snug.
STYLE NUMBER: QMC402RL
Lock
Screw
Lock
Screw
Side Arm
Center Rod
Assembly
Tab
Ring
Socket
Assembly
Crystal Finial
STEP 4:
a. Secure the Crossbar onto the Outlet Box with Outlet
Box Screws. Tighten until snug.
Outlet Box
Crossbar
Outlet Box
Screw
