Assembly Instruction Sheet #IS-PLR2820PN
For Style PLR2820PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

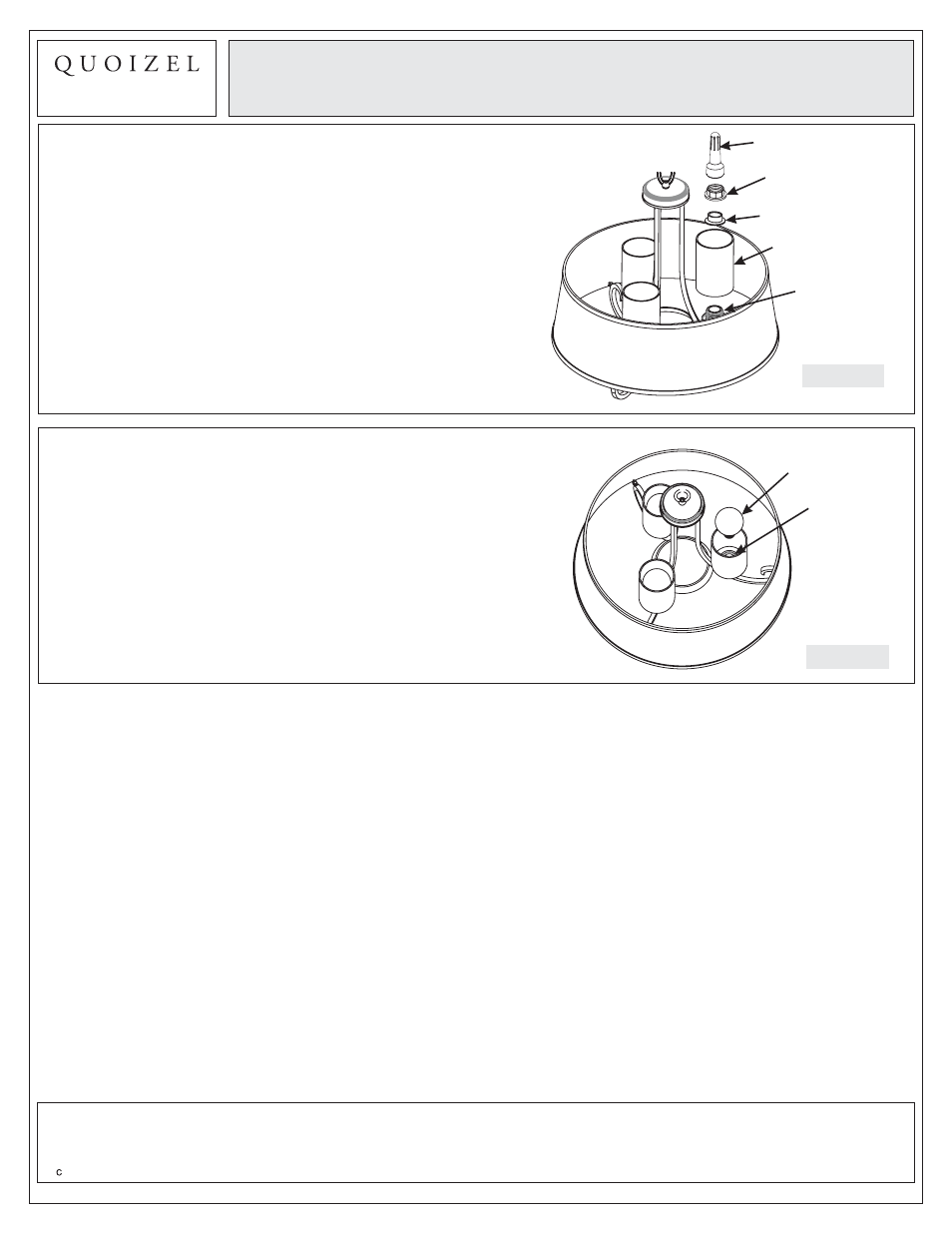

STEP 11 Install Glass Shade
-
A. Place the Glass Shade (Q) and Steel Collar (N) over the
Socket and secure by using Socket Collar Tool (P) threading
the Socket Collar (M) onto the Socket. Hand tighten until
snug.
Socket Collar
Glass Shade
Socket
Figure 12
STEP 12
- Install Bulb
A. This fixture uses standard bulbs with a standard screw
base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Socket
Bulb
Figure 13
Steel Collar
Socket Collar Tool
