Assembly Instruction Sheet #IS-PLR2820PN
For Style PLR2820PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
STEP 1
- Attach Fixture Loop to Socket
Assembly
A. Thread the Fixture Loop (I) onto the nipple on the top
center of the Socket Assembly (K). Hand tighten until
snug.

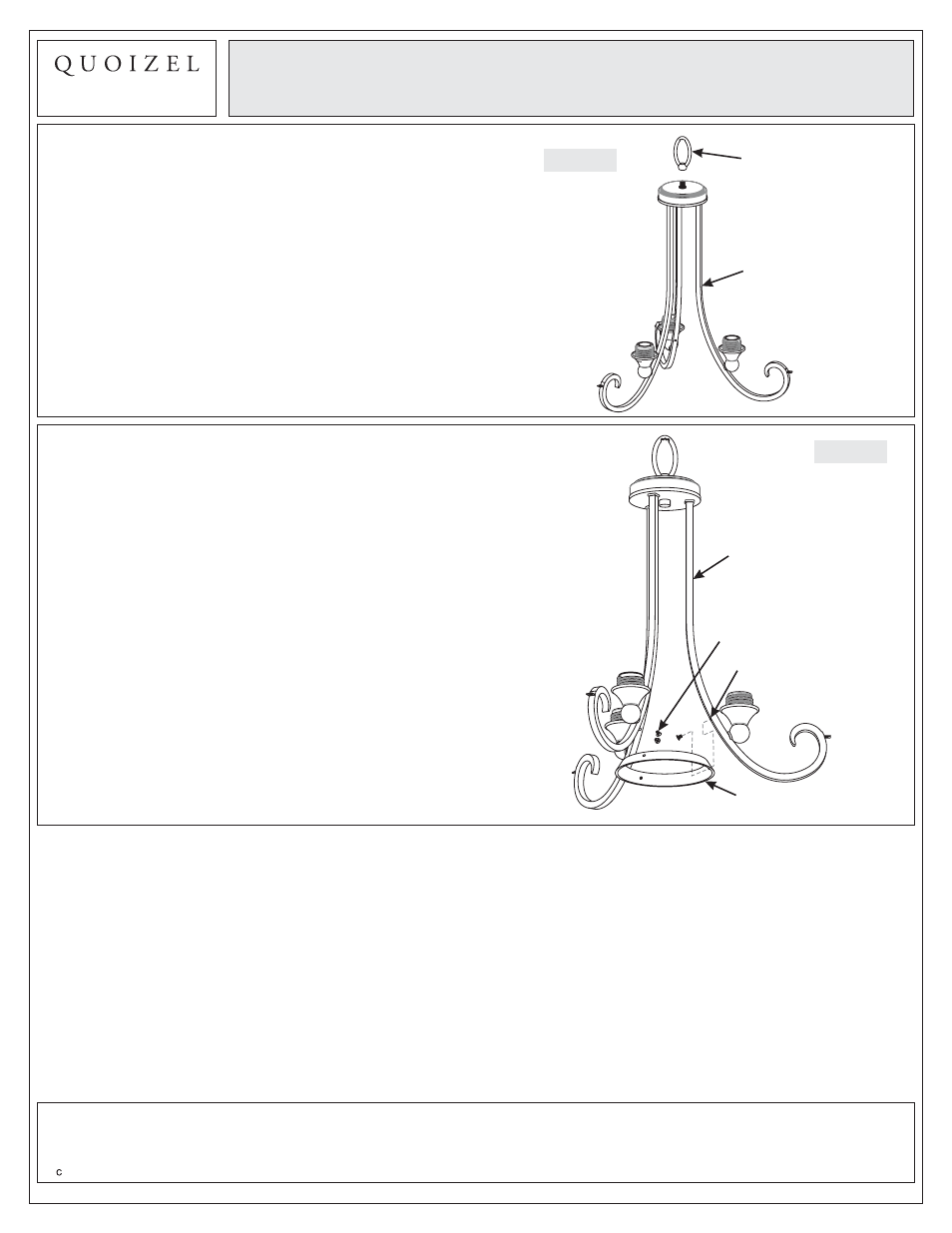

Figure 1 Fixture Loop
Socket Assembly
STEP 2
- Attach Ring to Socket Assembly
A. Line up the holes on the Ring (O) to the Mounting Holes
on the side of the Support Arms. Secure by threading
Lock Screws (J) into the Mounting Holes. Hand tighten
until snug with screwdrivers.
Figure 2
Mounting Hole
Lock Screw
Support Arm
Ring
