Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
6of7
September2013
Assembly Instruction Sheet #IS-PLR2820PN
For Style PLR2820PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

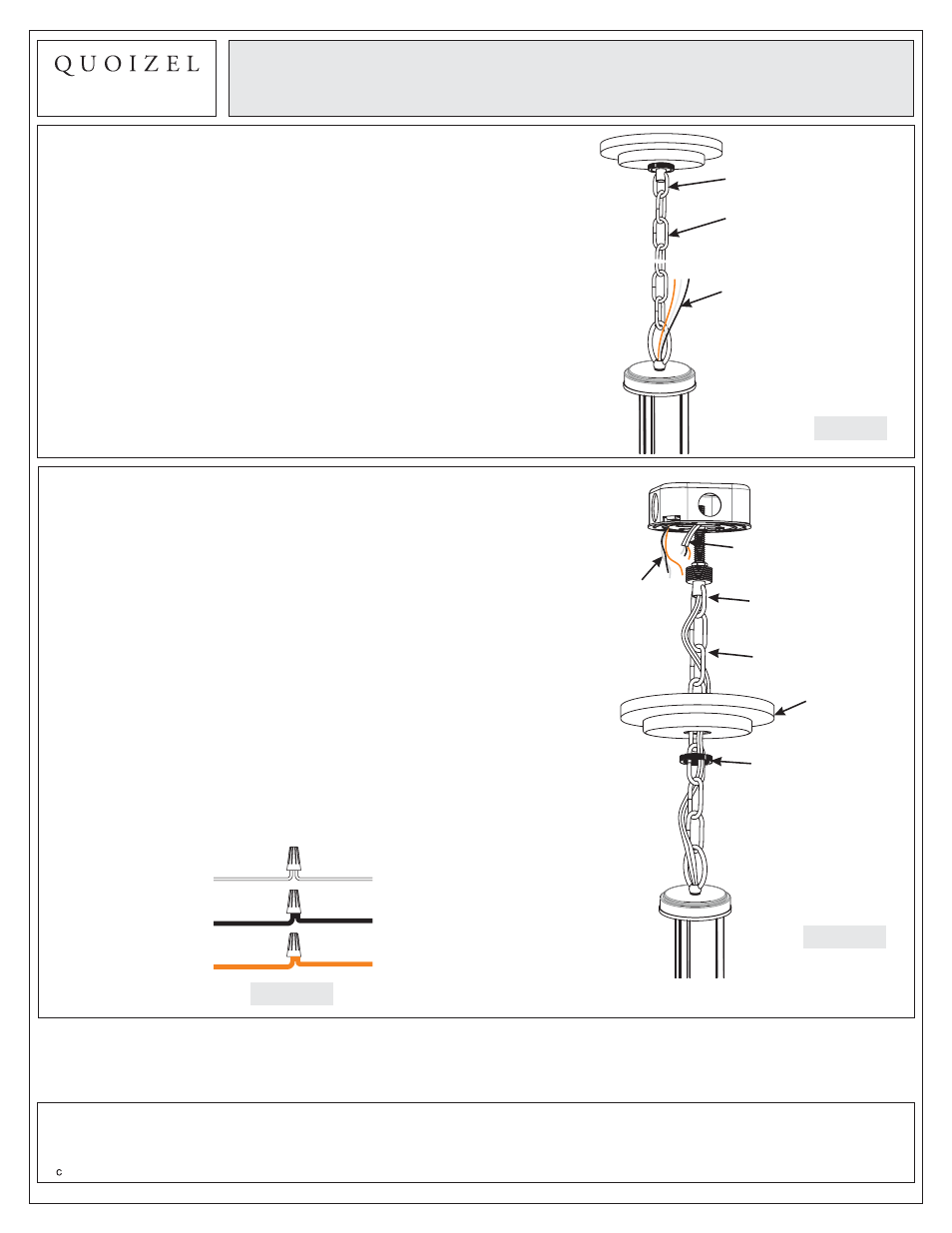

Figure 9
Supply Wire
and Ground Wire
Fixture Chain
Canopy Chain
Loop
STEP 9 Pass Supply Wires through Fixture
Chain
-
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.
STEP 10
- Make Wire Connections
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain (H).
B. Push all slack fixture wire through Canopy Chain Loop (F)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to Ribbed
Side Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Smooth Side Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 7.
Figure 11
Canopy Chain Loop
Fixture Chain
Supply Wire
and Ground
Wire from
Outlet Box
Ceiling
Canopy
Canopy Lock Ring
Supply Wire and
Ground Wire
White wire from supply
Ribbed side
wire from fixture
Black wire from supply
(or Red)
Smooth side
wire from fixture
Ground wire from supply Ground wire from fixture
Figure 10
