Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
4of7
September2013
Assembly Instruction Sheet #IS-PLR2820PN
For Style PLR2820PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

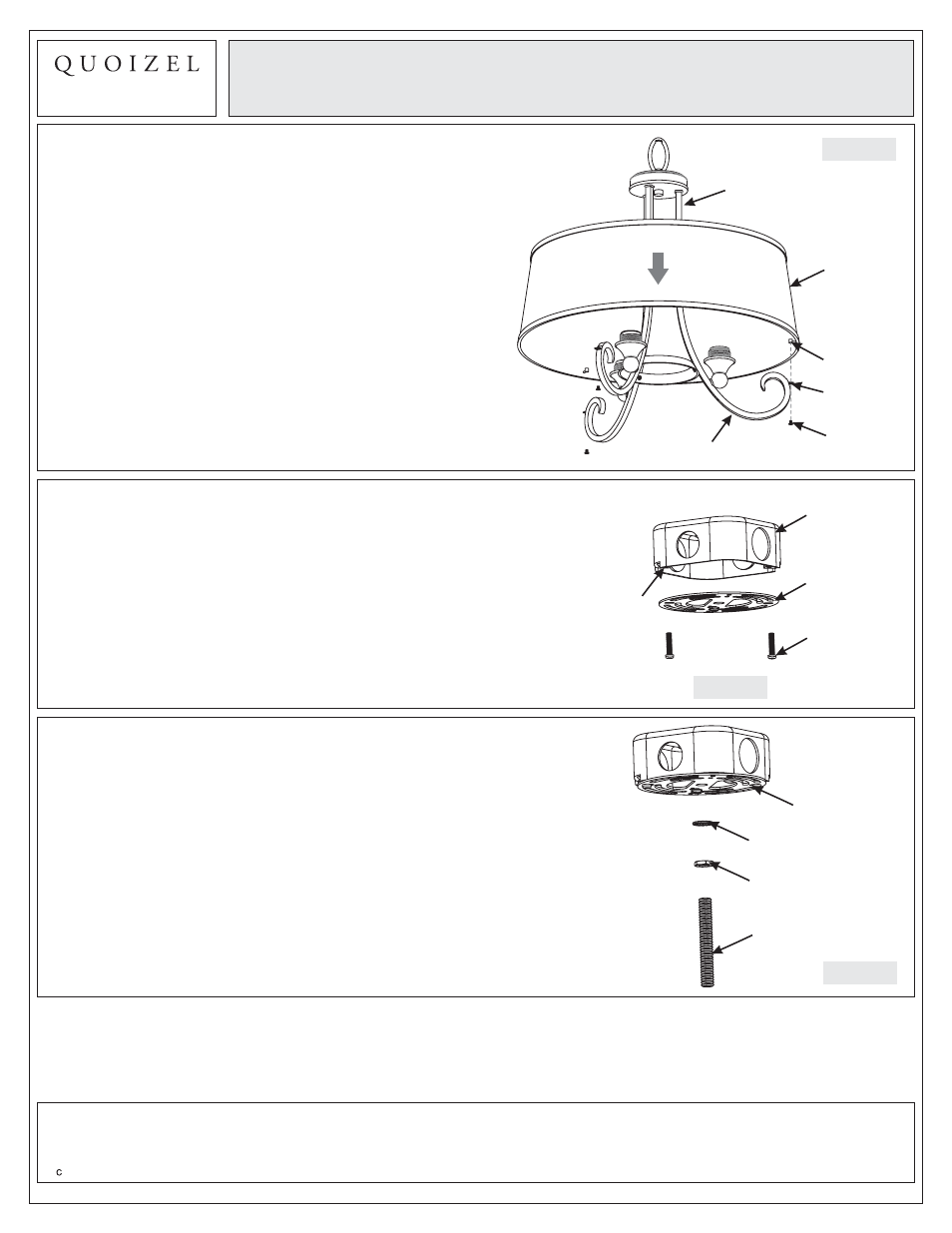

STEP 3 Install Organza Shade
-
A. Place the Organza Shade (L) from the top of the Socket
Assembly (K). Attach the Mounting Holes on the bottom
edge of the Organza Shade (L) to the Tabs on the side
of the Support Arms. Secure by threading Lock Screws
(J) into the Mounting Holes on the Organza Shade (L).
Hand tighten until snug.
Figure 3
Socket Assembly
Organza
Shade
STEP 4
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 4
Crossbar
Outlet Box
Mounting
Hole
Lock
Screw
Support Arm
Tab
Mounting
Hole
Figure 5
STEP 5 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
