Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
7of7
Assembly Instruction Sheet #IS-TFLU2822K
For Style TFLU2822K

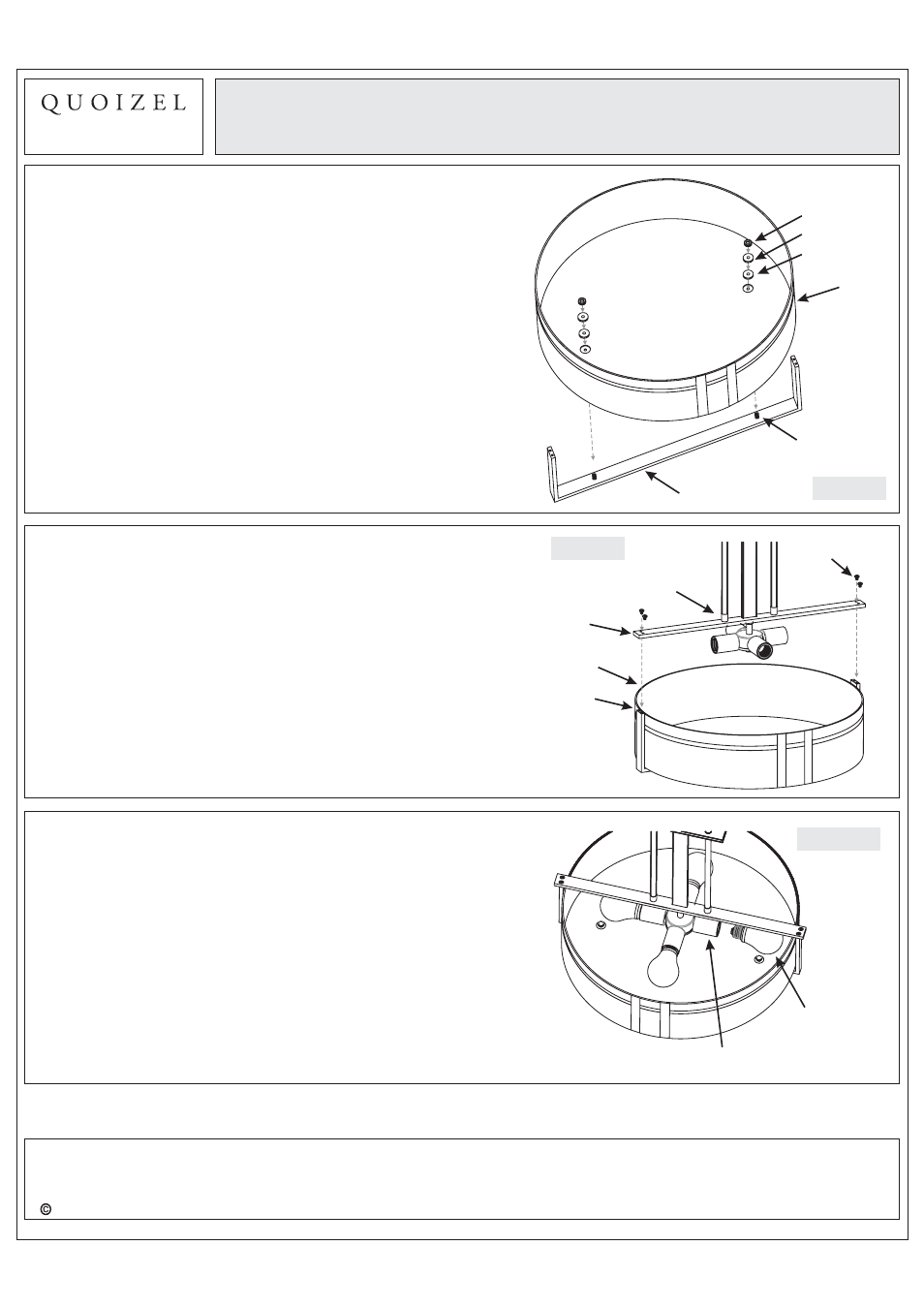

STEP 8 Attach Shade to Shade Holder
-
a. Attach the Shade (L), Rubber Washer (K) and Flat
Washer (J) to the Shade Holder (H) and secure with
Knurled Nut (M). Hand tighten until snug.
Knurled Nut
Shade
Figure 10
Figure 11
Shade
Socket
Assembly
STEP 9 Attach Shade to Socket Assembly
-
A. Lift the Shade (L) with Shade Holder (R) upward and pass
the Bolts on the Shade Holder (R) through the holes on the
Bar of the Socket Assembly (P). Secure by threading Screw
(N) onto the Bolts. Hand tighten until snug.
Shade Holder
Screw
Figure 12
Bulb
Socket
STEP 10 Install Bulb
-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your lamp island fixture is now assembled and ready to use.
Enjoy!
Lock Hole
Bar
November2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Flat Washer
Rubber Washer
Screw
