Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
5of7

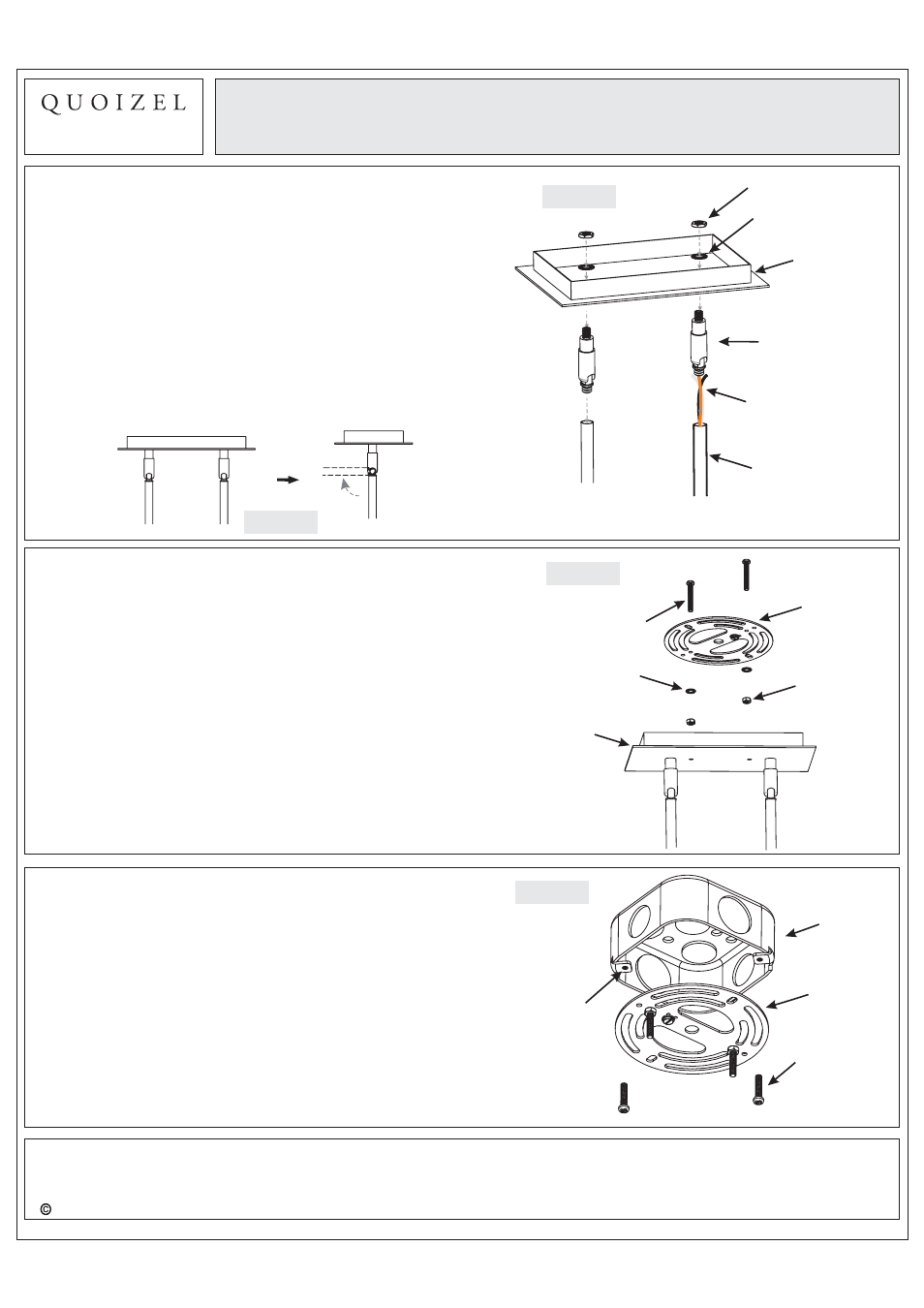

Assembly Instruction Sheet #IS-TFLU2822K
For Style TFLU2822K
Figure 5
Crossbar
Mounting Screw
Small
Lock Washer
Small
Hex Nut
Ceiling
Canopy
STEP 4
- Attach Mounting Screws, Small Lock
Washers and Small Hex Nuts to
Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (I).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Small Lock Washers (C) and thread
Small Hex Nut (D) onto the Mounting Screws (B). Hand
tighten until snug.
STEP 5
- Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Crossbar
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Figure 6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
November2011
STEP 3 Assemble Ceiling Canopy
-
A. Pass the Supply Wires and Ground Wires through Swivels
, the Ceiling Canopy, Lock Washers and Hex Nuts.
B. Screw the Swivels into the top end of the Upper Rod.
Please be sure the directions of two Swivels are the same
before hand tighten until snug. This allows the lamp to
adjust angles after assembly. (Refer to Figure 3)
C. Pass the Ceiling Canopy and Big Lock Washers over the
top end of the Swivels. Secure by threading Hex Nuts onto
Swivels. Tighten until snug.
Figure 4
Rotate
90 Degree
Front View Side View
Figure 3
Upper Rod
Supply Wire and
Ground Wire
Ceiling
Canopy
Lock Washer
Hex Nut
Swivel
