Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2011 QuoizelInc.

4of7

Assembly Instruction Sheet #IS-TFLU2822K

For Style TFLU2822K

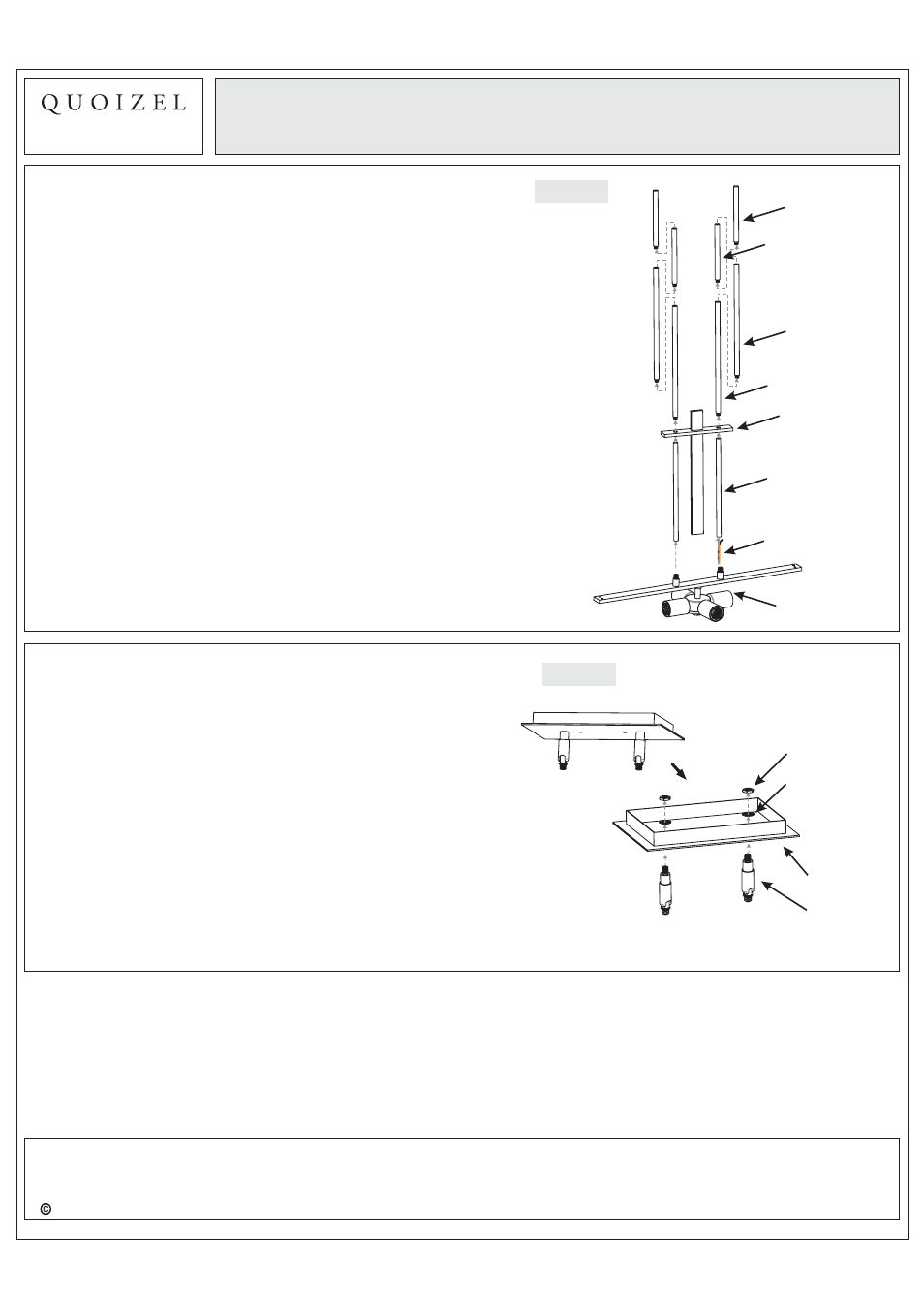

STEP 1 Assemble Rods

A. Determine the Rods (F/G) to be assembled according to

your hanging height.

B. Pass Supply Wires and Ground Wire through the 12” Rod

(G), the Cross Part (O) and the chosen Rods (F/G).

C. Thread one end of the 12" RodS (G) onto the nipple on the

top of the Socket Assembly (P). Hand tighten until snug.

D. Place the Cross Part (O) onto the top ends of 12” Rods

(G). Thread the chosen Rods (F/G) into the top ends of the
12” Rods (G) as shown. Hand tighten until snug.

12” Rod

6” Rod

12” Rod

Cross Part

Socket
Assembly

Supply Wire and
Ground Wire

Figure 1

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

November2011

Figure 2

Ceiling
Canopy

Lock Washer

Hex Nut

Swivel

STEP 2

Disassemble Ceiling Canopy

A. Disassemble every single parts pre-assemled on the

Ceiling Canopy as shown in the illustration.
