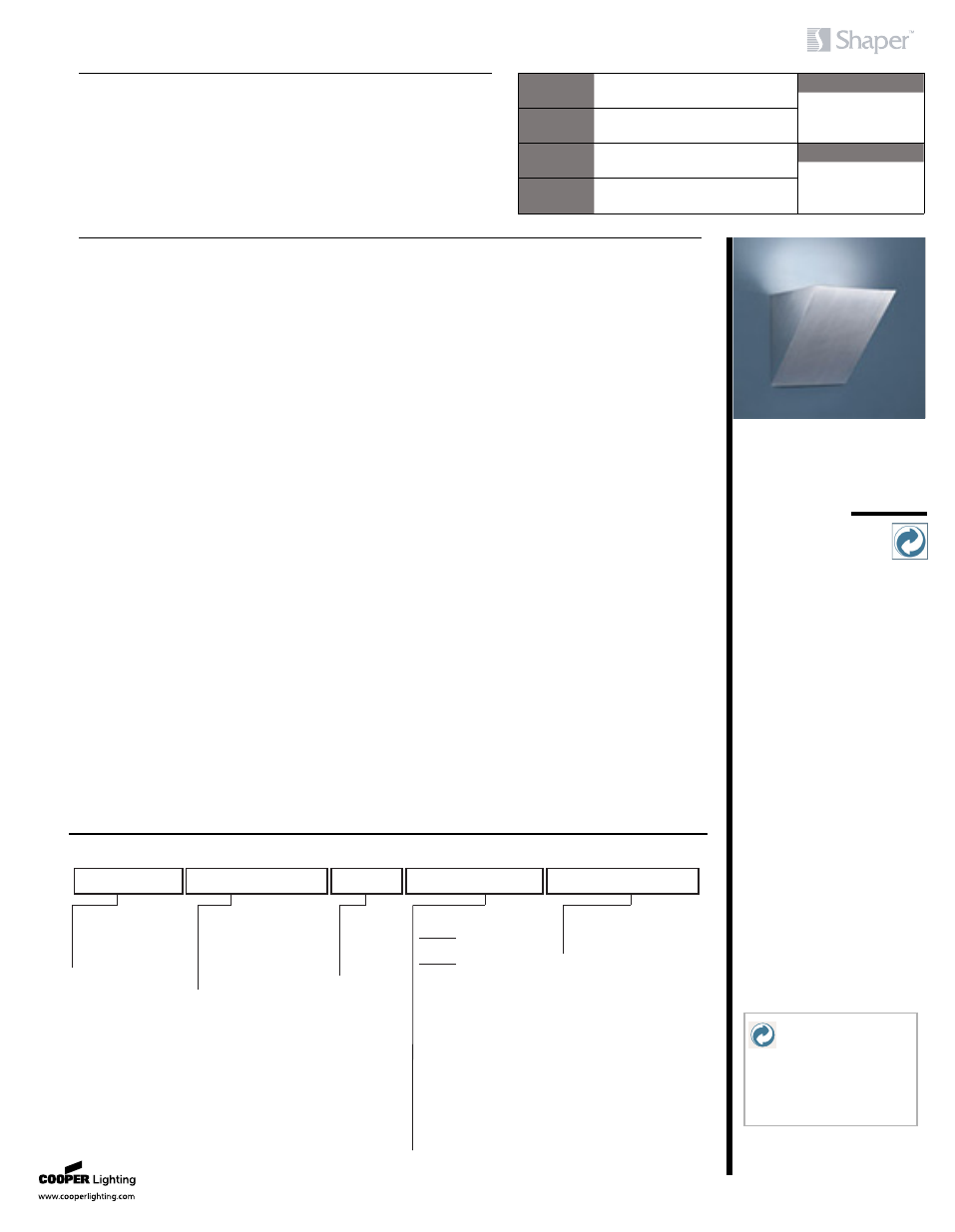

DESCRIPTION
687-WP Classic Geometric Wedge shape with indirect illumination.
Material
Painted aluminum or solid bronze.
Internal lamp assembly is cast
aluminum. Clear acrylic lense (CFL)
or clear tempered glass lense (INC
& MH).
Finish
Natural bronze or two component
polyurethane paint, 2.5 mil
nominal thickness for superior
protection against fade and wear.
Standard: Natural Bronze (NBZ)
[Sustainable Design]. Note: Bronze
will weather to a dark bronze
patina. Premium: Black (BK), Grey
(GY), White (WH), Dark Platinum
(DP), Graphite Metallic (GRM),
Silver Metallic (SM), Gold Metallic
(GM), Bronze Metallic (BM),
Verdigris (VG), Lacquered Satin
Chrome (SCL), Lacquered Satin
Nickel (SNL) or Custom Color (CC).
Optics
Refer to www.shaperlighting.com
for complete photometrics.
Ballast
Integral electronic HPF, multi-volt
120/277V (347V Canada), thermally
protected with end-of-life circuitry
to accommodate 26W, 32W or 42W
lamps. Integral metal halide ballast
is electronic HPF multi-volt
120/277V for the specified lamp
wattage. 347V ballast for metal
halide - Contact factory.
Lamp/Socket
One (1) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin triple tube
CFL lamp, one (1) 50W or 100W
ED-17 metal halide lamp or one (1)
150W A-19 lamp. CFL socket
injection molded plastic. Metal
halide socket is ceramic
pulse-rated, 4KV. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
Installation
Supplied with a mounting back for
a standard 4" J-box or stucco ring.
Optional rear (through wall) feed
conduit mounting. Surface mount
conduit power feed Contact
factory.
Options
Rear (through wall) Feed Conduit
Mounting (C). Energy Star Rating -
Consult factory.
Labels
U.L. and C.U.L. approved for wet
location.
Modifications
Shaper's skilled craftspeople with
their depth of experience offer the
designer the flexibility to modify
standard exterior wall luminaires
for project specific solutions.
Contact the factory regarding scale
options, unique finishes,
mounting, additional
materials/colors, or decorative
detailing.
687-WP SERIES
Exterior Wall Luminaire
Classic Geometric Wedge
SUSTAINABLE
DESIGN
Refer to the Icon Legend
Link on shaperlighting.com.
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
Sample Number: 687-WP-MH/1/70-277V-BK
687-WP = Classic
Geometric
Series
Notes:
CFL and MH only. 1
2
Available with CFL only.
Premium TGIC polyester powder coat paint,
2.5 mil nominal thickness for superior
protection against fade and wear.
Bronze will weather to a dark bronze patina.
3
4
Lamp
CFL/1 (26/32/42W-Triple)
INC/1/150
MH/1/50
MH/1/70
Voltage
120V
277V
1
347V 2
Finish
=Natural Bronze
= Black
= Bronze Metallic
Standard
NBZ
BK
BM
CC =
Premium
DP = Dark Platinum
GM = Gold Metallic
GRM = Graphite Metallic
GY = Grey
SCL = Lacquered Satin Chrome
SM = Silver Metallic
WH = White
SNL = Lacquered Satin Nickel
VG = Verdigris
3, 4 Options
C =Rear (through wall)
Feed Conduit Mounting
Custom Color
Wedge
