Vixen STARBOOK-S - Manual (Page 6)

6

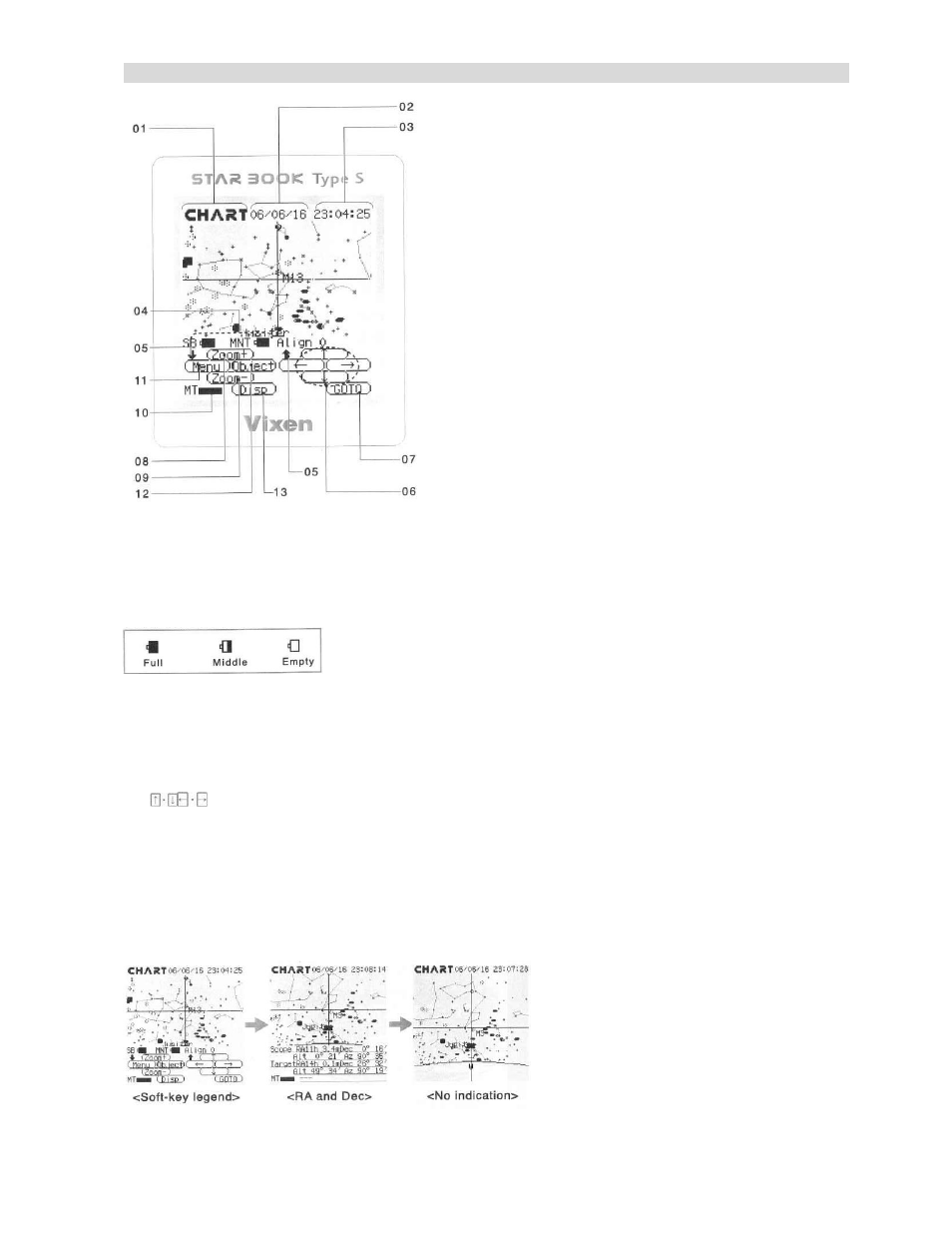

Legend on the Screen
01. Mode Display: SCOPE Mode and CHART Mode
02. Date
03. Time
04. Battery Level: Varies according to a level of discharge.
The battery levels are displayed individually for both the STAR BOOK-S and the Mount.
Note: battery level indicator may show “Empty” when the controller cable is not connected
securely.
05. Up Arrow / Down Arrow
Up arrow: A group of on-screen soft-keys corresponding to the upper buttons.
Down arrow: A group of on-screen soft-keys corresponding to the lower buttons.
06
: Directional keys and cursor movement
07. Select, Automatic Slewing and changing Chart / Scope Modes.
08. Zoom+: Zoom in the screen
09. Zoom-: Zoom out the screen.
10. MT: Speed of scrolling the screen / zooming visually.
11. Menu: Open the System Menu dialog box to change various settings.
12. Align: Set up directions (alignment) for automatic slewing.
13. Disp: On screen information changes each time pressed.
