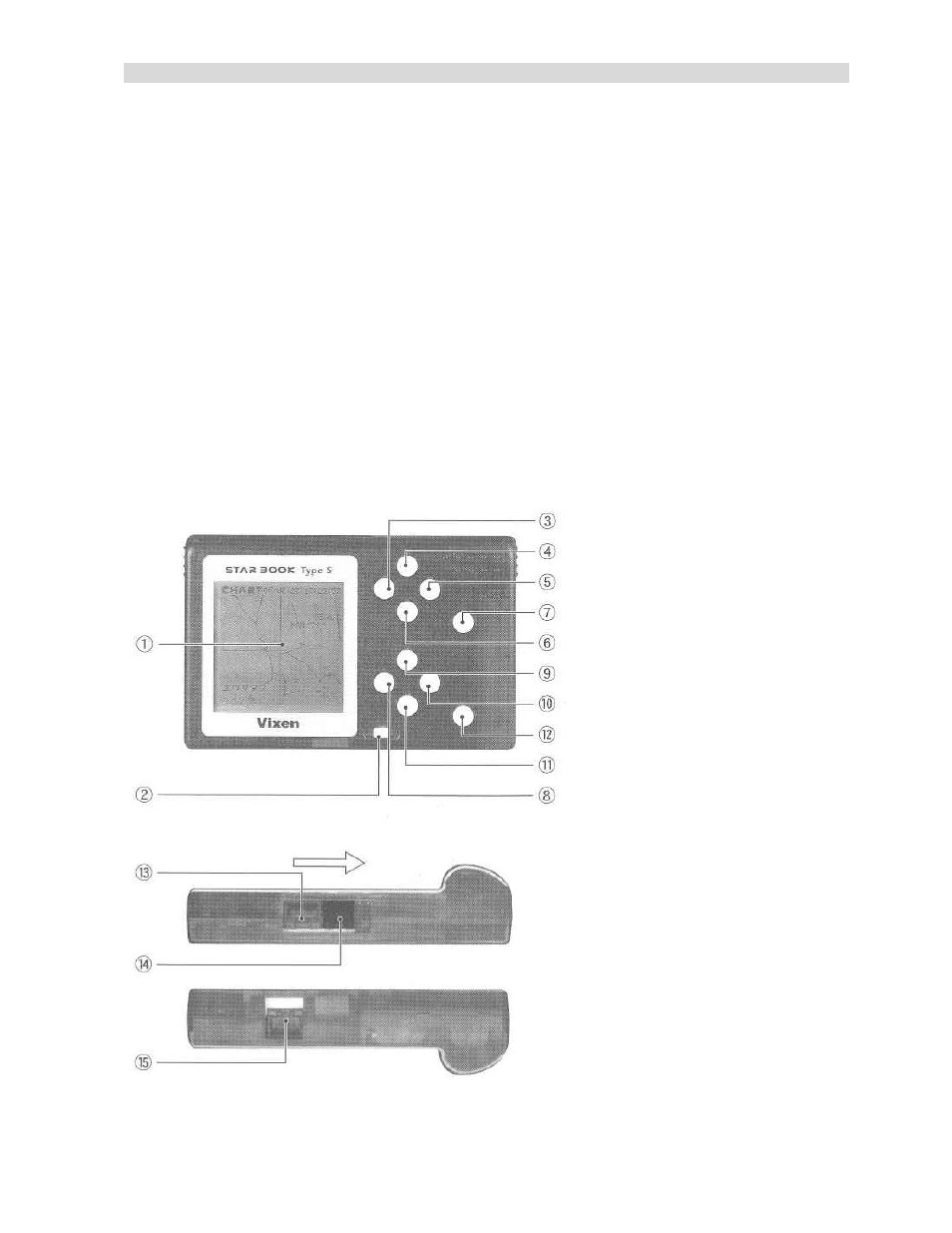

STARBOOK-S Hand Controller
01. TN 2.6-inch monochrome LCD screen
02. Power switch

The upper buttons(Right side on-screen soft-key legend): Enter, Cursor movement, Scroll
03. LEFT

(Moves the cursor left -The screen scrolls toward right.)

04. UP

(Moves the cursor up.-The screen scrolls down.)

05. RIGHT

(Moves the cursor right.-The screen scrolls toward left.)

06. DOWN

(Moves the cursor down.-The screen scrolls up.)

07. ENTER

(Changing Chart / Scope modes)

The lower buttons(Left side on-screen soft-key legend): Alignment, Zoom
08. MENU

(Accesses various settings on the system menu.)

09. ZOOM+

(Zooms in the screen in 8 steps.)

10. ALIGN

(Aligns computer with telescope position.)

11. ZOOM-

(Zooms out the screen in 8 steps.)

12. DISP

(On screen information changes each time pressed.)

13. LAN

LAN connection terminal (10BASE-T) for communication with a PC

14. A.G.

Autoguider port

15. MOUNT

Controller cable connection terminal
