2.
MANUAL USE OF THE
2 POSITION VALVE ACTUATOR
The electric actuator has a control box with a two-position, spring-loaded (normally
off) toggle switch and two LED’s which indicate the valve position. The valve can
be moved from one position to the other by manually moving the toggle switch
toward the light that is not illuminated.
Valco Instruments Co. Inc.
8-32 MOUNTING HOLES
(FOUR PLACES)
HOLES FOR
CLAMP RING
SCREWS
POS A
(LOAD) POS B
(INJECT)
POWER CORD (5 FEET)
MOUNTING BRACKET
REMOTE SWITCHING CABLE
(WITH 5 FOOT EXTENSION)
CONTROL BOX AND
CABLE (4 FEET)
2 AMP FUSE

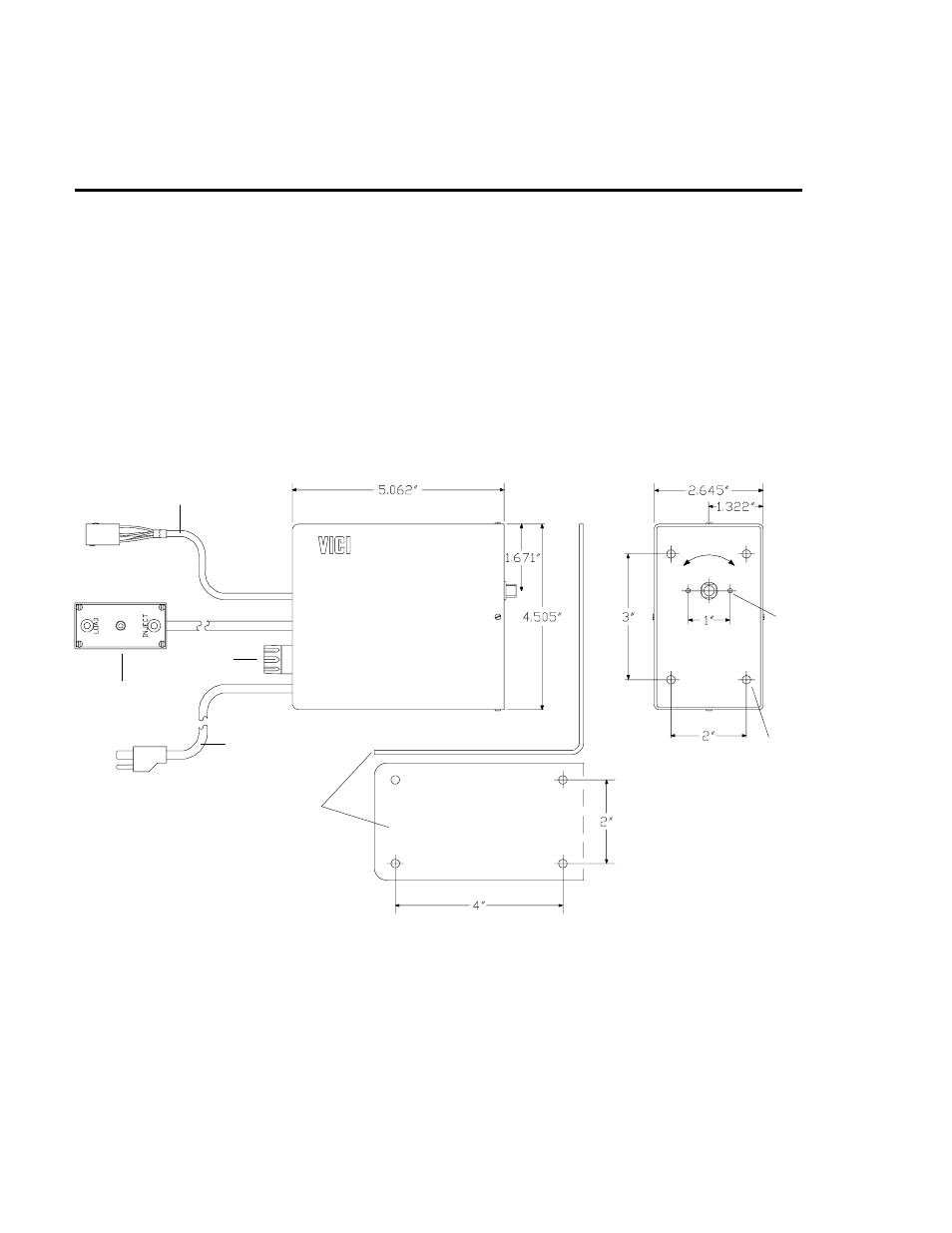

Figure 1: Actuator dimensions
