Lifting EyE kit (W4016700) instaLLation instRUCtions
Assembly Procedure
1. Loosen the M10 x 50 Bolts, M10 Flat Washers, M10 Spring Washers and M10 Nuts with 17mm wrench
that secure the handle assembly and remove the handle assembly and fixings from the base assembly.
Bolt, M10 × 50
Flat Washer, M10
Spring Washer, M10
Nut, M10
Handle Assembly
Art # A-11471

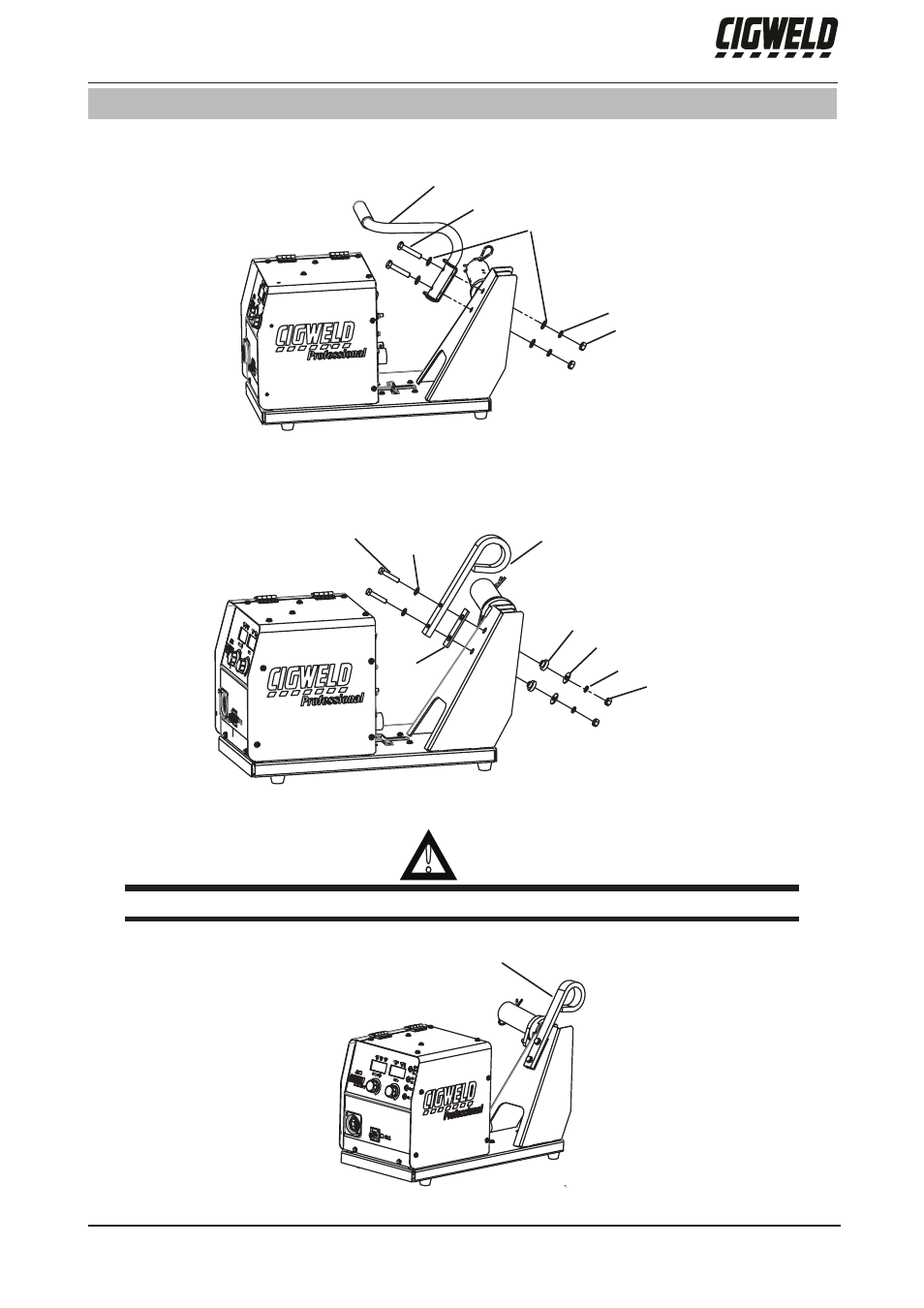

Figure 1 Removing Handle Assembly
2. Use 14mm wrench to secure the lifting eye and insulator plate to the base assembly using the M8 x 40
Bolts, M8 Flat Washers, M8 insulator washers, M8 Spring Washers and M8 Nuts as supplied with this kit.
Lifting Eye
Art # A-11473_AB
Bolt, M8 × 40 Flat Washer
(smaller), M8
Insulator Washer, M8
Flat Washer (larger), M8
Spring Washer, M8
Nut, M8
Insulator Plate
Figure 2 Installing Lifting Eye Kit
!
WARNING
Fully tighten all the fasteners with torque 45~59 N.m.
Refer to the figure below for the assembled lifting eye kit.
Lifting Eye
Art # A-11474_AB
Figure 3 Assembled Lifting Eye Kit
