Manual 0-5265 Rev. AA 1
COOLANT TEMPERATURE CORRECTION KIT
Thermal Dynamics Corporation
82 Benning Street
West Lebanon, New Hampshire, USA 03784
Telephone: (603) 298-5711
Email: [email protected]
www.victortechnologies.com
Manual 0-5291
AC/UC Overtemp Correction Kit
Part Number: 9-7717
Assembly Instructions
General Information
This kit allows for updating the coolant temperature sensing to avoid errors in over temperature readings .
Contents
The following components are included in this kit:
Item Description Catalog Number Quantity
1 Overtemp Correction Harness 9-7717 1
Assembly Procedure
WARNING
Disconnect primary power at the source before performing any inspection or repairs.
Only a qualifi ed technician should perform this procedure.
Determine which Transducer you have now.
1. Remove the right side panel as you face the power supply from the front.

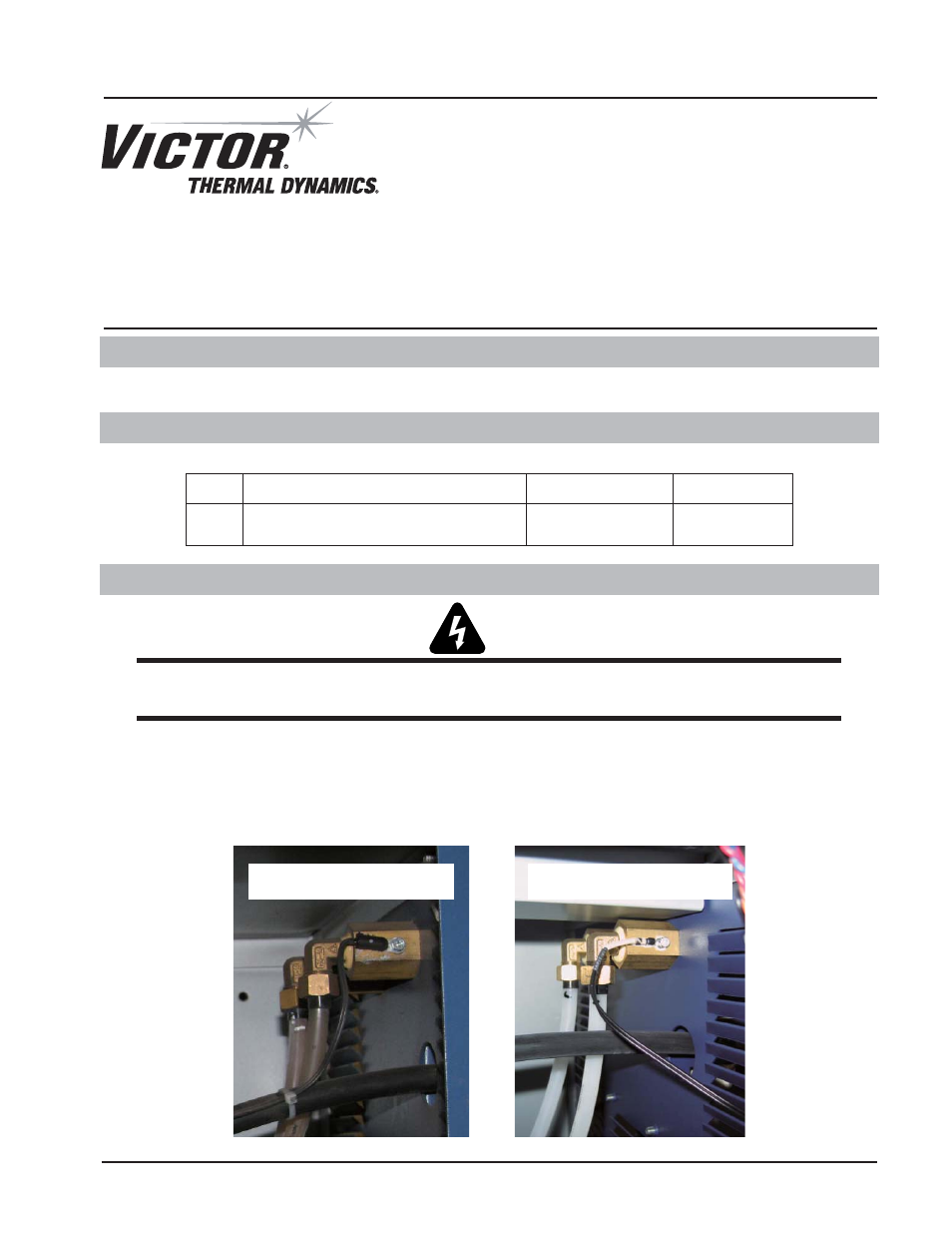

2. Locate the Transducer that is attached by a screw to the brass fi tting on the inside of the rear panel above the
coolant tank. If you have the larger one shown on the left, you do not need to install this new harness. If you
have the smaller one shown on the right, then you do need to install this new harness kit.
Larger Transducer Smaller Transducer
