Manual 0-2916
General Information
These instructions cover Thermal Dynamics Remote Pen-
dant Kits, Catalog No. 7-3460 and 7-3198. The kits en-
ables the user to control a machine torch with a hand-
held switch.
Depending on the power supply, installation may require
removal of an exterior cover panel for access to the torch
bulkhead panel. Refer to the power supply manual or
torch adapter manual for details on connecting the Pen-
dant to the power supply.
Manual 0-2916
Remote Pendant Kits
Cat. No. 7-3460, 7-3198
Installation Instructions
© 2002 by Thermal Dynamics Corp., Printed in USA
NOTE
Every effort has been made to provide com-
plete and accurate information in this manual.
However, the publisher does not assume and
hereby disclaims any liability to any party for
any loss or damage caused by errors or omis-
sions in this Manual, whether such errors re-
sult from negligence, accident, or any other
cause.

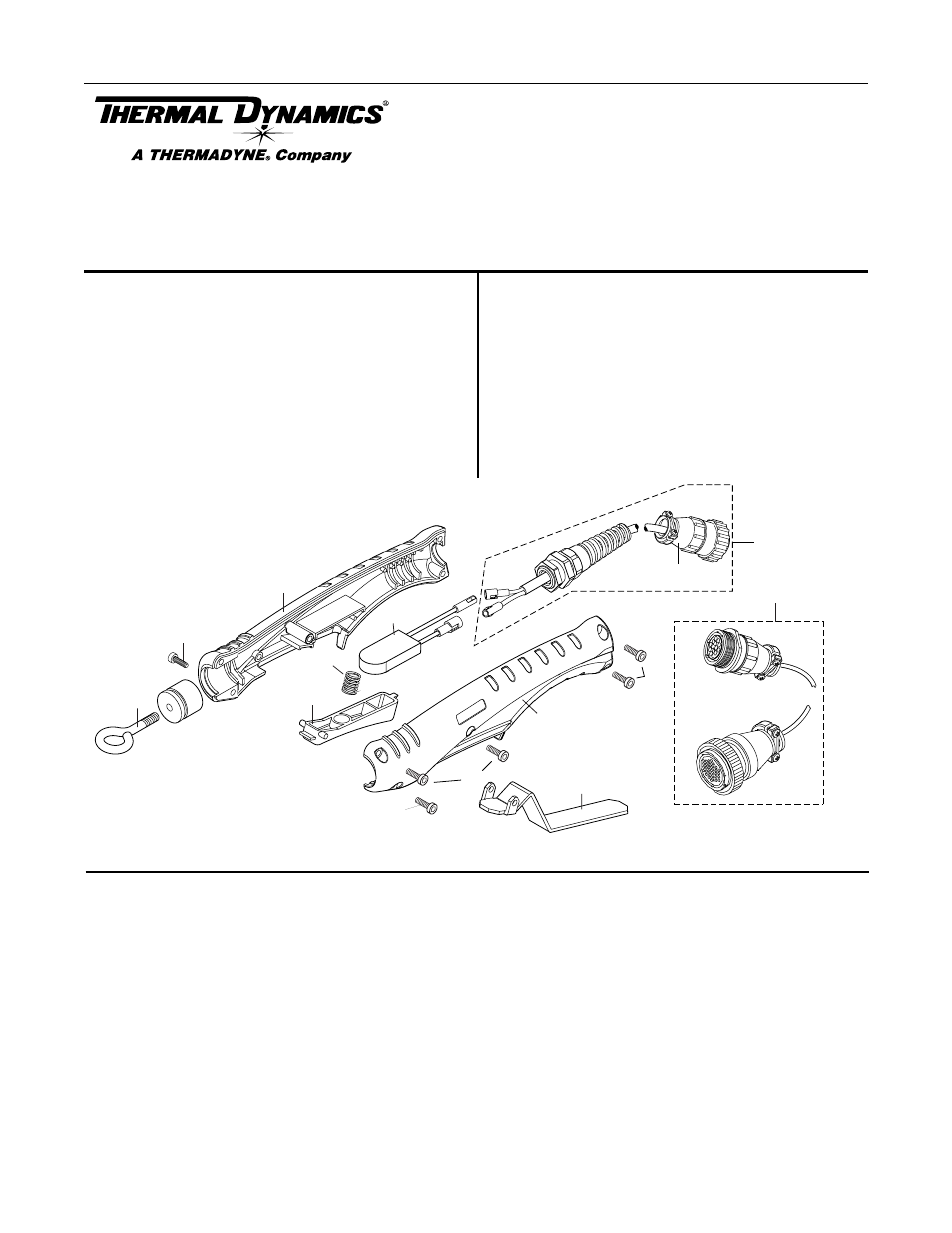

Replacement Parts
Item#
Qty
Description
Catalog #
1
1
1/4" - 20 Eye Bolt
9-3096
2
1
6-32 x 1/4" Cap Screw
See Note
3
1
Handle Kit (Includes Items 5, 6, 7, and 8)
9-8058
4
1
Trigger Guard Kit (Includes Item #2)
9-8418
5
1
Trigger
9-8059
6
1
Spring
9-8061
7
1
Switch Assembly
9-8063
8
4
Cap Screw 6-32 x 1/2"
See Note
9
1
Cap Screw, 6-32 x 5/8"
See Note
10
1
14-Pin Plug
9-3294
11
1
Cord Assembly
9-8144
12
1
Adapter Assembly (supplied only in Kit No. 7-3198)
9-4393
for Merlin 15XC applications with shielded torch leads
Note: Item can be purchased locally.
1
2
4
3
5
6
7
3
8
8
A-03376
9
10
11
12
