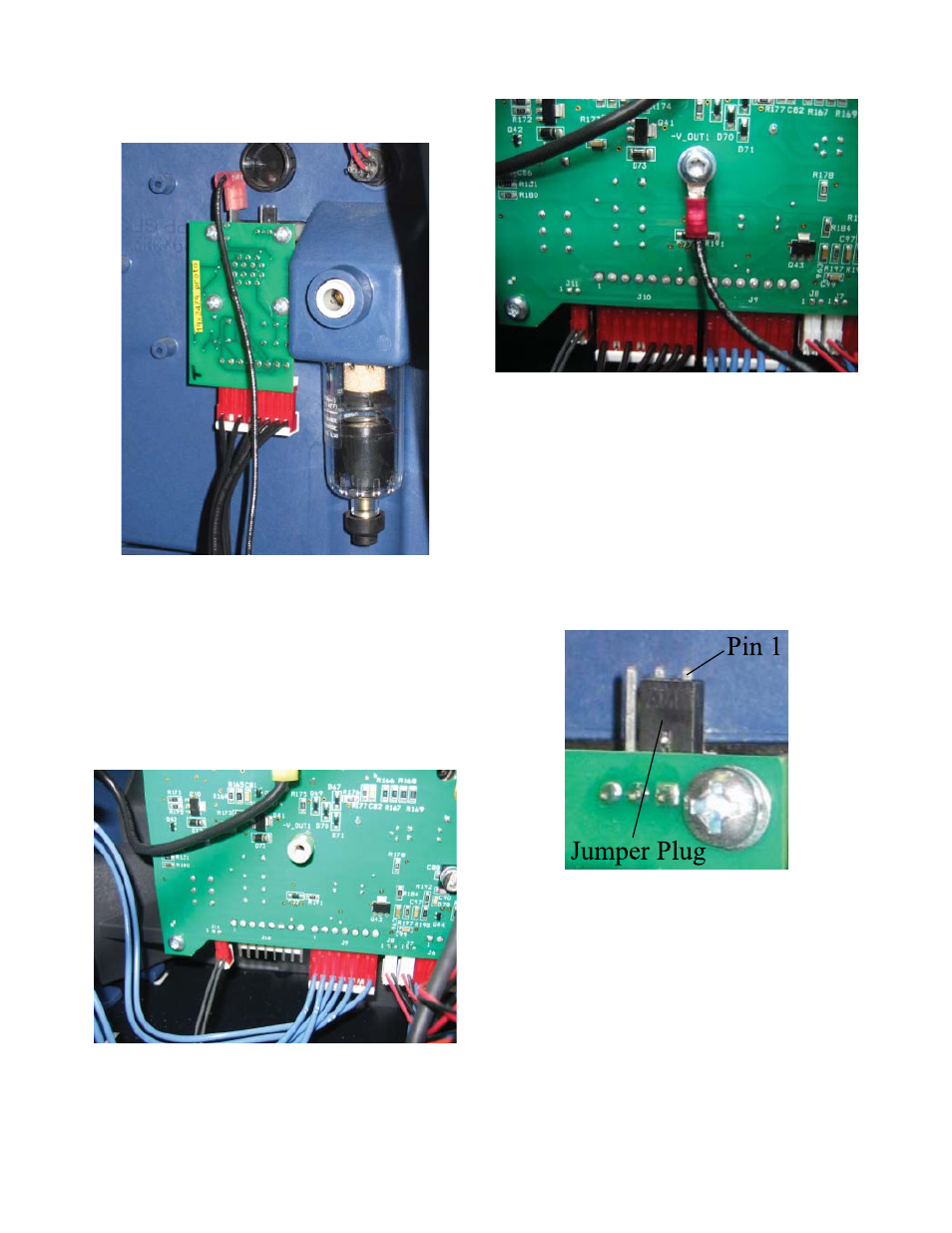

4. Using the two (2) #6-32x3/8 Pan Head Screws, mount
the pcb onto the rear panel, oriented as shown.
4. Route the wire harness wires to avoid being damaged
and connect the wire harness wire with ring terminal
to the Main PCB1 terminal -Vout1 using a M4x10mm
Torx Head Screw.
5. Connect the 8 socket receptacle to the J10 connector
on Main PCB1.
6. There are three options for Divided Arc Voltage signal
supplied from the pcb. This is selected by connecting
the black Jumper Plug on the P1 connector as fol-
lows:
Arc voltage / 16.67
Jumper not installed
Arc voltage / 30
Jumper Pins 1 & 2
Arc voltage / 50
Jumper Pins 2 & 3
