October 6, 2004 2 Manual 0-2771
Torch Control
Connectors
Pilot Lead (+)
Torch Lead Assembly
Negative/Plasma Lead
Art # A-04208
Adapter Fitting
8" Control Connector
Wires with Connectors
To
Po
we
r Supply
(-) Fitting
To
Po
we
r Supply
Control Connector
To
Po
wer Supply
Pilot Connector
Fastons
Joined and
Sleeved Wires

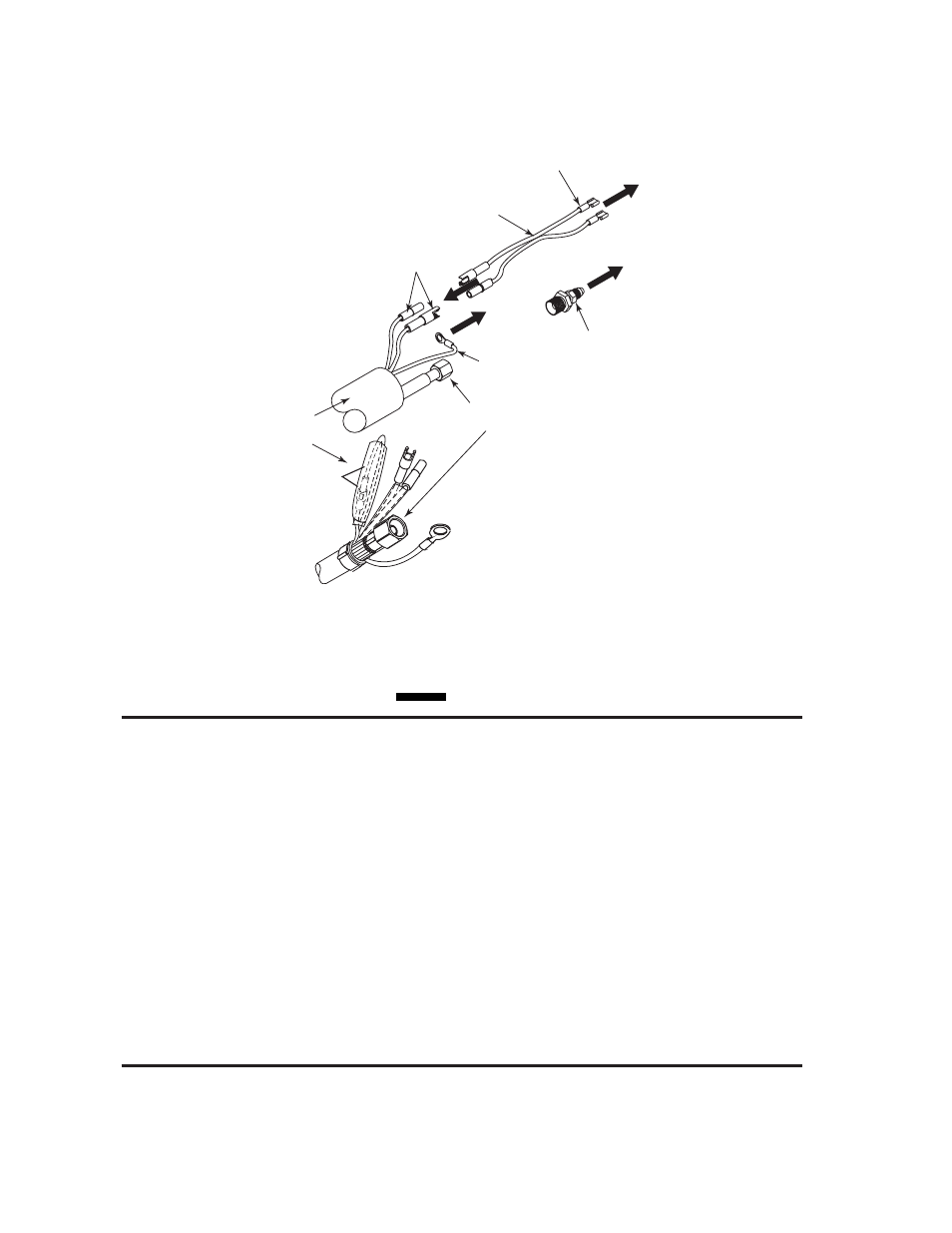

RPT Adapter Connections, Control Connector for PAK-4Xi, 6Xi, 2XT-220 and DynaPak 110 Shown
CAUTION
Refer to the illustration above. Torch leads may include two wires connected with mating connectors and
covered with an insulation sleeve. On these leads the wires must remain covered and connected in hand torch
applications.
7. Connect the Negative/Plasma Lead from the replacement torch to the Adapter Fitting. Slide the protec-
tive boot over the lead connection.
8. Connect the Control Connector Wire (see NOTE) to the two mating connectors on the replacement torch
leads per one of the following procedures:
For PAK-4Xi, 6Xi, 2XT-220 and DynaPak 110:
Connect the Control Connector Wires (8” long), with two connectors, to the two mating connectors on
the replacement torch leads. Refer to Illustration.
For Pak Master 25 & 38XL, EconoPak 25 and Drag-gun 38:
Connect the Short Control Connector Wire (3” long), with two connectors, to the two mating connec-
tors on the replacement torch leads.
NOTE
For Mechanized Systems refer to the Torch Control Cable Wiring Diagram in the Manual supplied with the
RPT Torch.
9. Connect the fastons of the Control Connector Wires to the Power Supply.
