Handbook for the SXV-H9 Issue 1 June 2002
28
flat field’ in the ‘Merge’ menu. The result should be an image with very few signs of
the original artefacts and you can then process it in the normal way.
*********************************************************************

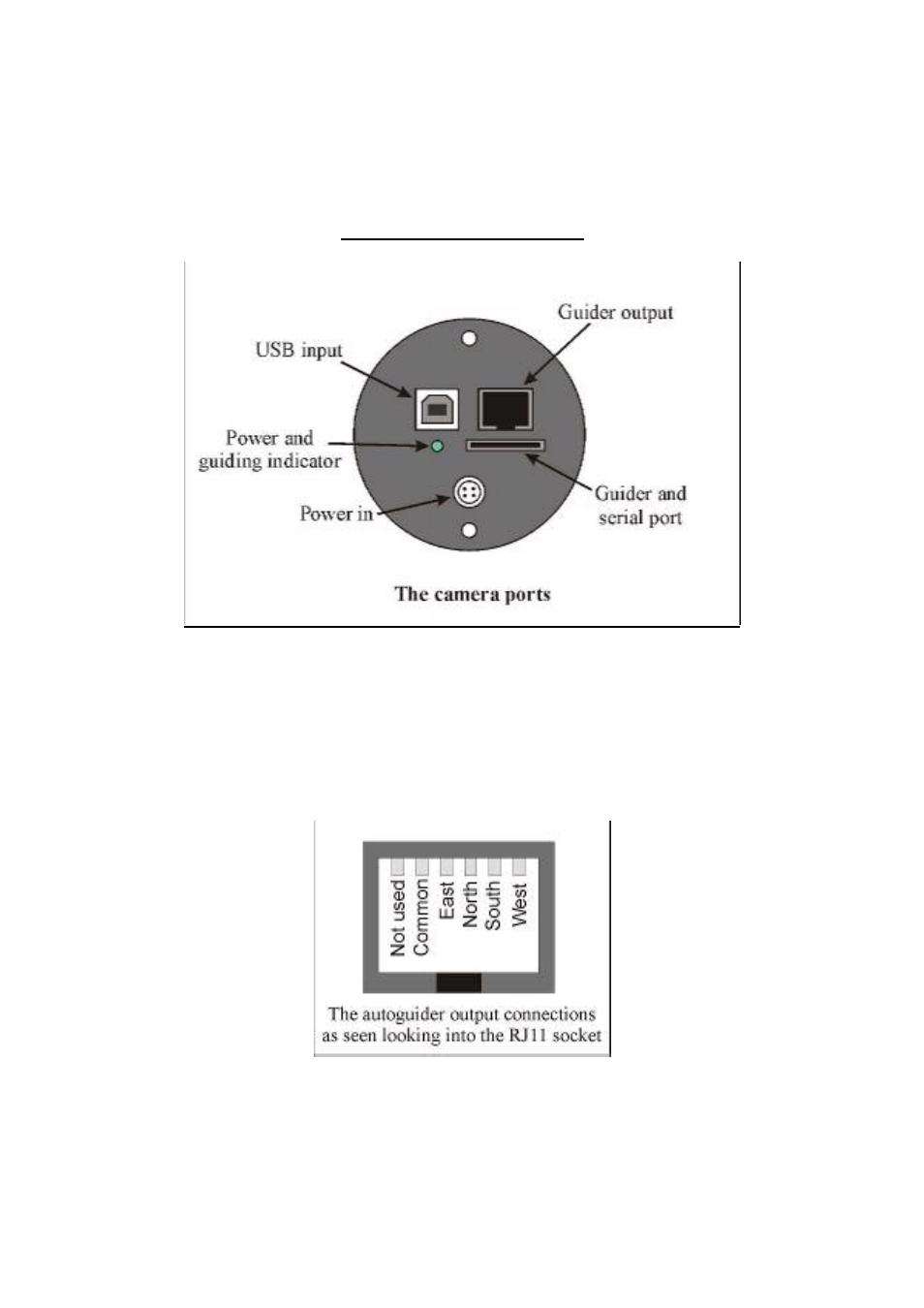

The SXV-H9C accessory ports
The SXV-H9C is provided with two ports for use with accessories. The Autoguider
output port is a 6 way RJ11 socket, which is compatible with the standard autoguider
input of most telescope mounts. It provides 4 active-low opto-isolator outputs and a
common return line, capable of sinking a minimum of 5mA per output. This socket
may be used for telescope control if the SXV-H9C is employed as an autoguider, but
is primarily intended to be the control output for the optional add-on autoguider
camera head, available for use with the SXV-H9C.
The high density parallel port socket provides both control and power for the add-on
autoguider, but also includes a pair of serial ports for use with other devices.
*********************************************************************
