Handbook for the SXVR-H36 Issue 1 June 2009

1

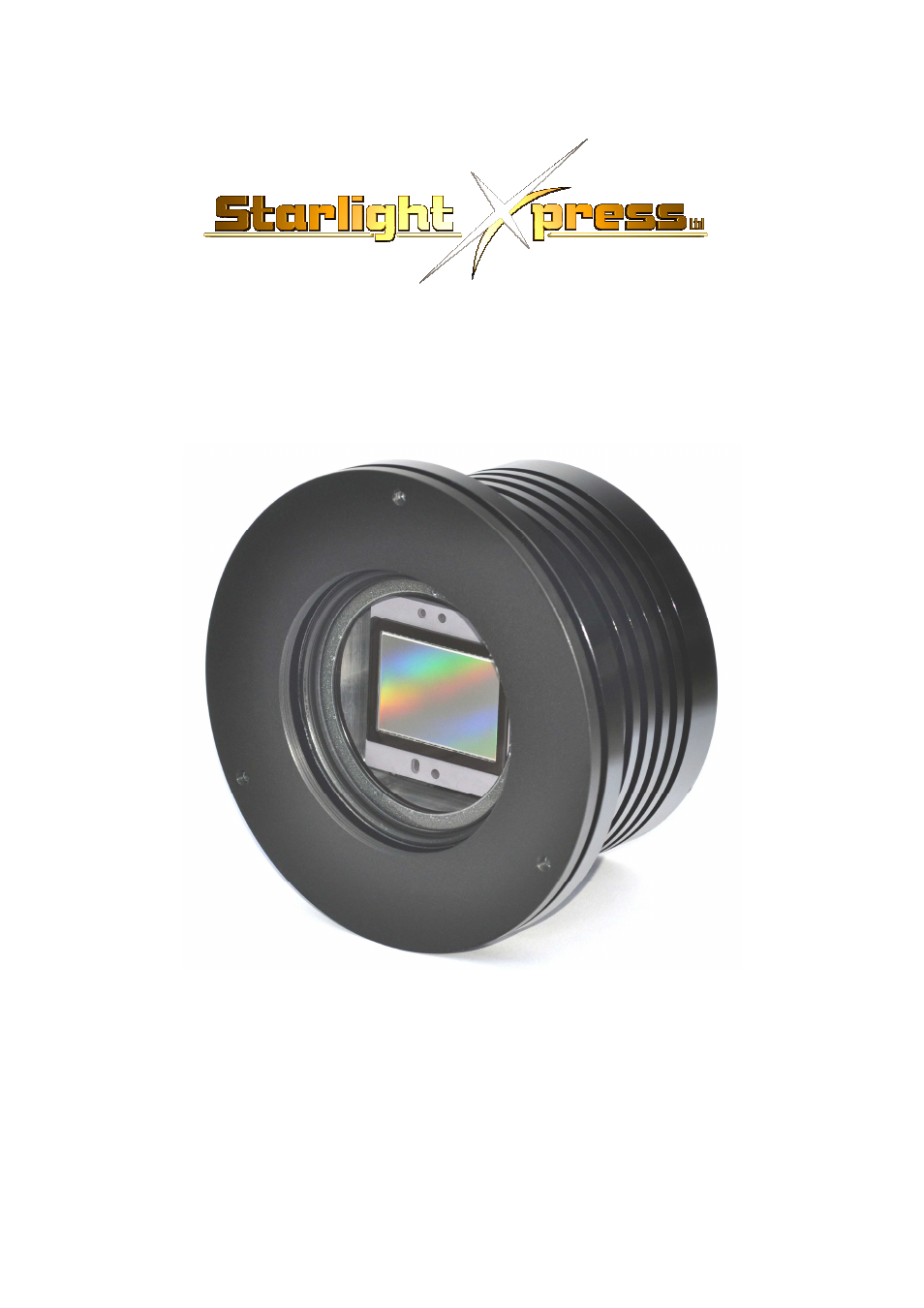

SXVR-H36

CCD camera user manual


Thank you
for purchasing a Starlight Xpress CCD camera. We hope that you will be
very satisfied with its performance. The SXVR-H36 is a very large format, high-
resolution cooled CCD camera, especially designed for astronomical imaging. The
SXVR-H36 uses a Kodak KAI16000 Interline CCD, with

4872(H) X 3248(V)

pixels

in a 36.1mm x 24.05mm active area. The use of high performance microlenses on the
CCD surface gives the greatest possible throughput of light to the pixels and the
resulting QE is very good over the entire visible spectrum. Our new ‘R’ type USB2
