To setup a communication system follow these steps.
1. Connect the 552 Sound Mixer’s headphones to the 1/4-inch headphone jack.
2. Connect the Boom Operator’s headphones to the 3.5 mm headphone jack.
3. Enter the Setup Menu. Press and hold the Battery Check button then press the Headphone Controller.
4. Navigate to the Setup Menu Function Talk Back (0 LED on the Left meter). Turn the Headphone Con-
troller to move through Setup Menu Functions. SVEN announces each function as you step through the
menu.
5. Enter the Setup Menu Function Talk Back (0 LED). Press the Headphone Controller to enter a function.
6. Navigate among the available options. SVEN announces each option as you step through the menu.
7. Select the option best suited for your particular application. Press the Headphone Controller to select an
option. This will exit the Setup Menu Function.
8. Exit the Setup Menu. Press any key other than the Headphone Controller to exit the Setup Menu.
When in Talk Back mode, the 3.5 mm headphone jack has its own dedicated gain. To set levels, hold
the Slate switch and turn the Headphone Controller. In Talk Back mode, press and hold the Battery
Check button and the Slate switch to use the slate as an “all call”. This temporarily returns the Slate
Mic to normal operation. That is, regular program audio will be muted and the slate mic signal will
be sent to all outputs. If the slate mic is disabled in the Setup Menu, the “all call” is also disabled.

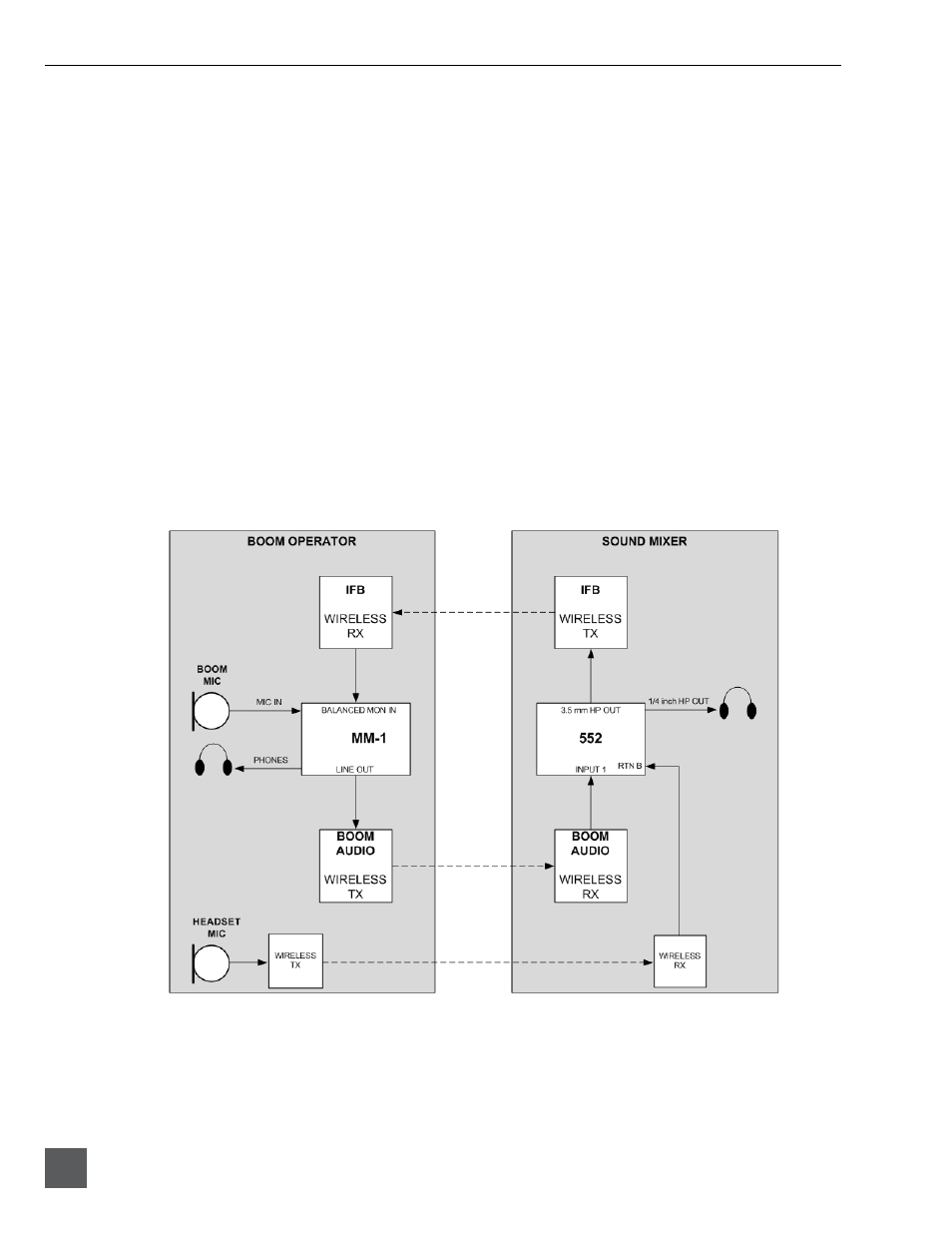

The following diagram illustrates a wireless Talk Back setup using a Sound Devices MM-1.
